A201.63X3.15
A201.63X3.15
A201.63X3.15
A201.63X3.15

A201.63X3.15

UGC DOR5969881
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.20 CAD - $15.20 CAD
$15.20 CAD
$15.20 CAD - $15.20 CAD
$15.20 CAD

Vendu en lots de : 1

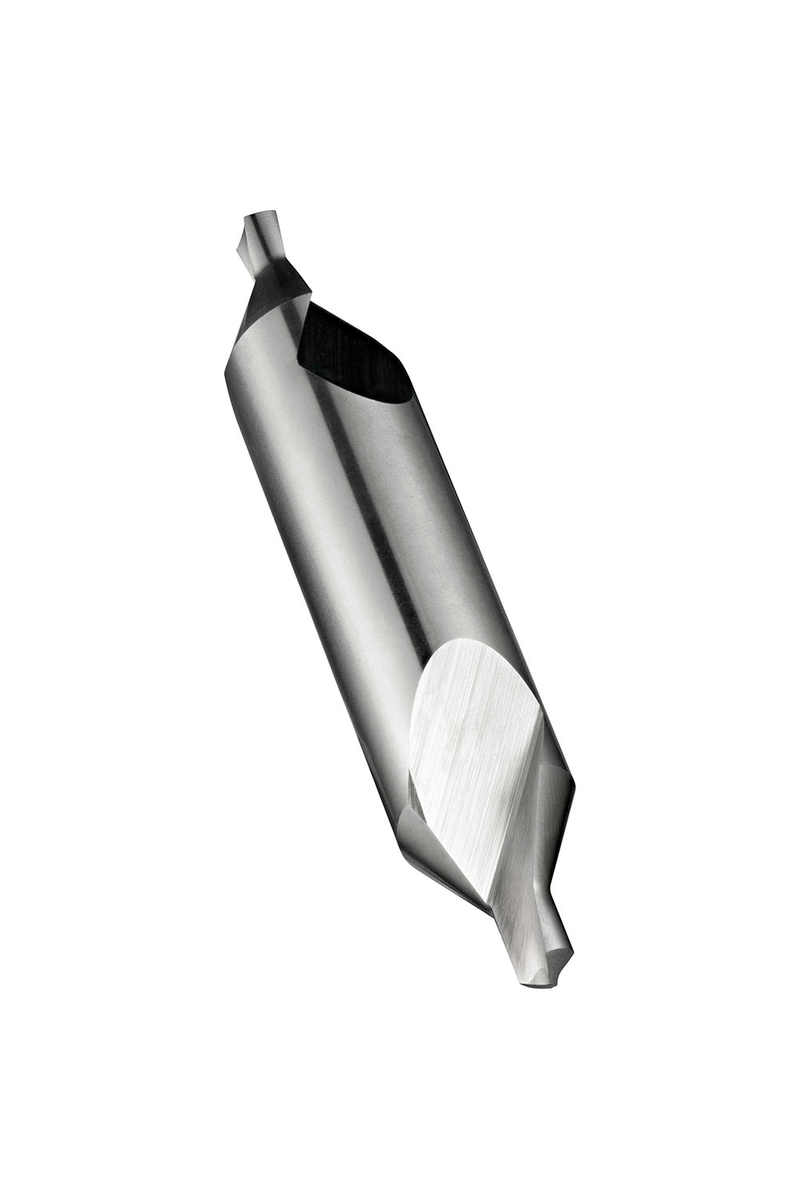

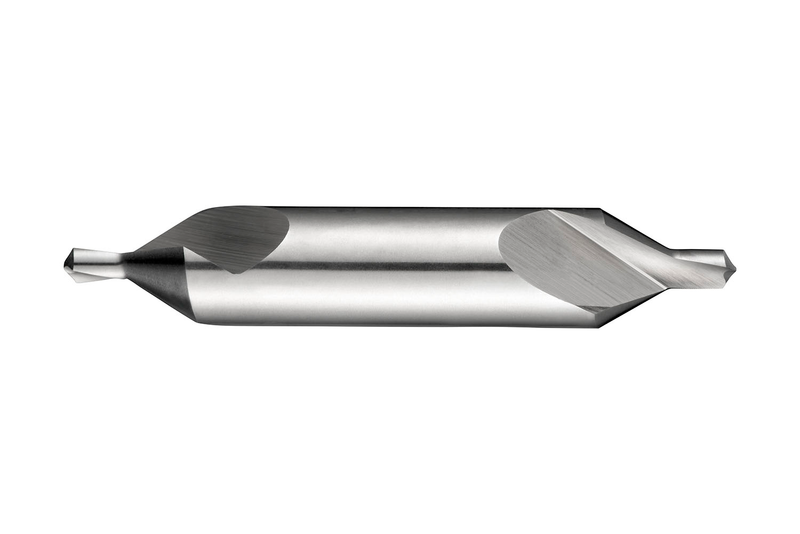

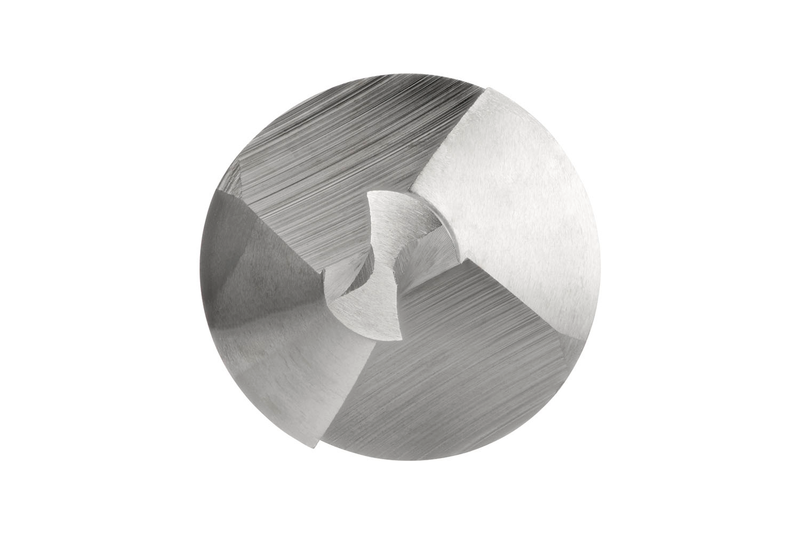

Foret à centrer (combiné perçage et chanfreinage) à forme conique droite de 60°, double embout et corps cylindrique, diamètre de perçage de 0,63mm, diamètre du corps de 3,15mm et longueur totale de 20mm, selon la norme DORMER pour la réalisation de trous de centrage normalisés selon DIN 332 partie 1 forme A, en acier rapide (HSS) et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI)A201,63X3,15
Product Name (ISO)A201.63X3.15
GradeLumineux
Product Number5969881
Product FamilyA201

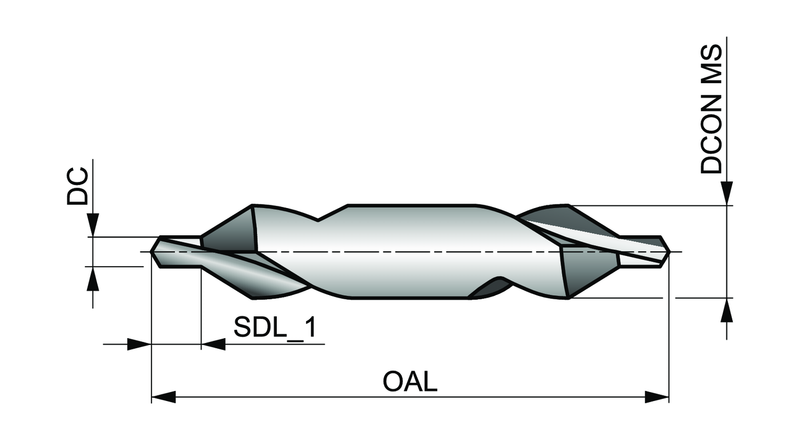

Dimensions
Cutting Diameter — in (DC)0.0248"
Cutting Diameter — mm (DC)0.63 mm
Overall Length — in (OAL)0.7874"
Overall Length — mm (OAL)20.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Drill Point Angle (SIG)122°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number215081
EAN7320760215081
File Type Download
A201.63X3.15 — Line Drawing PDF Download
