UGC DOR5969885
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.81 CAD - $10.81 CAD
$10.81 CAD
$10.81 CAD - $10.81 CAD
$10.81 CAD

Vendu en lots de : 1

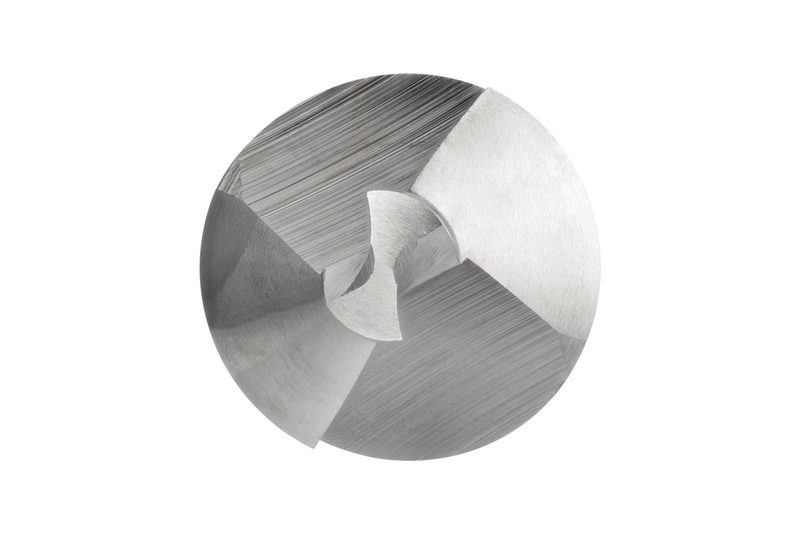

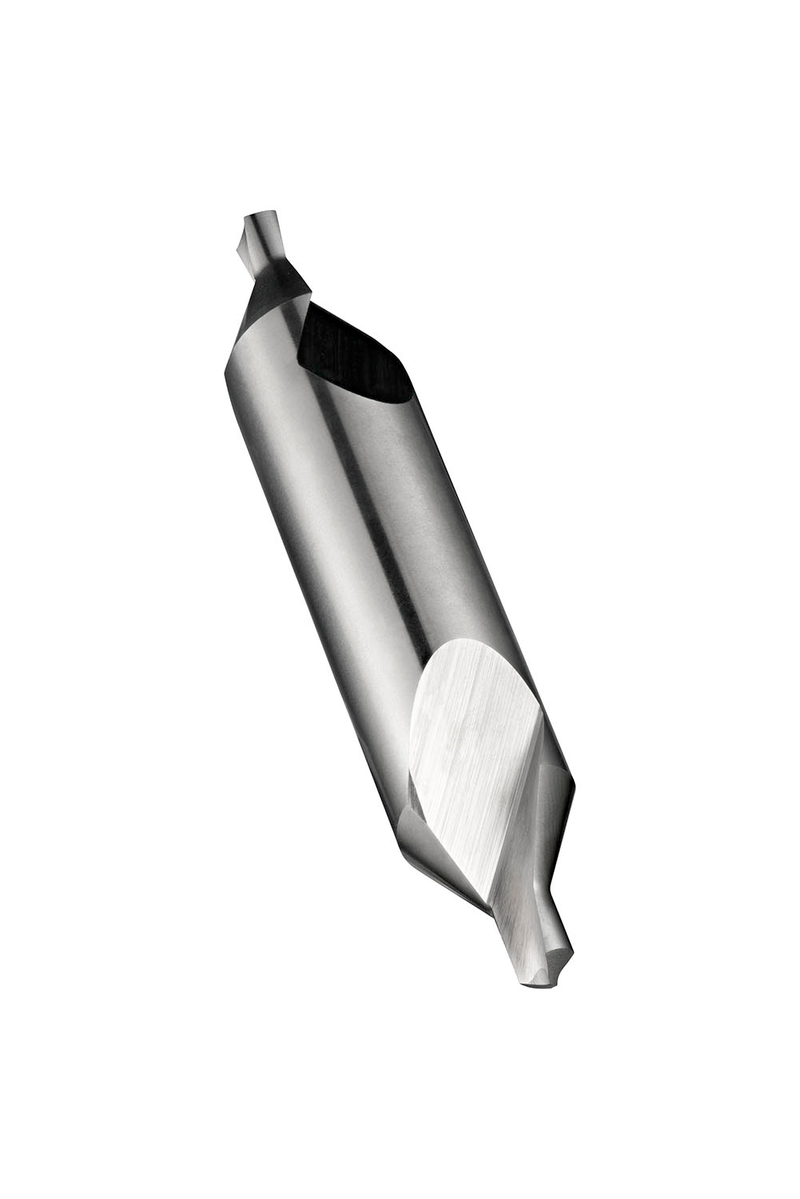

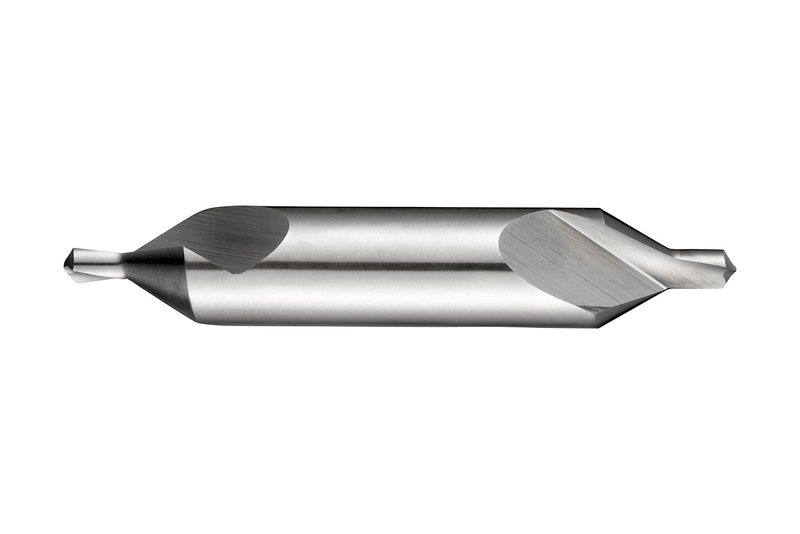

Foret à centrer (combiné foret et fraise à centrer) avec forme conique droite à 60°, double extrémité et corps cylindrique, diamètre de foret de 0,75 mm, diamètre de corps de 3,50 mm et longueur totale de 35 mm, selon la norme DORMER pour produire des trous de centrage normalisés selon DIN 332 partie 1 forme A, en acier rapide (HSS) et finition brillante pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI)A201.75X3.5
Product Name (ISO)A201,75X3,5
GradeLumineux
Product Number5969885
Product FamilyA201

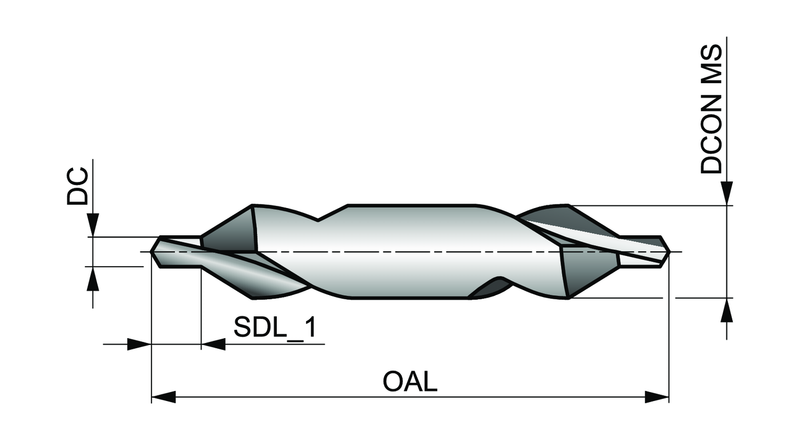

Dimensions
Cutting Diameter — in (DC)0.0295"
Cutting Diameter — mm (DC)0.75 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)122°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number215098
EAN7320760215098
File Type Download
A201.75X3.5 — Line Drawing PDF Download
