A55311.0
A55311.0
A55311.0
A55311.0

A55311.0

UGC DOR5970005
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.21 CAD - $218.21 CAD
$218.21 CAD
$218.21 CAD - $218.21 CAD
$218.21 CAD

Vendu en lots de : 1

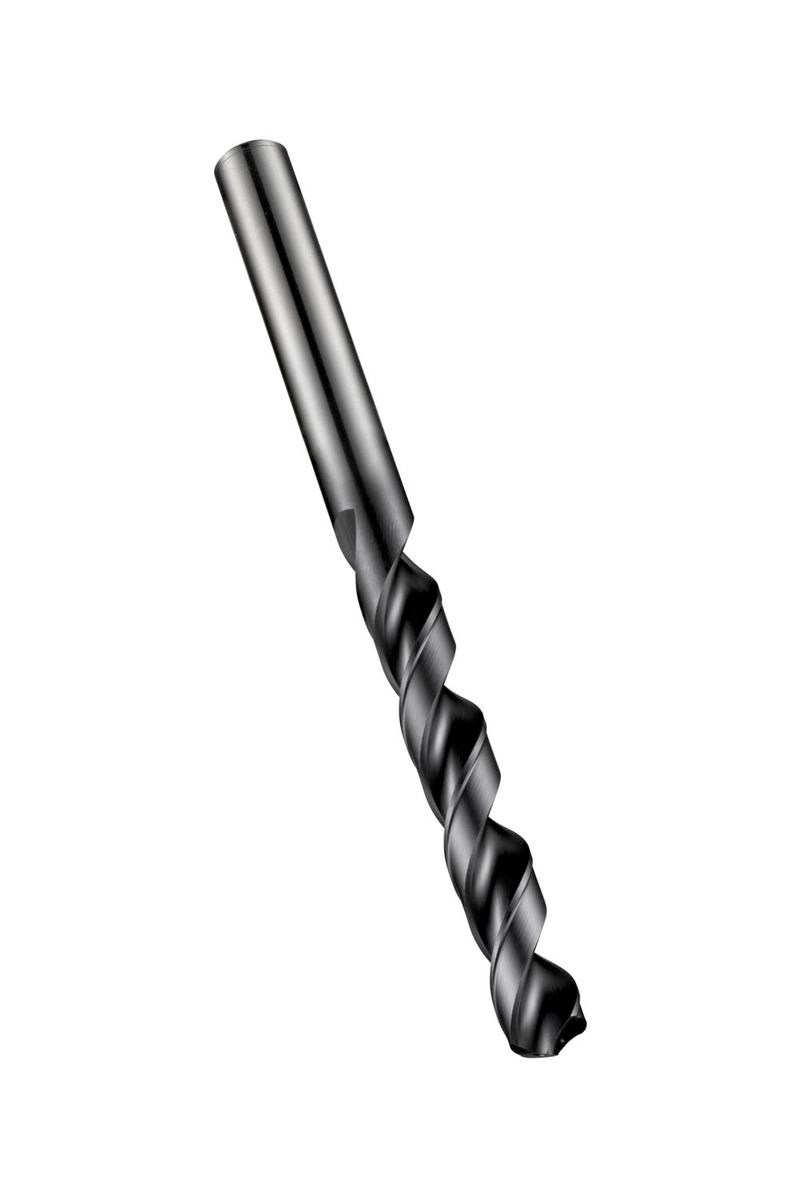

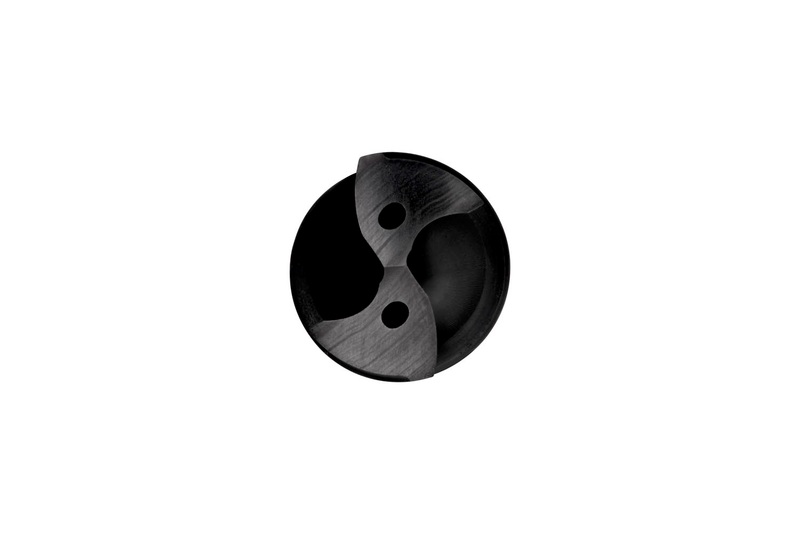

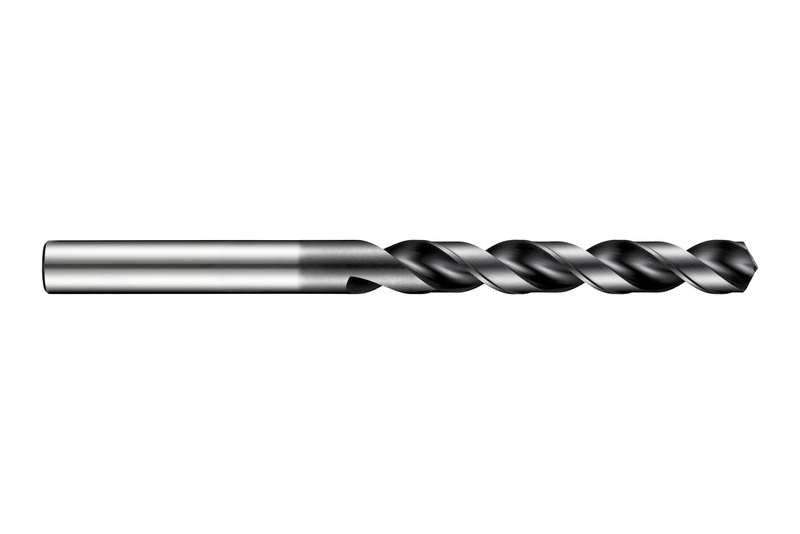

Foret haute performance avec queue cylindrique DIN 6535HA NC, diamètre 11 mm avec une longueur totale de 150 mm et une longueur de coupe de 94 mm selon la norme DORMER avec une pointe conique de 130°, HSS-E à base de cobalt avec revêtement supérieur TiAlN par trous de lubrification pour le perçage de 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A55311.0
GradeTiAlN/Sommet
Product Number5970005
Product FamilyA553

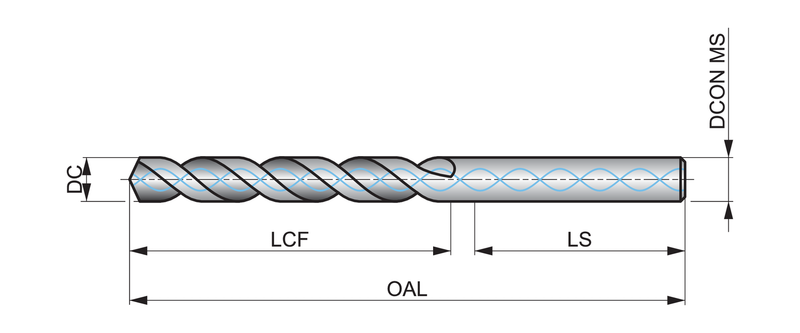

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number390849
EAN7320760390849
File Type Download
A55311.0 — 3D Model STP Download
A55311.0 — Line Drawing PDF Download
