A55312.0
A55312.0
A55312.0
A55312.0

A55312.0

UGC DOR5970020
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.21 CAD - $218.21 CAD
$218.21 CAD
$218.21 CAD - $218.21 CAD
$218.21 CAD

Vendu en lots de : 1

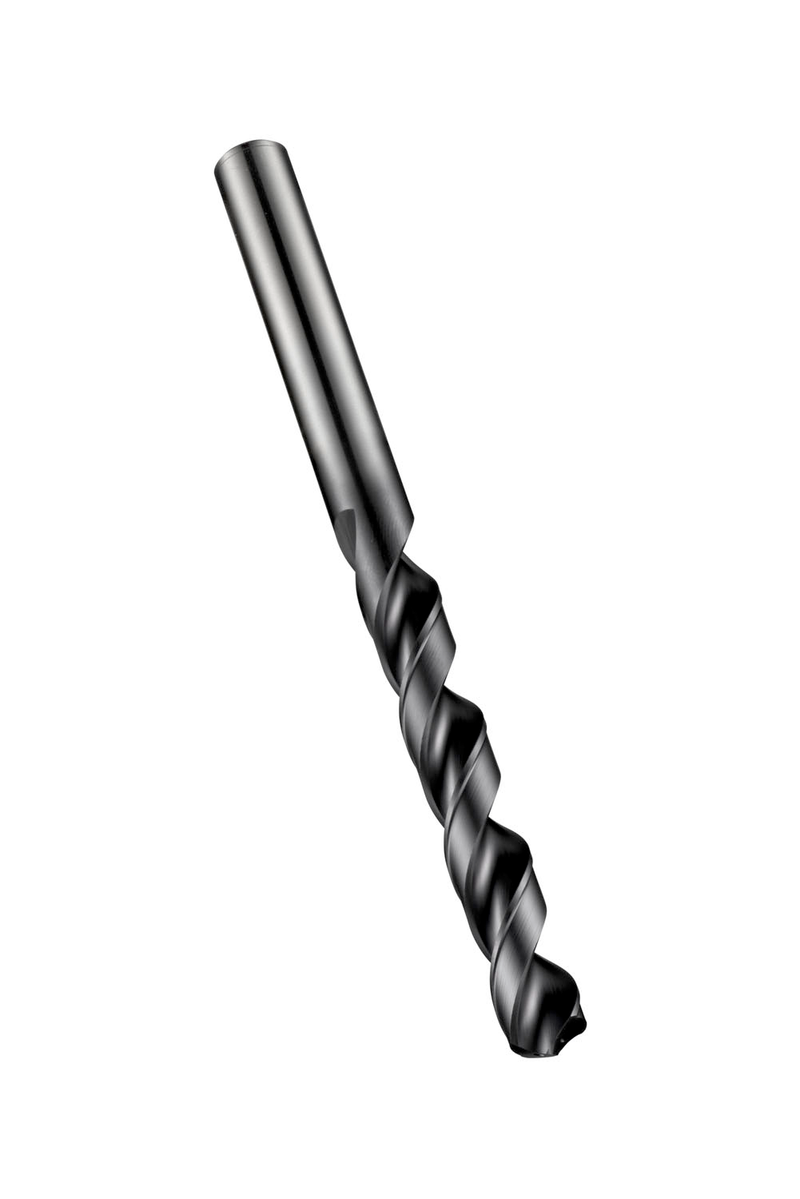

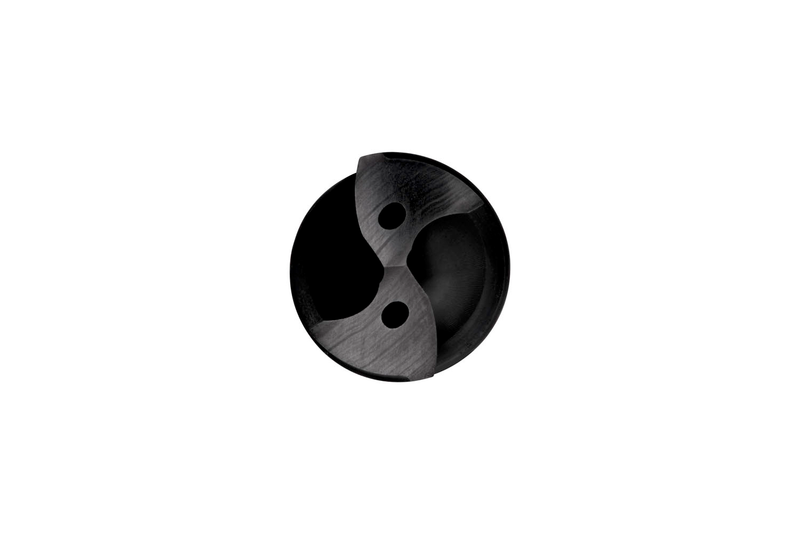

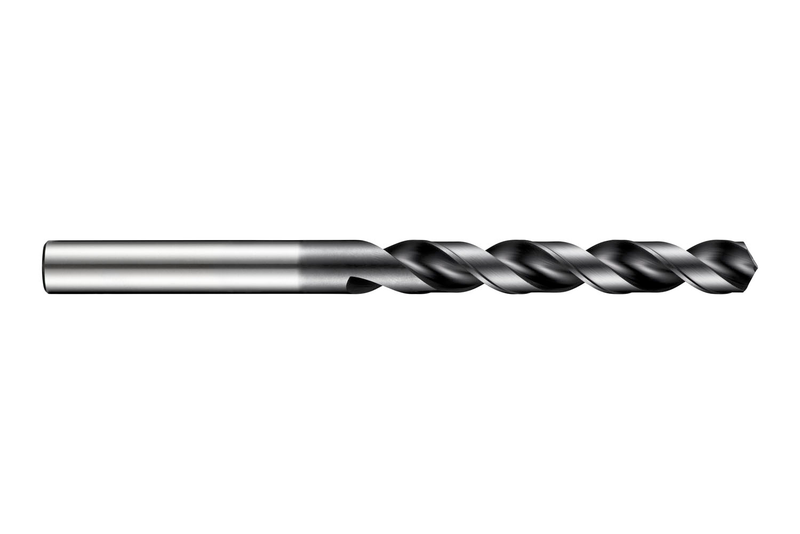

Foret haute performance avec queue cylindrique NC DIN 6535HA, diamètre 12mm avec une longueur totale de 150mm et une longueur de coupe de 94mm selon la norme DORMER, avec pointe en hélice 130°, HSS-E à base de cobalt avec revêtement TiAlN, arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A55312.0
GradeTiAlN/Top
Product Number5970020
Product FamilyA553

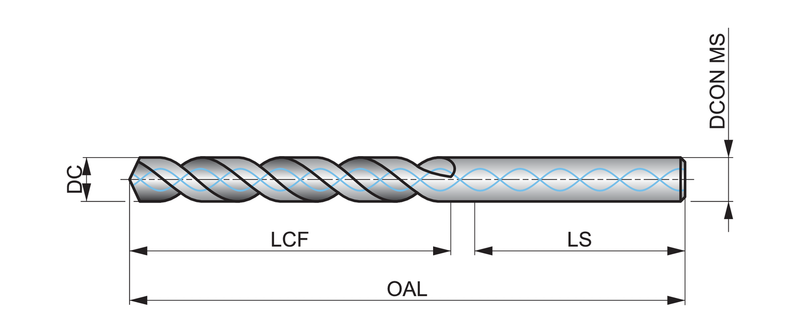

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number390870
EAN7320760390870
File Type Download
A55312.0 — 3D Model STP Download
A55312.0 — Line Drawing PDF Download
