UGC DOR5970058
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$287.86 CAD - $287.86 CAD
$287.86 CAD
$287.86 CAD - $287.86 CAD
$287.86 CAD

Vendu en lots de : 1

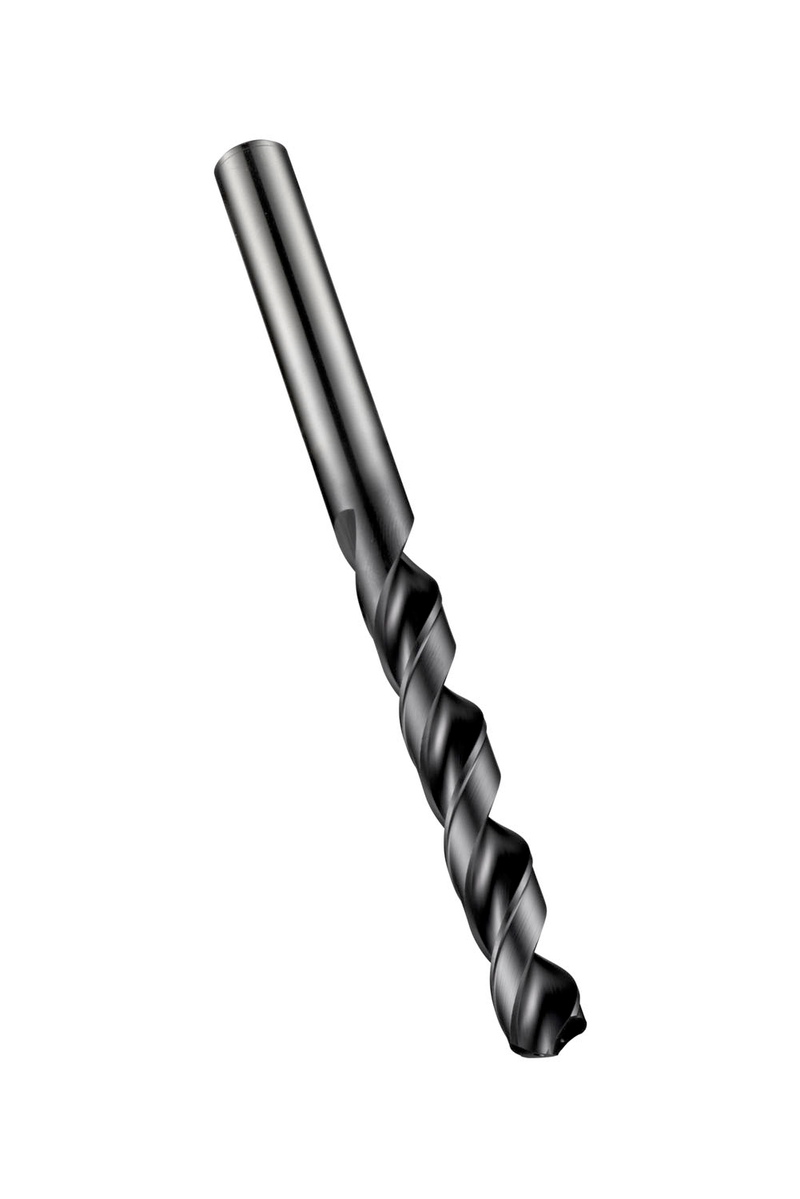

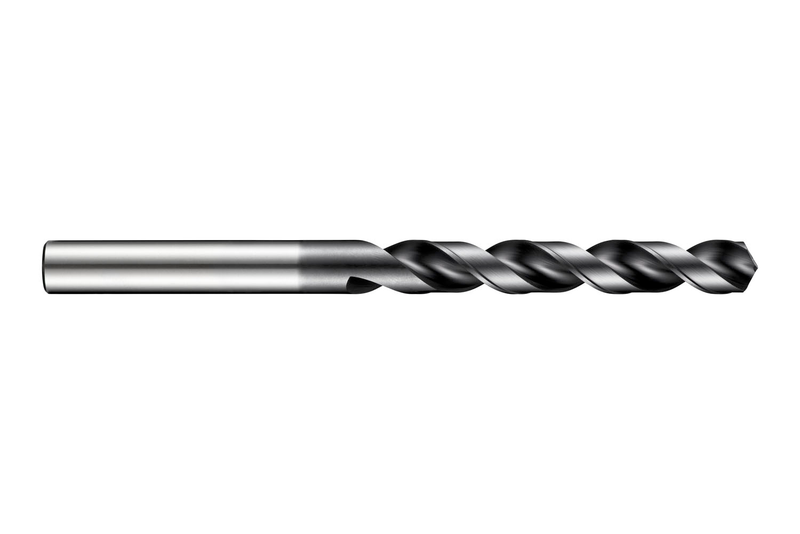

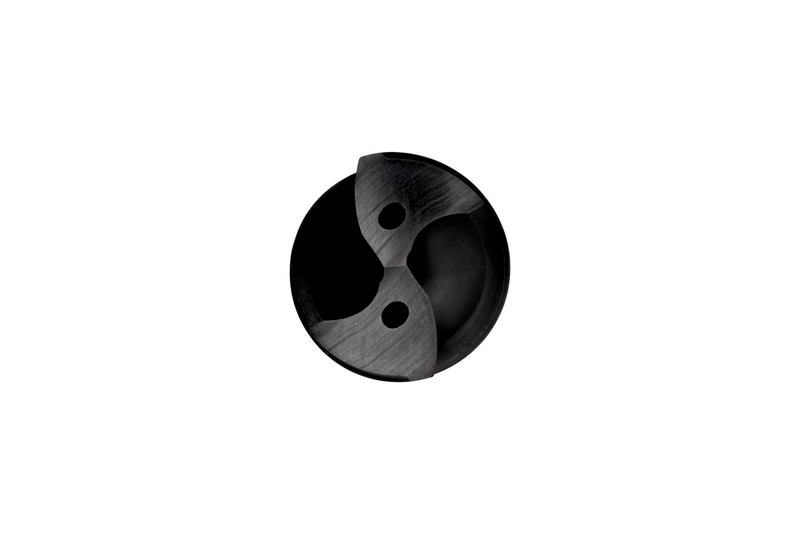

Foret haute performance à queue cylindrique NC DIN 6535HA, diamètre 14 mm avec une longueur totale de 160 mm et une longueur de coupe de 101 mm selon la norme DORMER, avec pointe en spirale à 130°, en HSS-E à base de cobalt avec revêtement supérieur TiAlN, avec arrosage par l'intérieur, pour perçage à 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A55314.0
GradeTiAlN/Top
Product Number5970058
Product FamilyA553

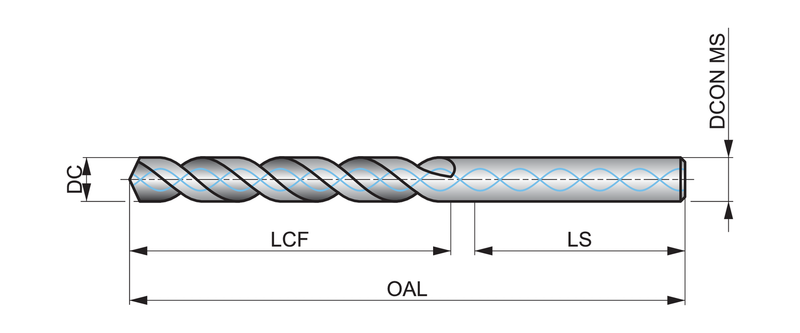

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number390948
EAN7320760390948
File Type Download
A55314.0 — 3D Model STP Download
A55314.0 — Line Drawing PDF Download
