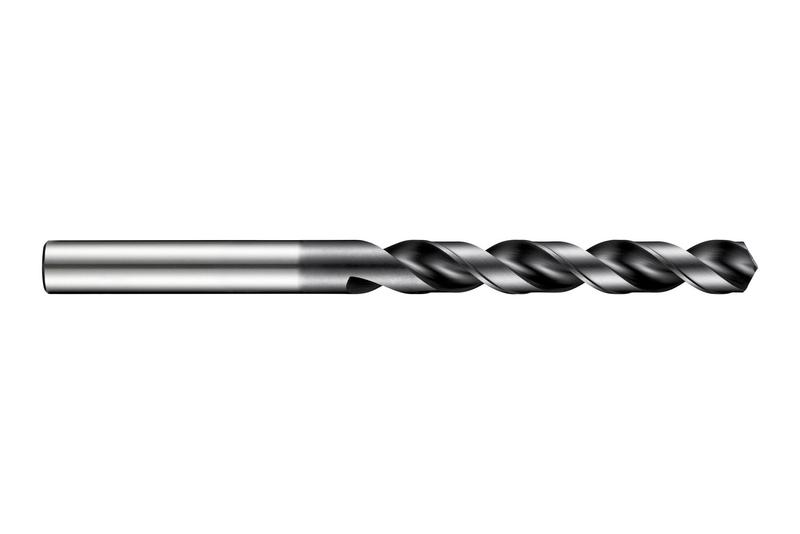

Foret haute performance à queue cylindrique DIN 6535HA NC, diamètre 15 mm, longueur totale 170 mm et longueur de coupe 108 mm, selon la norme DORMER avec pointe 130° en HSS-E cobalt avec revêtement TiAlN, arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A55315.0
GradeTiAlN/Sommet
Product Number5970080
Product FamilyA553

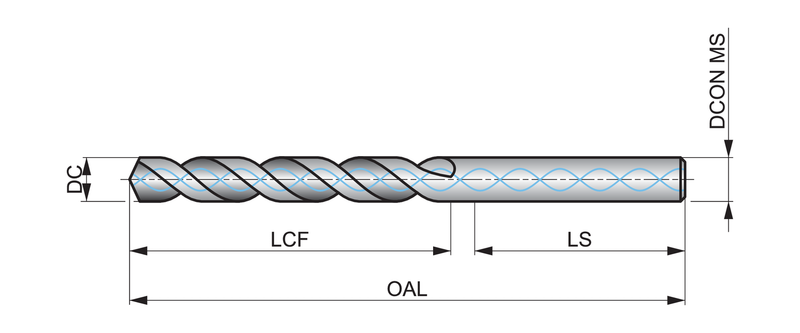

Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)6.6929"
Overall Length — mm (OAL)170.0 mm
Flute Length — in (LCF)4.252"
Flute Length — mm (LCF)108.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number390986
EAN7320760390986
File Type Download
A55315.0 — 3D Model STP Download
A55315.0 — Line Drawing PDF Download
