UGC DOR5970137
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$494.93 CAD - $494.93 CAD
$494.93 CAD
$494.93 CAD - $494.93 CAD
$494.93 CAD

Vendu en lots de : 1

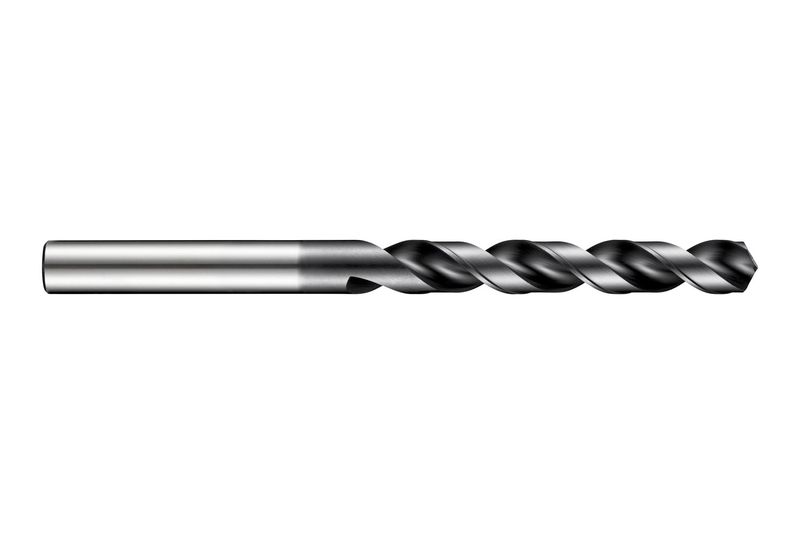

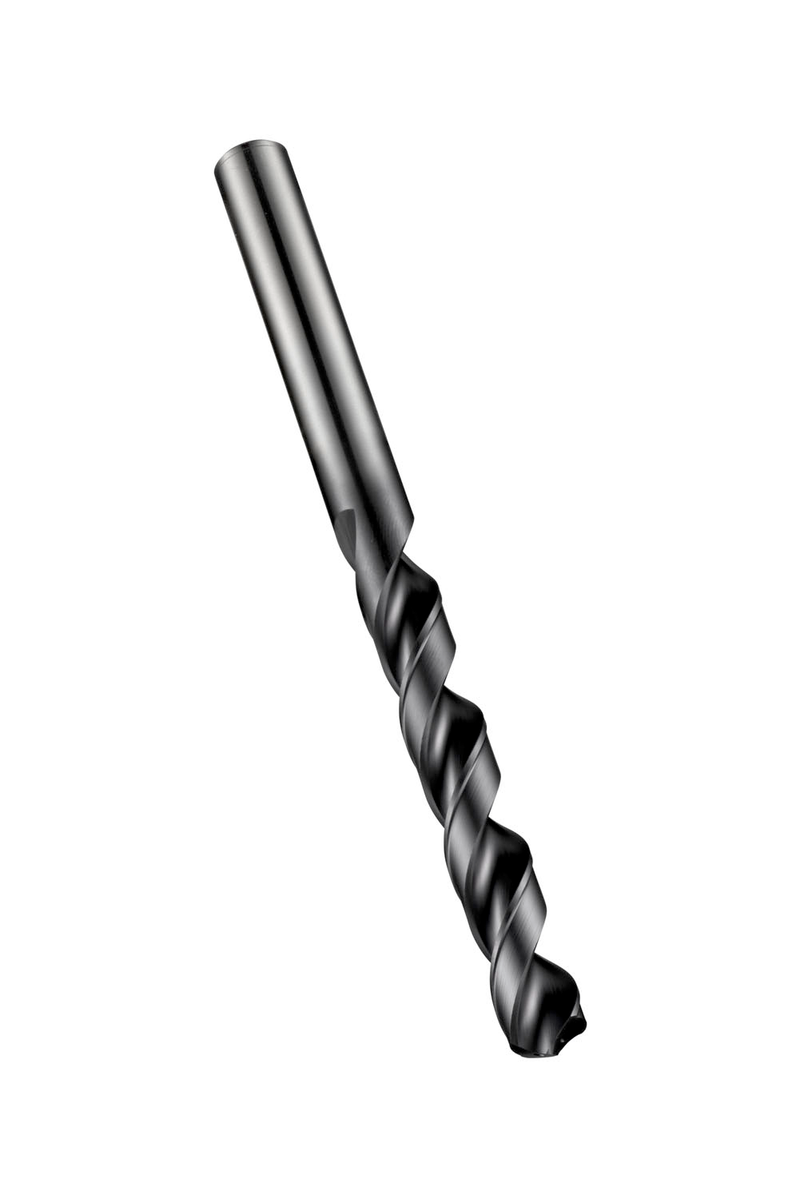

Foret haute performance à queue cylindrique NC DIN 6535HA, diamètre 18mm avec une longueur totale de 190mm et une longueur de coupe de 130mm selon la norme DORMER avec une pointe en spirale à 130°, HSS-E à base de cobalt avec revêtement TiAlN-top et arrosage interne pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A55318.0
GradeTiAlN/Sommet
Product Number5970137
Product FamilyA553

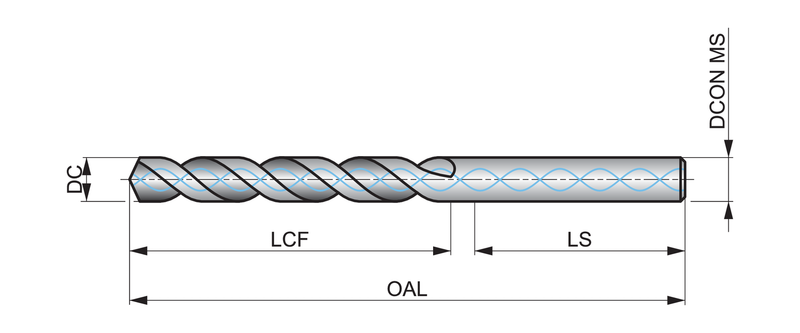

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)7.4803"
Overall Length — mm (OAL)190.0 mm
Flute Length — in (LCF)5.1181"
Flute Length — mm (LCF)130.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number391112
EAN7320760391112
File Type Download
A55318.0 — 3D Model STP Download
A55318.0 — Line Drawing PDF Download
