UGC DOR5970241
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.37 CAD - $65.37 CAD
$65.37 CAD
$65.37 CAD - $65.37 CAD
$65.37 CAD

Vendu en lots de : 1

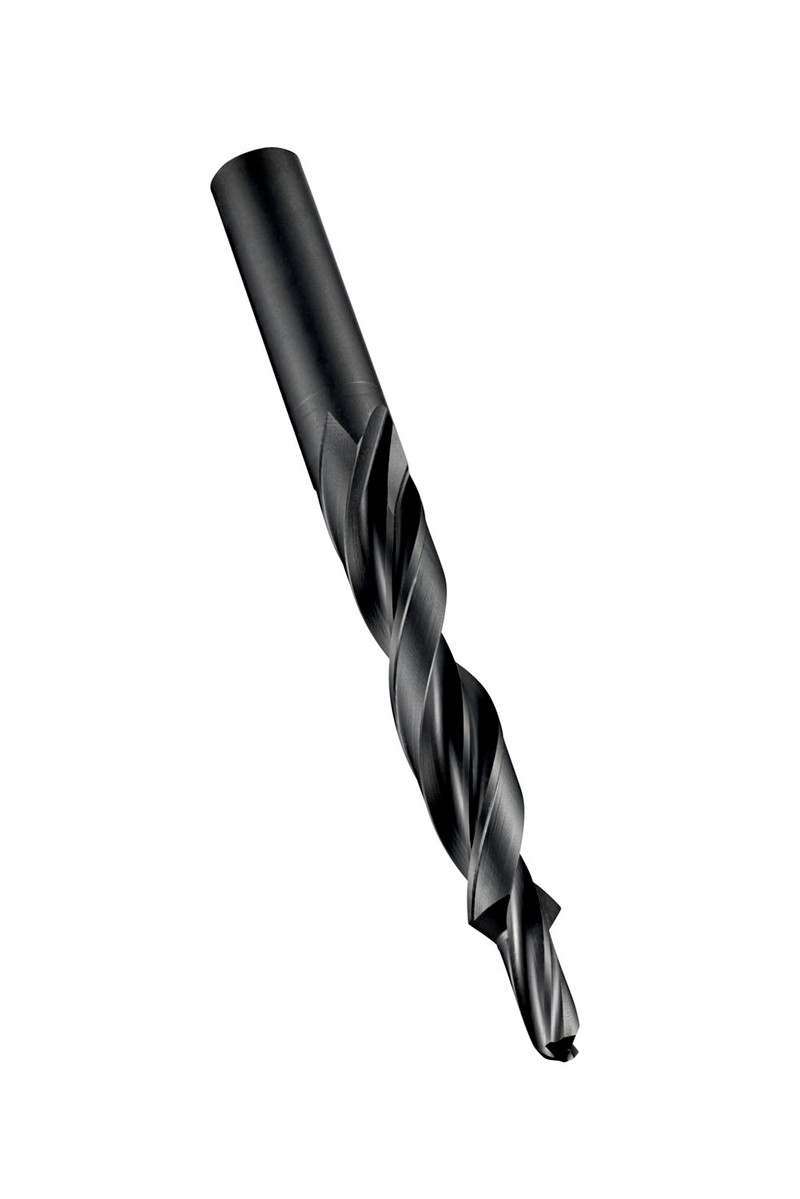

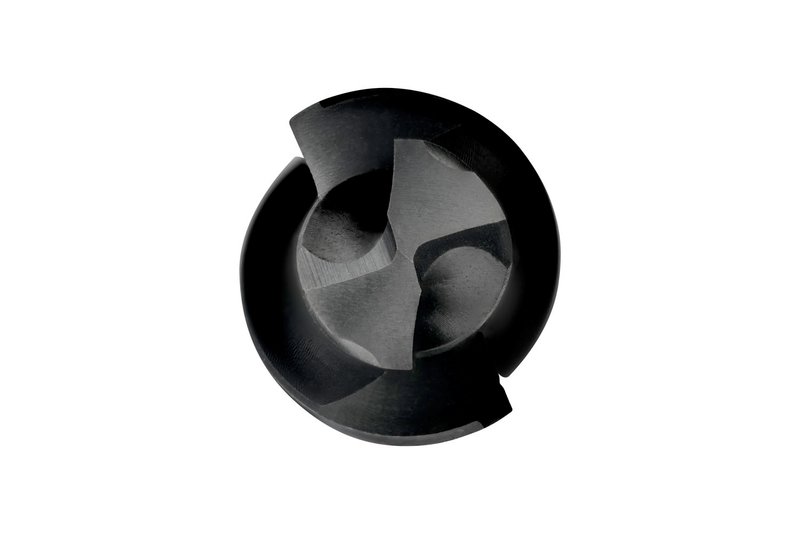

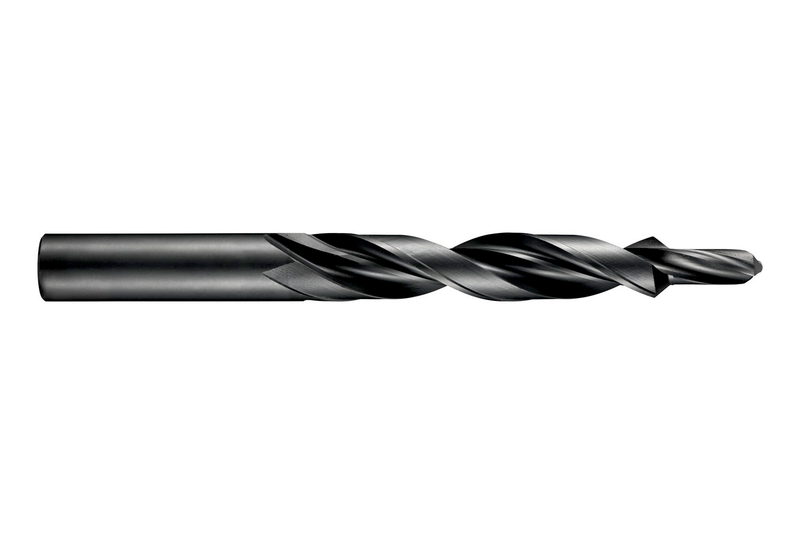

Foret étagé à 90° avec queue cylindrique et un diamètre de perçage pilote de 4,30 mm d'une longueur de 11,00 mm, un grand diamètre de 8,00 mm et une longueur totale de 117 mm, selon la norme DIN 8374 pour produire un trou traversant à ajustement serré et un siège conique pour vis à tête fraisée M4, HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A400M4
GradeTrempé à la vapeur
Product Number5970241
Product FamilyA400

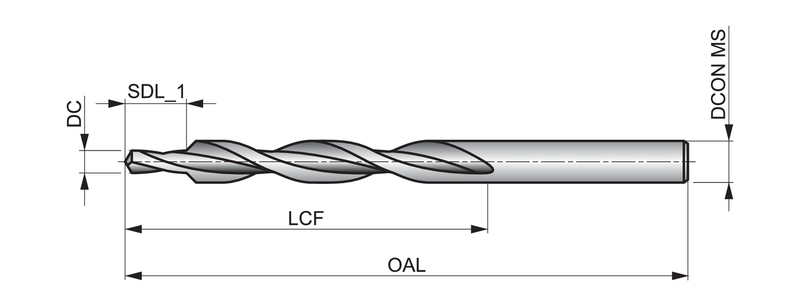

Dimensions
Cutting Diameter — in (DC)0.1693"
Cutting Diameter — mm (DC)4.3 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8374
Reference Numbers
EDP Number34323
EAN7320760034323
File Type Download
A400M4 — 3D Model STP Download
A400M4 — Line Drawing PDF Download
