UGC DOR5970245
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.87 CAD - $75.87 CAD
$75.87 CAD
$75.87 CAD - $75.87 CAD
$75.87 CAD

Vendu en lots de : 1

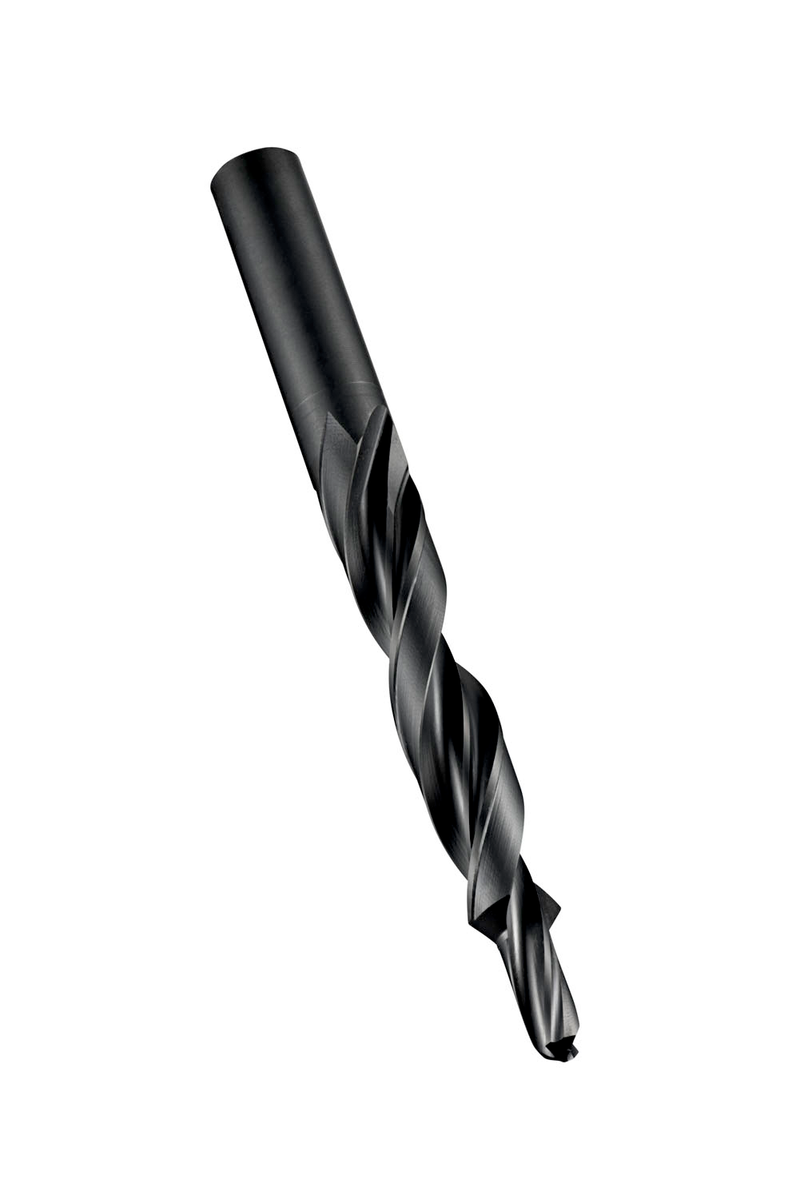

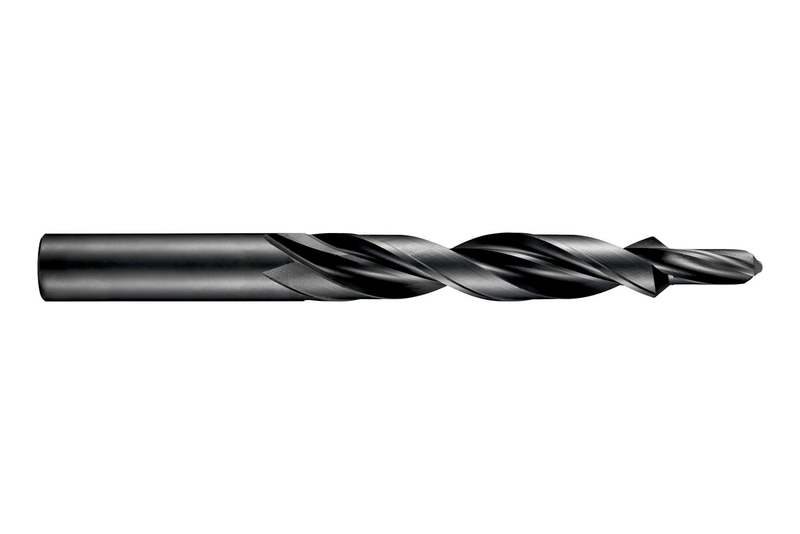

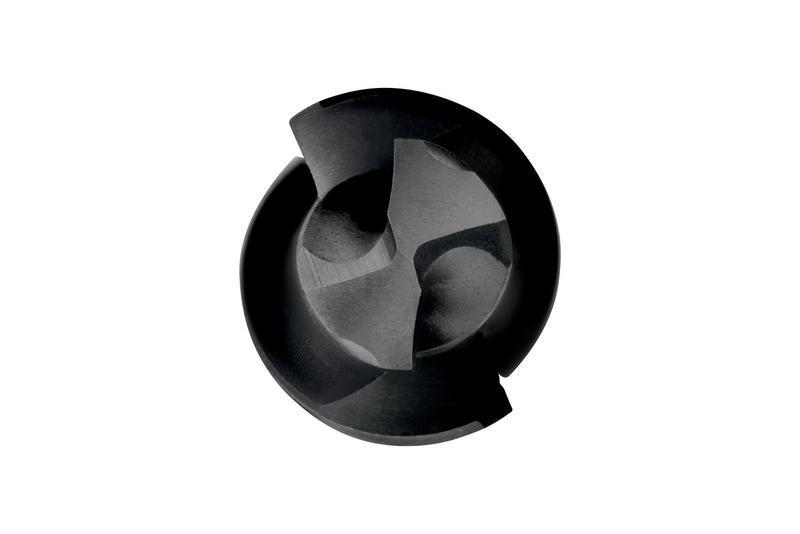

Foret étagé à 90°, queue cylindrique et un diamètre pilote de 5,30mm avec une longueur de 13,00mm, un grand diamètre de 10,00mm et une longueur totale de 133mm, conforme à la norme DIN 8374 pour la réalisation d'un trou traversant ajusté et d'un logement conique pour vis à tête fraisée M5, HSS et finition à la vapeur pour l'usinage de l'acier de décolletage, de l'acier au carbone non allié et allié et de la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A400M5
GradeTrempé à la vapeur
Product Number5970245
Product FamilyA400

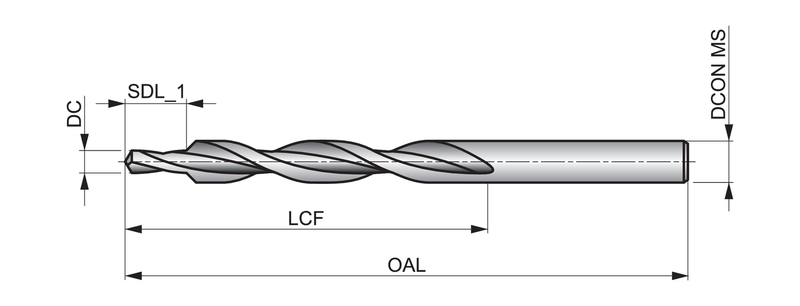

Dimensions
Cutting Diameter — in (DC)0.2087"
Cutting Diameter — mm (DC)5.3 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8374
Reference Numbers
EDP Number34330
EAN7320760034330
File Type Download
A400M5 — 3D Model STP Download
A400M5 — Line Drawing PDF Download
