UGC DOR5970252
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.46 CAD - $157.46 CAD
$157.46 CAD
$157.46 CAD - $157.46 CAD
$157.46 CAD

Vendu en lots de : 1

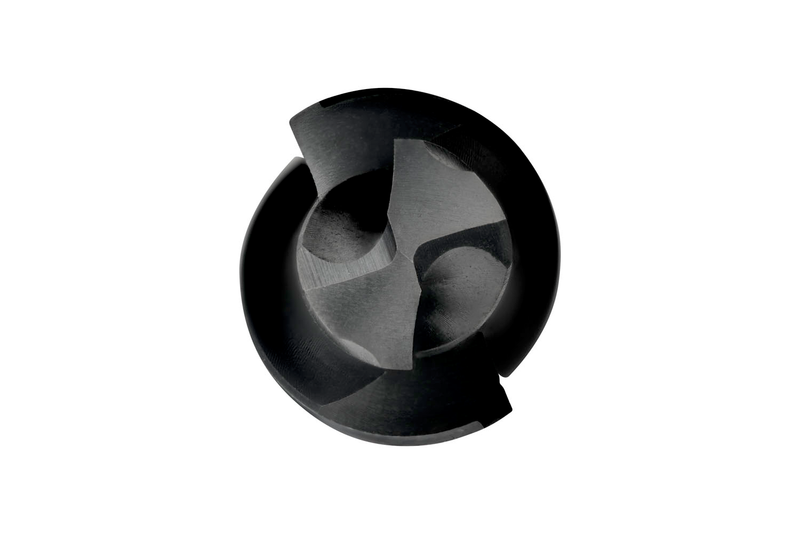

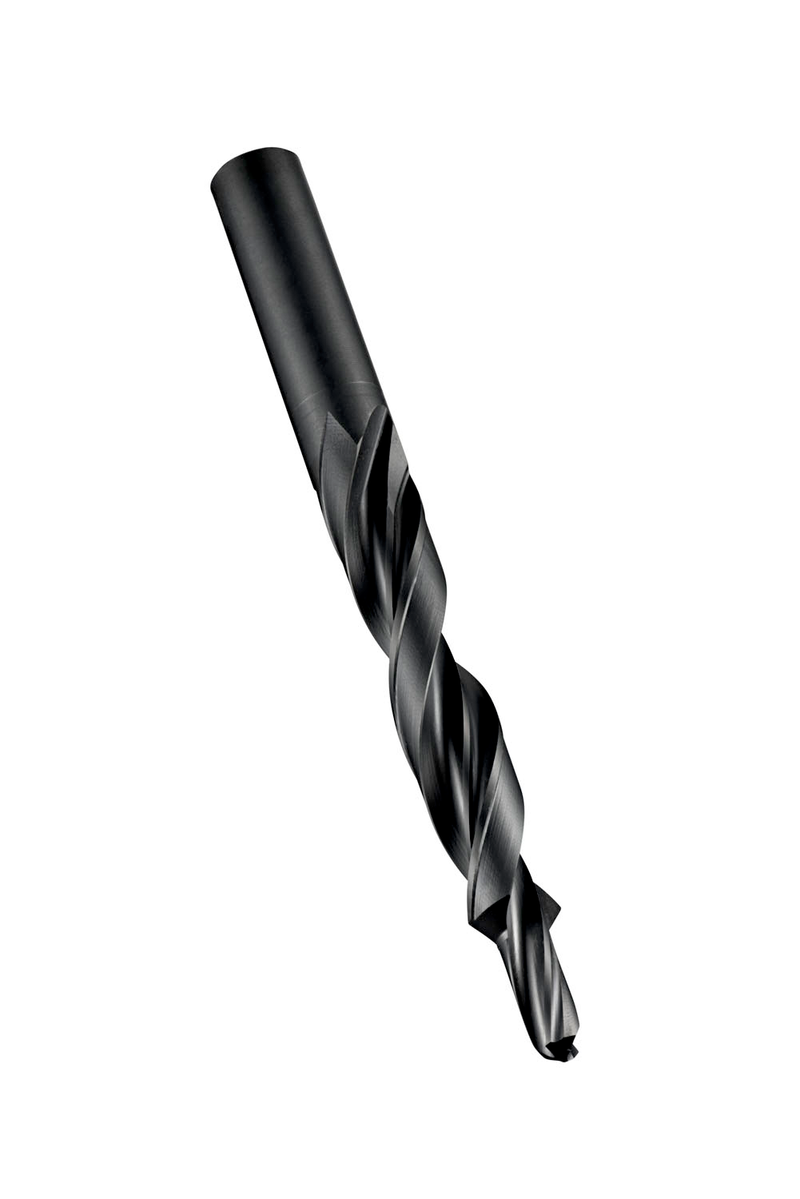

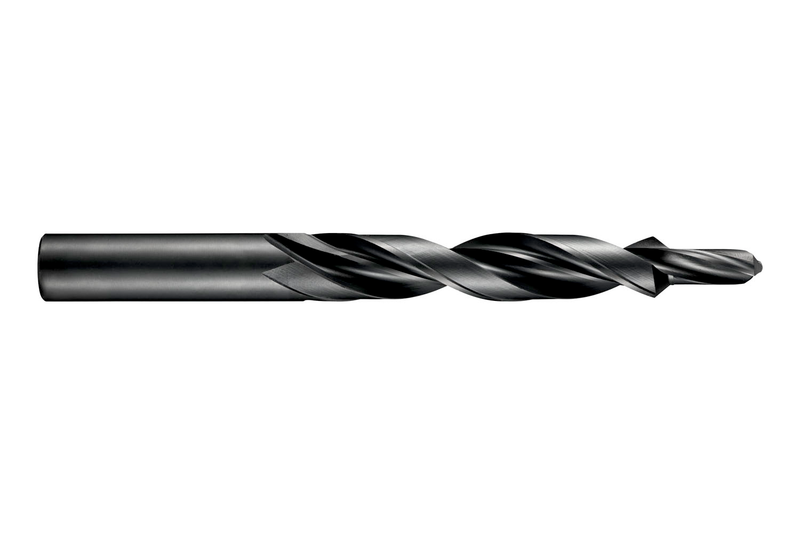

Foret étagé avec un angle de pointe inclus de 90°, queue cylindrique et un diamètre pilote de 8,40mm avec une longueur de 19,00mm, un grand diamètre de 15,00mm et une longueur totale de 169mm, selon la norme DIN 8374 pour réaliser un trou débouchant à ajustement serré et un logement conique pour vis à tête fraisée M8, HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés non traités et fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A400M8
GradeTrempé à la vapeur
Product Number5970252
Product FamilyA400

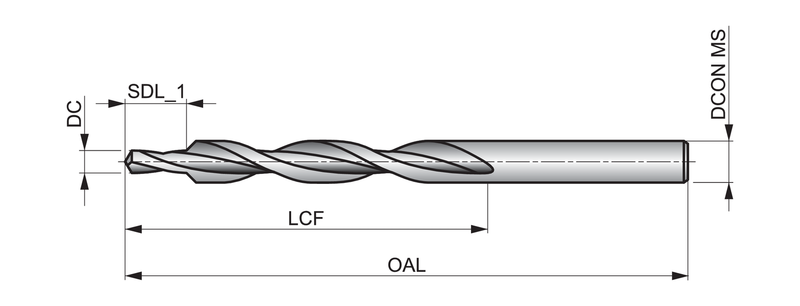

Dimensions
Cutting Diameter — in (DC)0.3307"
Cutting Diameter — mm (DC)8.4 mm
Overall Length — in (OAL)6.6535"
Overall Length — mm (OAL)169.0 mm
Flute Length — in (LCF)4.4882"
Flute Length — mm (LCF)114.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5906"
Connection Dia. — mm (DCON)15.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M8
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8374
Reference Numbers
EDP Number34354
EAN7320760034354
File Type Download
A400M8 — 3D Model STP Download
A400M8 — Line Drawing PDF Download
