UGC DOR5970272
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$226.17 CAD - $226.17 CAD
$226.17 CAD
$226.17 CAD - $226.17 CAD
$226.17 CAD

Vendu en lots de : 1

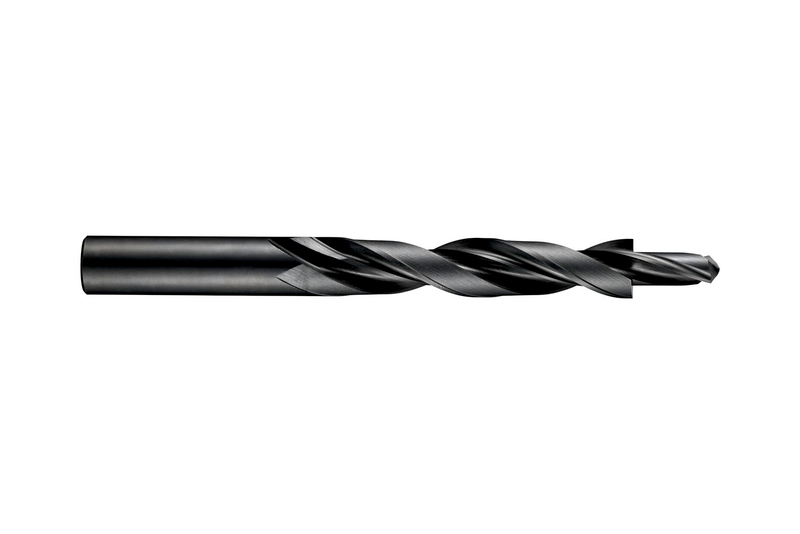

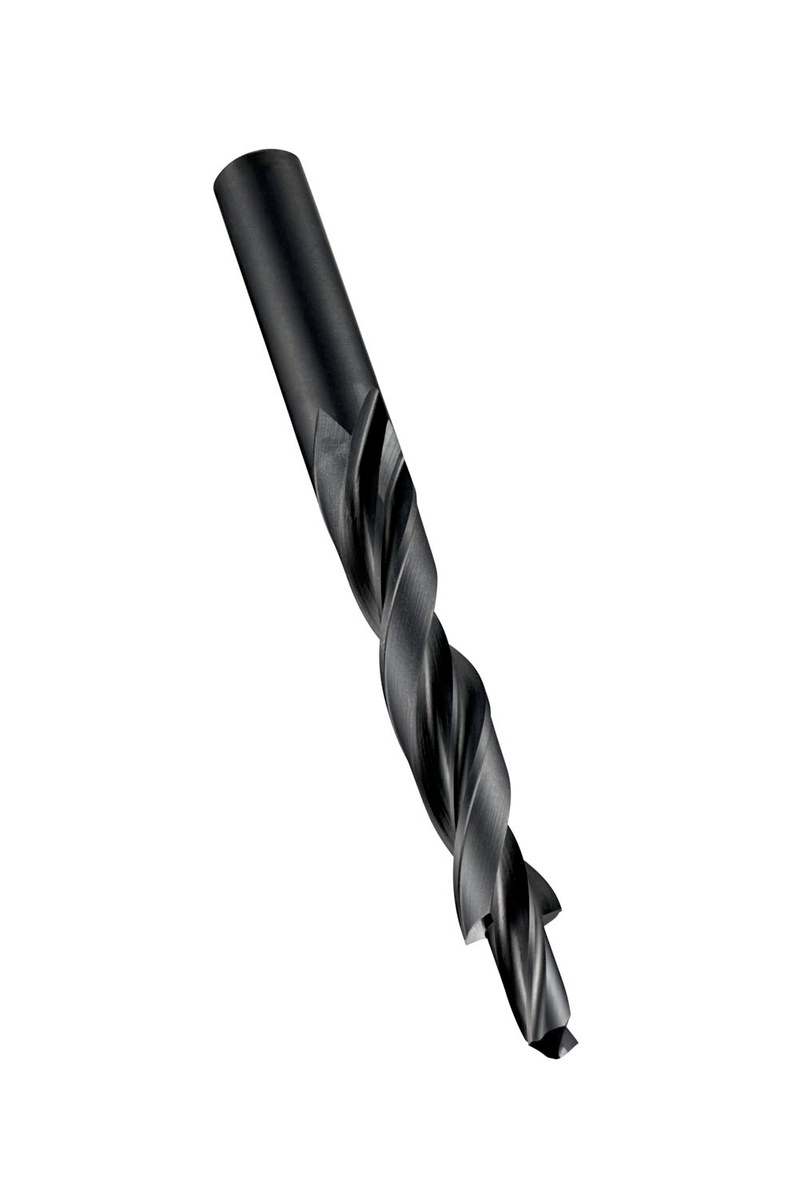

Foret étagé à 180°, queue cylindrique et diamètre de perçage pilote de 11,00mm avec une longueur de 23,00mm, un grand diamètre de 18,00mm et une longueur totale de 191mm, selon la norme DIN 8376 pour réaliser un trou traversant à ajustement moyen et un logement à fond plat pour les vis à tête cylindrique à six pans creux M10, en HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés non traités et la fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M10
GradeTrempé à la vapeur
Product Number5970272
Product FamilyA402

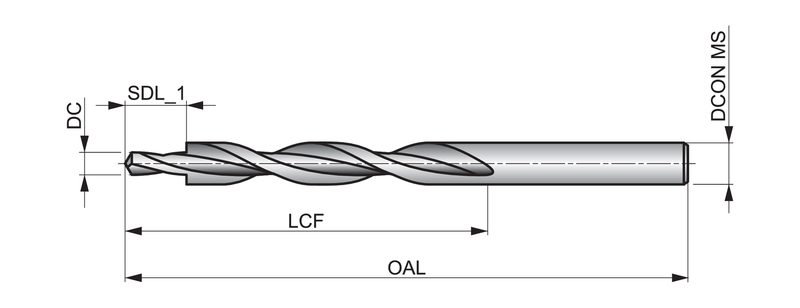

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)7.5197"
Overall Length — mm (OAL)191.0 mm
Flute Length — in (LCF)5.1181"
Flute Length — mm (LCF)130.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M10
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8376
Reference Numbers
EDP Number34439
EAN7320760034439
File Type Download
A402M10 — 3D Model STP Download
A402M10 — Line Drawing PDF Download
