UGC DOR5970276
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

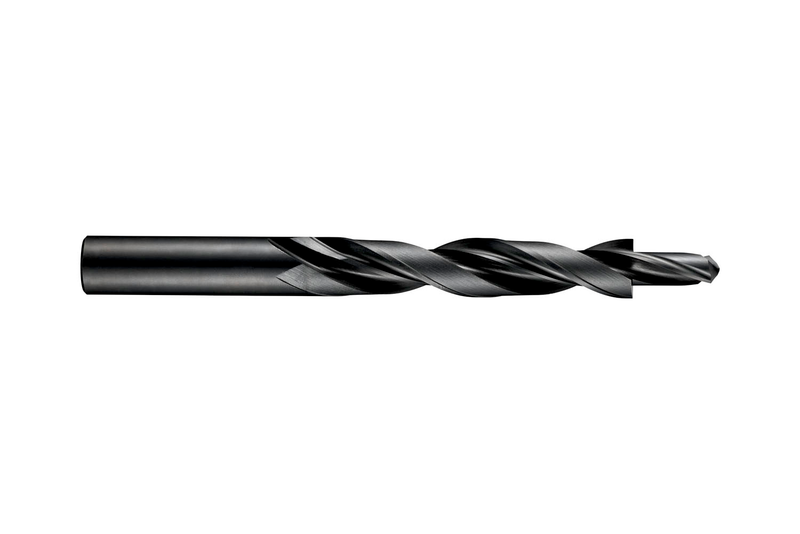

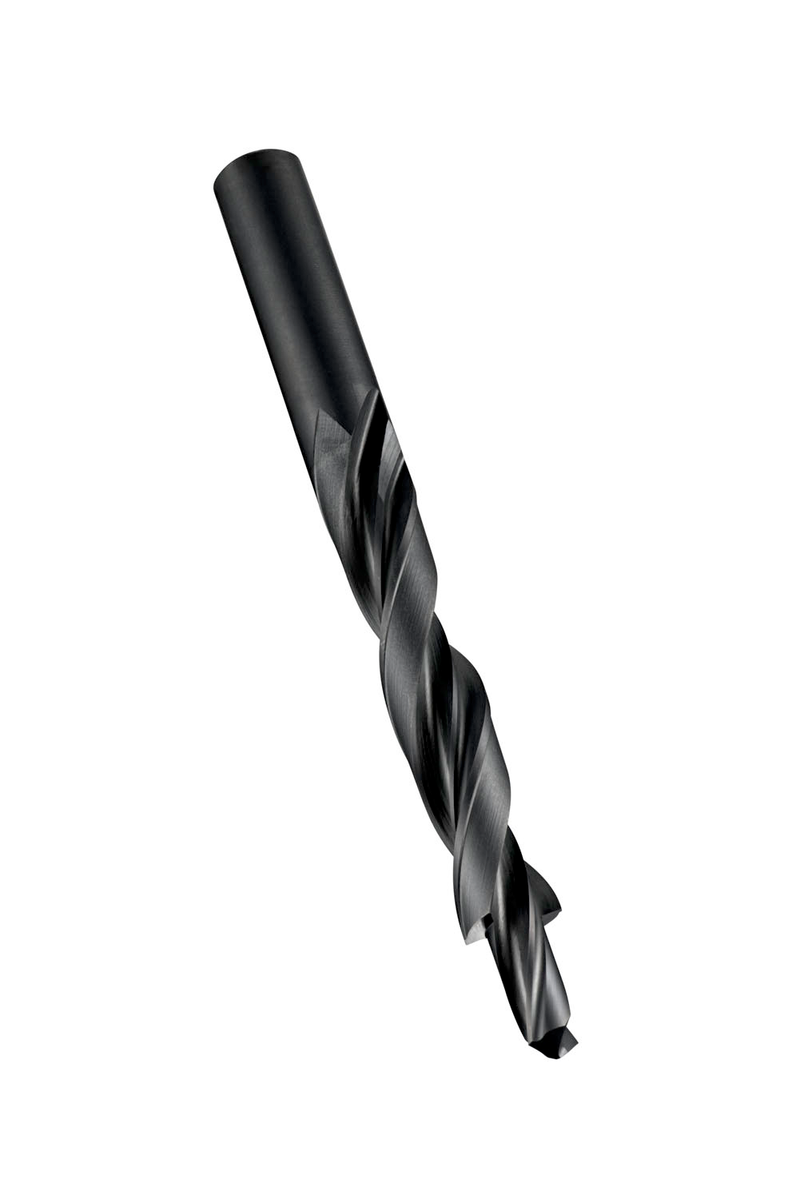

Foret étagé à 180°, queue cylindrique et diamètre pilote de perçage de 3,40mm avec une longueur de 9,00mm, un grand diamètre de 6,00mm et une longueur totale de 93mm, selon la norme DIN 8376 pour produire un trou traversant à ajustement moyen et un logement à fond plat pour vis à tête cylindrique à six pans creux M3, HSS et finition revenu vapeur pour l'usinage d'acier de décolletage, d'acier au carbone et allié non allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M3
GradeTrempé à la vapeur
Product Number5970276
Product FamilyA402

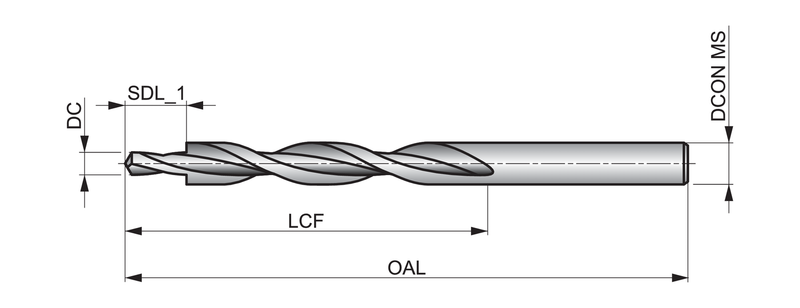

Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M3
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 8376
Reference Numbers
EDP Number34446
EAN7320760034446
File Type Download
A402M3 — 3D Model STP Download
A402M3 — Line Drawing PDF Download
