UGC DOR5970283
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.03 CAD - $62.03 CAD
$62.03 CAD
$62.03 CAD - $62.03 CAD
$62.03 CAD

Vendu en lots de : 1

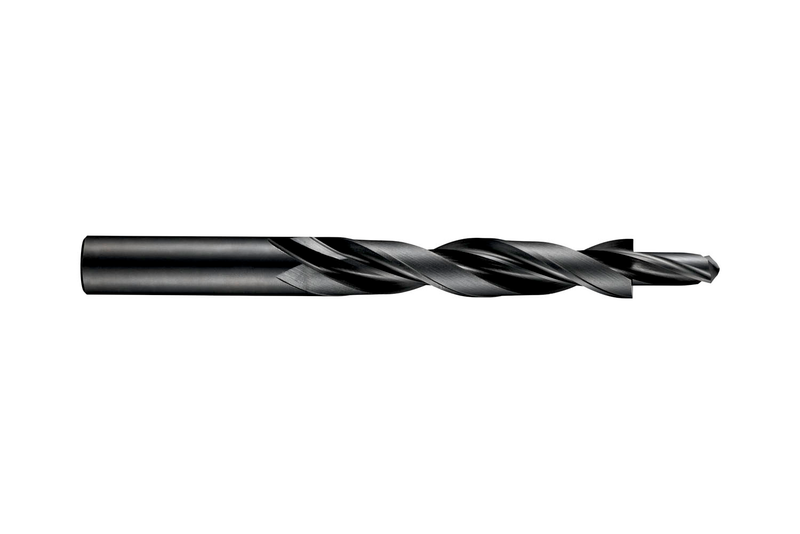

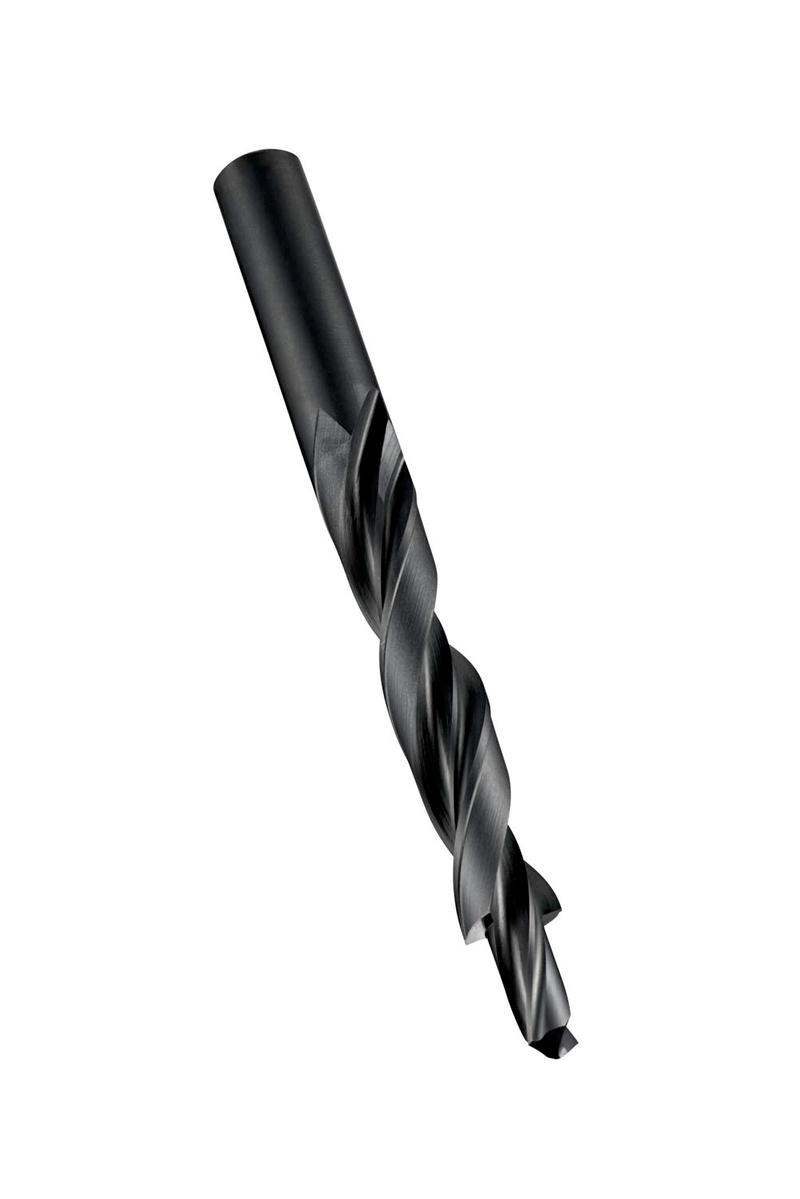

Foret étagé à 180°, queue droite et diamètre de perçage-pilote de 4,50 mm avec une longueur de 11,00 mm, un grand diamètre de 8,00 mm et une longueur totale de 117 mm, selon la norme DIN 8376 pour réaliser un trou traversant à ajustement moyen et un logement à fond plat pour des vis à tête cylindrique à six pans creux M4, HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés et fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M4
GradeTrempé à la vapeur
Product Number5970283
Product FamilyA402

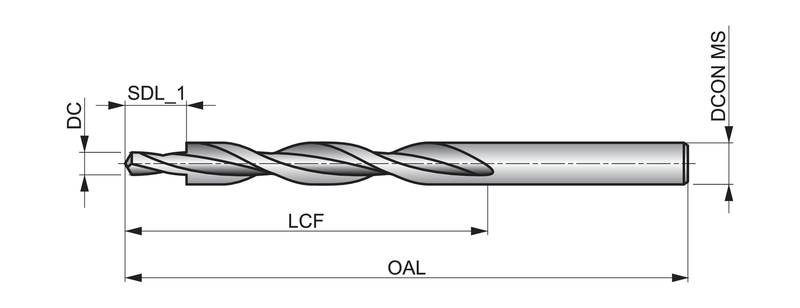

Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8376
Reference Numbers
EDP Number34453
EAN7320760034453
File Type Download
A402M4 — 3D Model STP Download
A402M4 — Line Drawing PDF Download
