A402M5
A402M5
A402M5

A402M5

UGC DOR5970287
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.91 CAD - $74.91 CAD
$74.91 CAD
$74.91 CAD - $74.91 CAD
$74.91 CAD

Vendu en lots de : 1

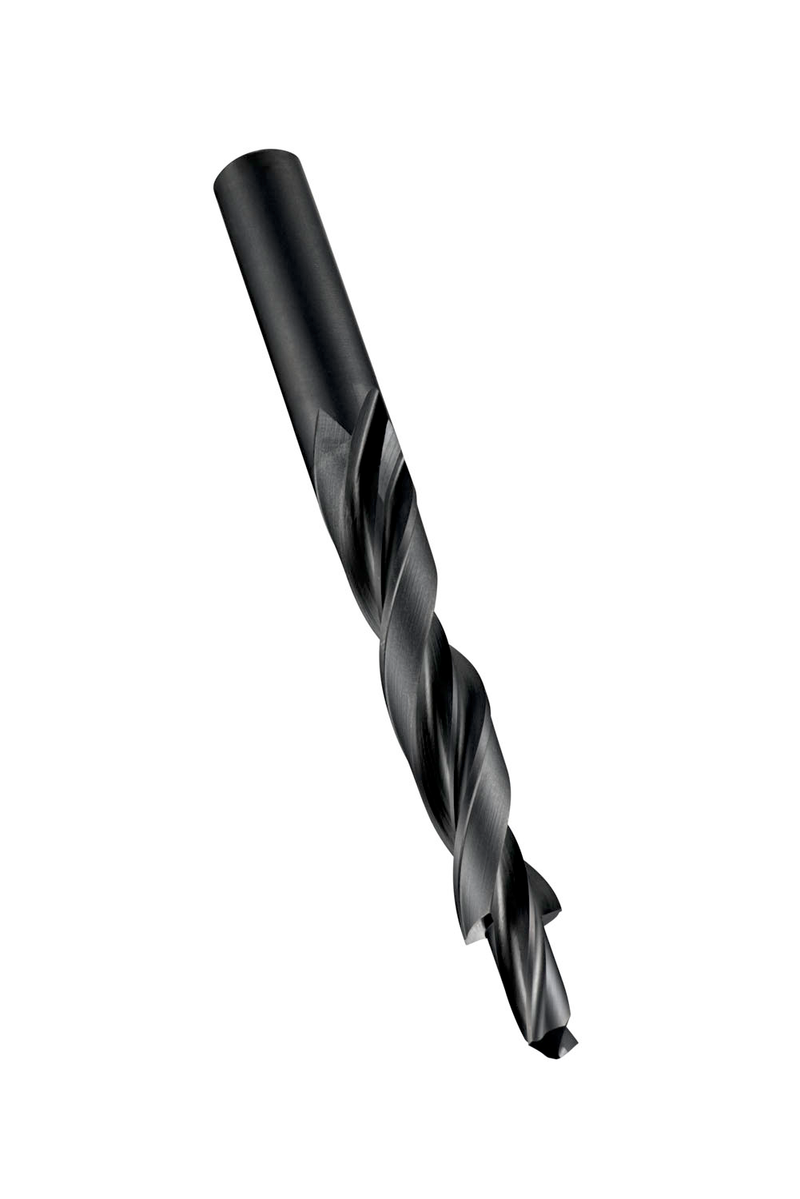

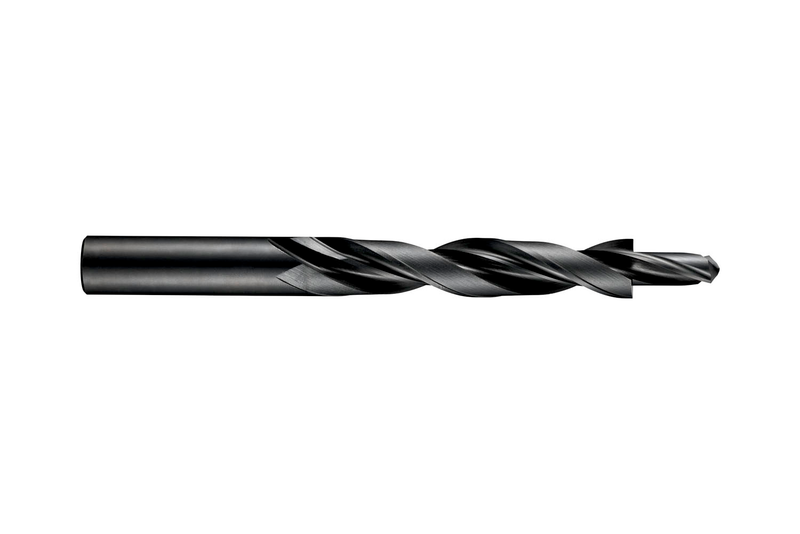

Foret étagé à angle d'épaulement inclus de 180°, queue droite et diamètre de perçage-pilote de 5,50 mm avec une longueur de 13,00 mm, un grand diamètre de 10,00 mm et une longueur totale de 133 mm, selon la norme DIN 8376 pour réaliser un trou traversant à ajustement moyen et un logement à fond plat pour vis à tête cylindrique à six pans creux M5, HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, et fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M5
GradeTrempé à la vapeur
Product Number5970287
Product FamilyA402

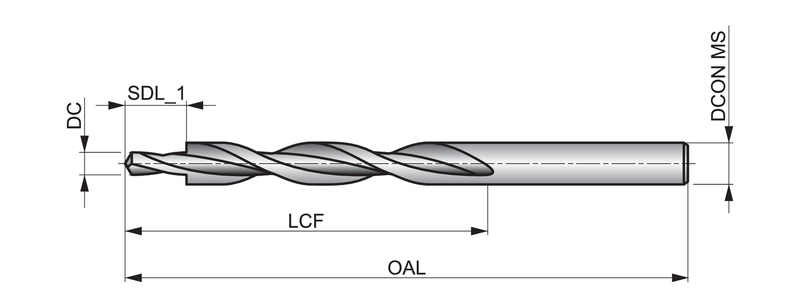

Dimensions
Cutting Diameter — in (DC)0.2165"
Cutting Diameter — mm (DC)5.5 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8376
Reference Numbers
EDP Number34460
EAN7320760034460
File Type Download
A402M5 — 3D Model STP Download
A402M5 — Line Drawing PDF Download
