UGC DOR5970291
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.36 CAD - $86.36 CAD
$86.36 CAD
$86.36 CAD - $86.36 CAD
$86.36 CAD

Vendu en lots de : 1

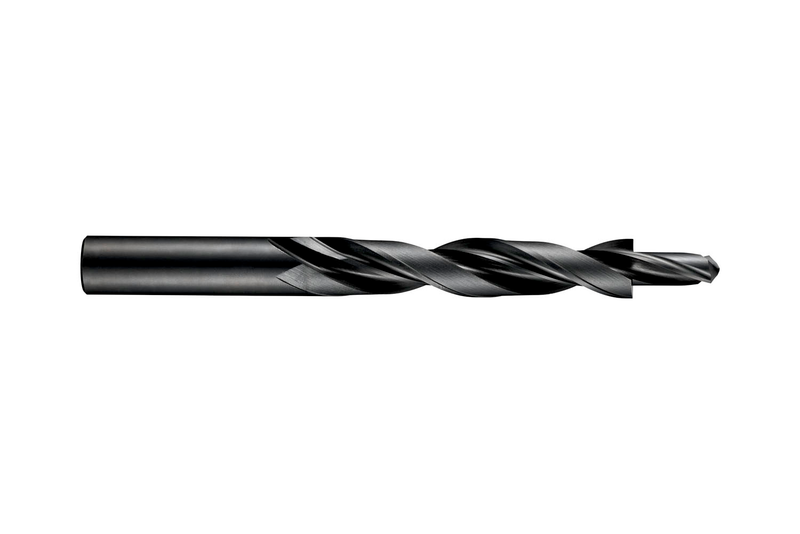

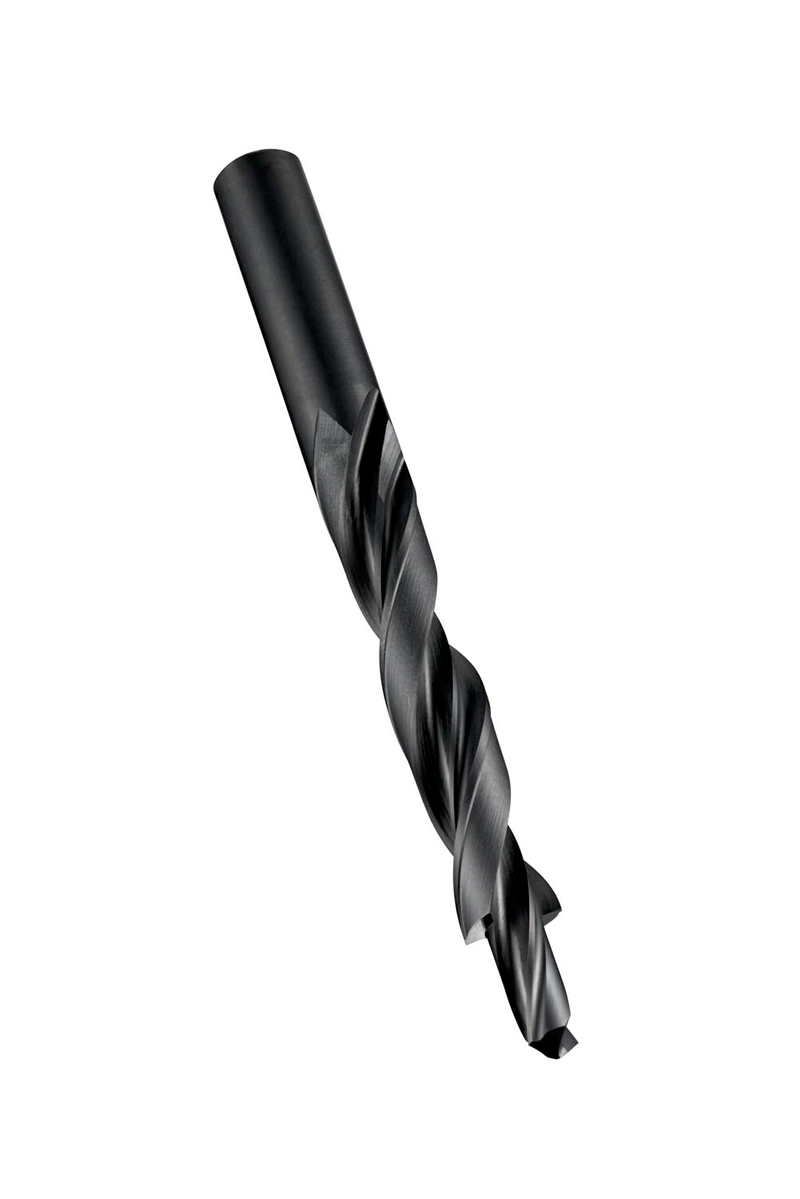

Foret étagé avec angle de dépouille de 180°, queue droite et un diamètre pilote de 6,60 mm d'une longueur de 15,00 mm, un grand diamètre de 11,00 mm et une longueur totale de 142 mm, selon la norme DIN 8376 pour la production d'un trou débouchant à ajustement moyen et un logement à fond plat pour des vis à tête cylindrique à six pans creux M6, en HSS et finition revenu vapeur pour l'usinage d'acier de décolletage, d'acier au carbone et allié non allié et de fonte grise

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A402M6
GradeTrempé à la vapeur
Product Number5970291
Product FamilyA402

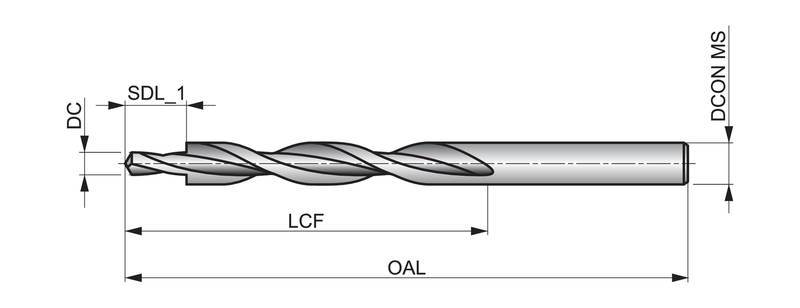

Dimensions
Cutting Diameter — in (DC)0.2598"
Cutting Diameter — mm (DC)6.6 mm
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 8376
Reference Numbers
EDP Number34477
EAN7320760034477
File Type Download
A402M6 — 3D Model STP Download
A402M6 — Line Drawing PDF Download
