UGC DOR5970360
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.94 CAD - $115.94 CAD
$115.94 CAD
$115.94 CAD - $115.94 CAD
$115.94 CAD

Vendu en lots de : 1

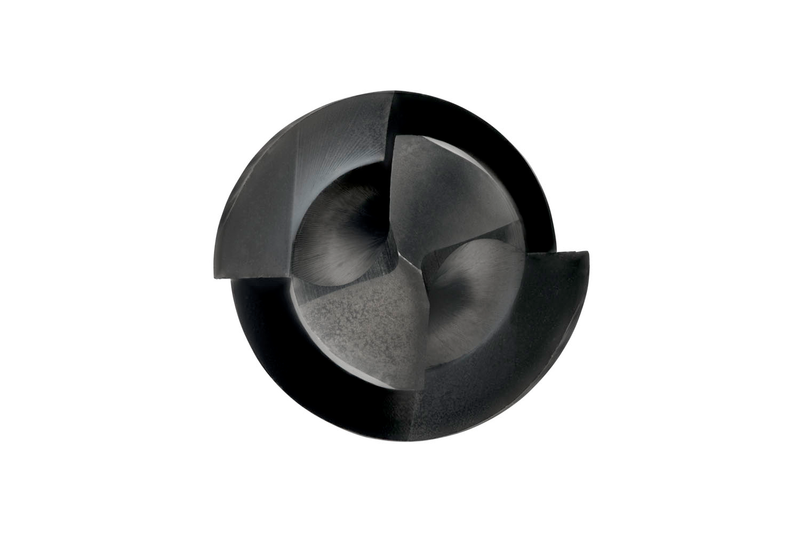

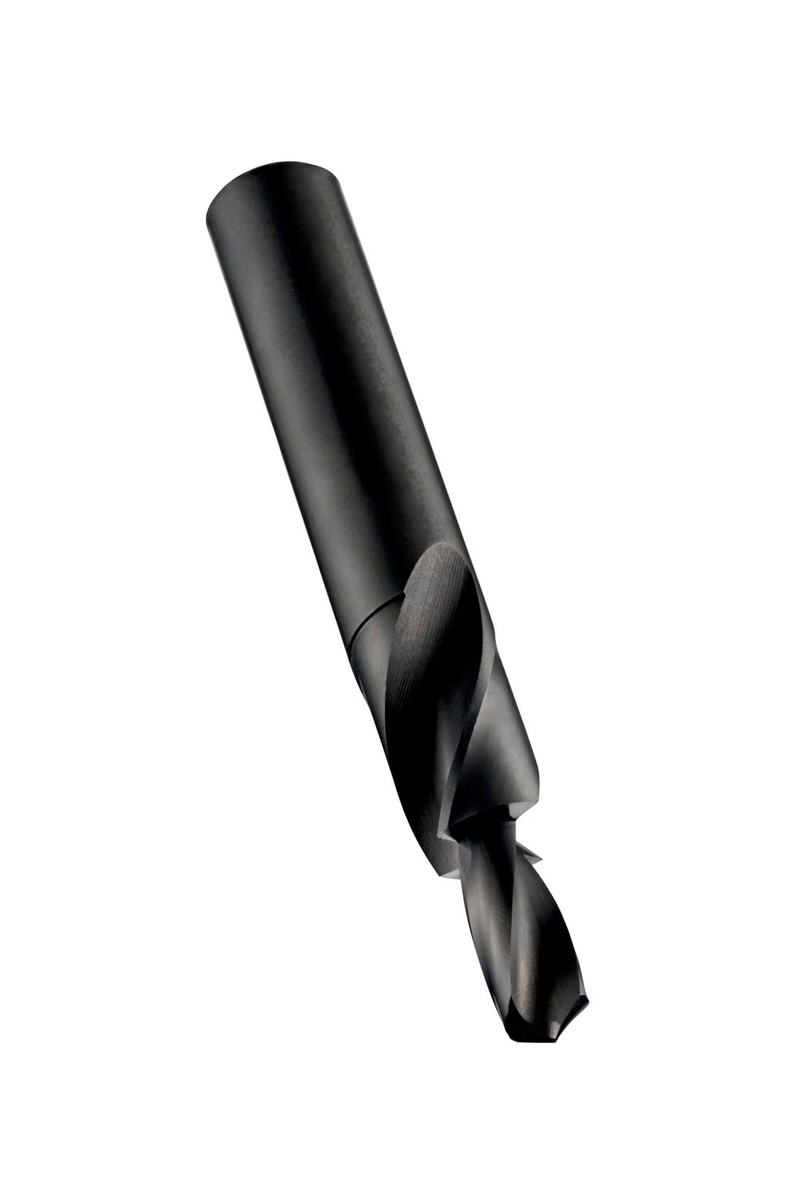

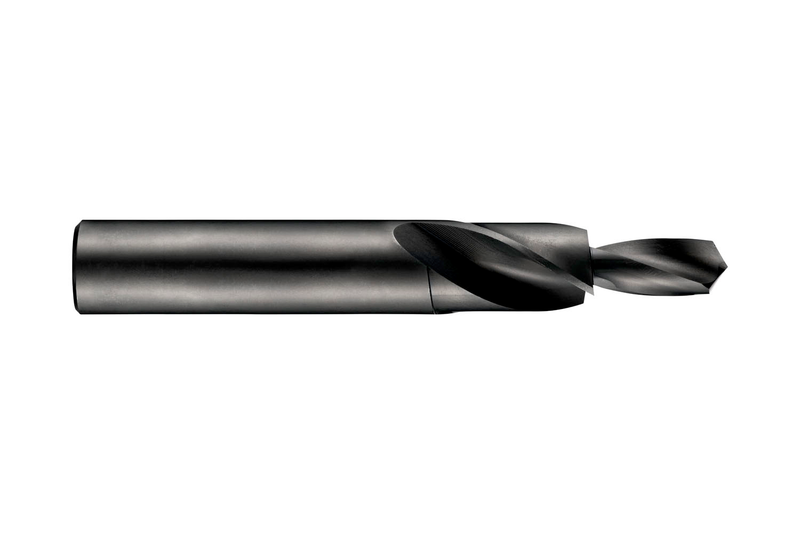

Foret étagé avec un angle d'épaulement de 180°, queue cylindrique et un diamètre pilote de 11,00mm avec une longueur de 23,00mm, un grand diamètre de 18,00mm et une longueur totale de 123mm, selon la norme DORMER pour produire un trou traversant à ajustement moyen et un logement à fond plat pour vis à tête cylindrique M10, HSS et finition revenu vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, aciers inoxydables ferritiques et martensitiques et fontes grises

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A413M10
GradeTrempé à la vapeur
Product Number5970360
Product FamilyA413

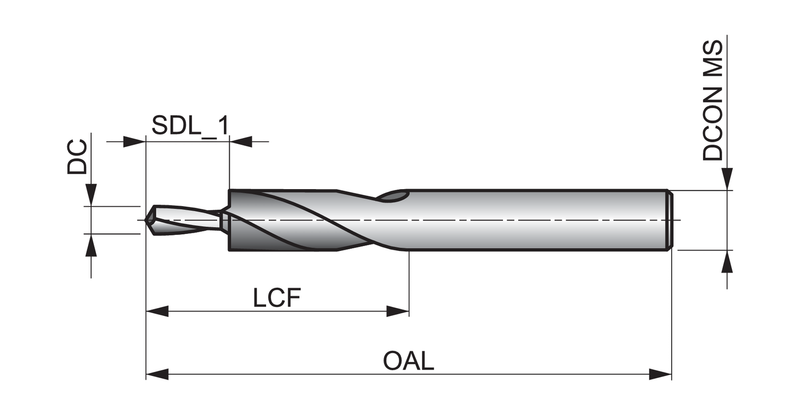

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Flute Length — in (LCF)2.4409"
Flute Length — mm (LCF)62.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)118°
Threading
Thread Diameter Size (TDZ)M10
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number213759
EAN7320760213759
File Type Download
A413M10 — Line Drawing PDF Download
