UGC DOR5970545
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.51 CAD - $22.51 CAD
$22.51 CAD
$22.51 CAD - $22.51 CAD
$22.51 CAD

Vendu en lots de : 1

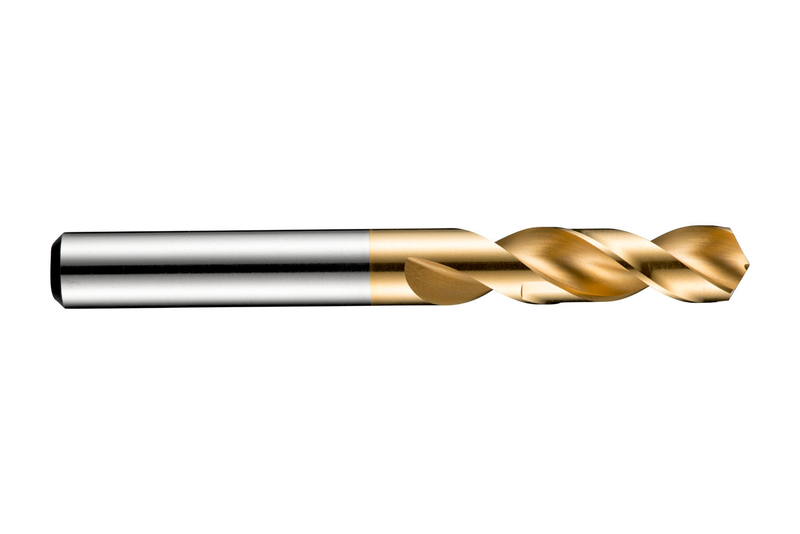

Foret ADX court avec queue cylindrique, diamètre 3,4 mm, longueur totale 52 mm et longueur de coupe 20 mm selon la norme DIN 1897 avec pointe à 130°, en HSS avec revêtement TiN pour le perçage jusqu'à 2,5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A5203.4
GradeTiN
Product Number5970545
Product FamilyA520
Dimensions
Cutting Diameter — in (DC)0.1339"
Cutting Diameter — mm (DC)3.4 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1339"
Connection Dia. — mm (DCON)3.4 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number38949
EAN7320760038949
File Type Download
A5203.4 — 3D Model STP Download
A5203.4 — Line Drawing PDF Download
