A720.6
A720.6
A720.6
A720.6

A720.6

UGC DOR5971148
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.20 CAD - $15.20 CAD
$15.20 CAD
$15.20 CAD - $15.20 CAD
$15.20 CAD

Vendu en lots de : 10

Micro-foret à queue cylindrique, diamètre 0,6mm, longueur totale 25mm et longueur de coupe 4,5mm selon la norme DIN 1899 avec un angle de pointe de 118°, HSS-E cobalt avec finition brillante pour le perçage jusqu'à 2,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A720.6
GradeLumineux
Product Number5971148
Product FamilyA720
Dimensions
Cutting Diameter — in (DC)0.0236"
Cutting Diameter — mm (DC)0.6 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Flute Length — in (LCF)0.1772"
Flute Length — mm (LCF)4.5 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0394"
Connection Dia. — mm (DCON)1.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1899
Reference Numbers
EDP Number45121
EAN7320760045121
File Type Download
A720.6 — 3D Model STP Download

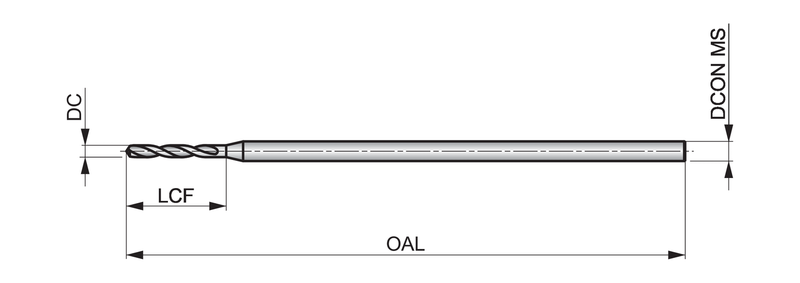

A720.6 — Line Drawing PDF Download
