UGC DOR5971167
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.09 CAD - $19.09 CAD
$19.09 CAD
$19.09 CAD - $19.09 CAD
$19.09 CAD

Vendu en lots de : 10

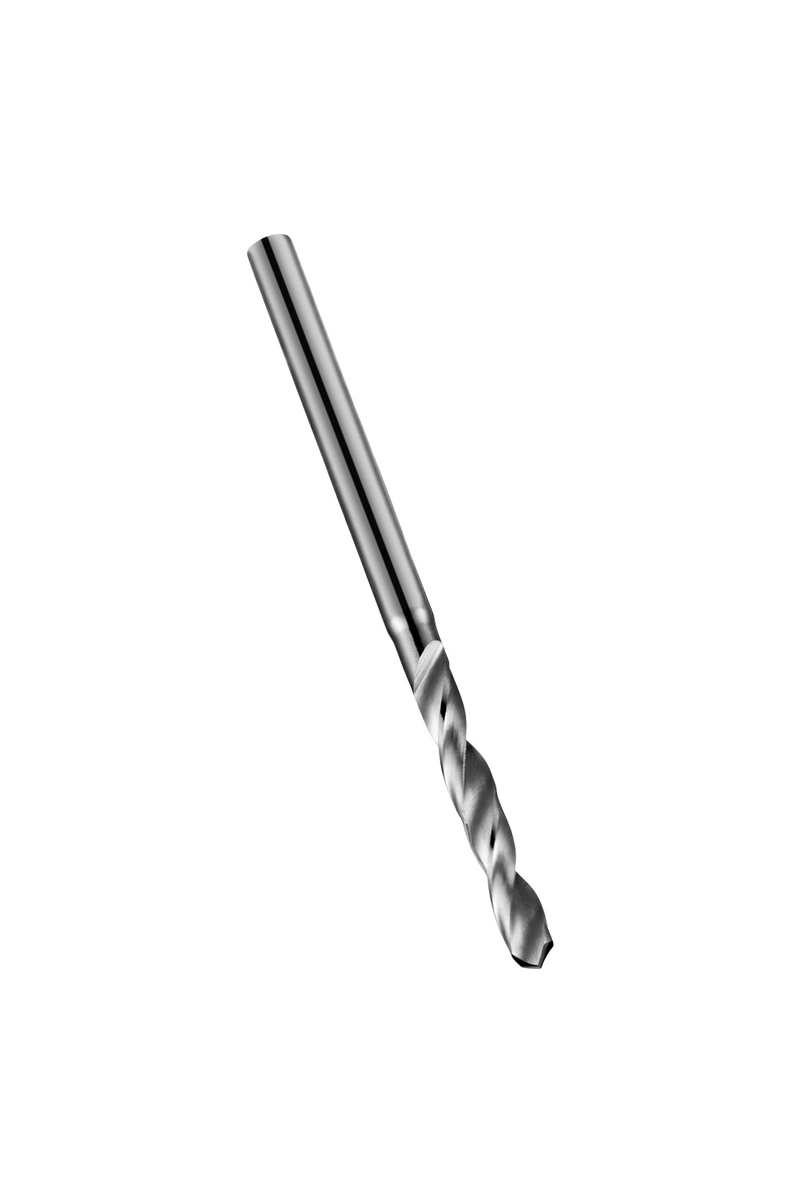

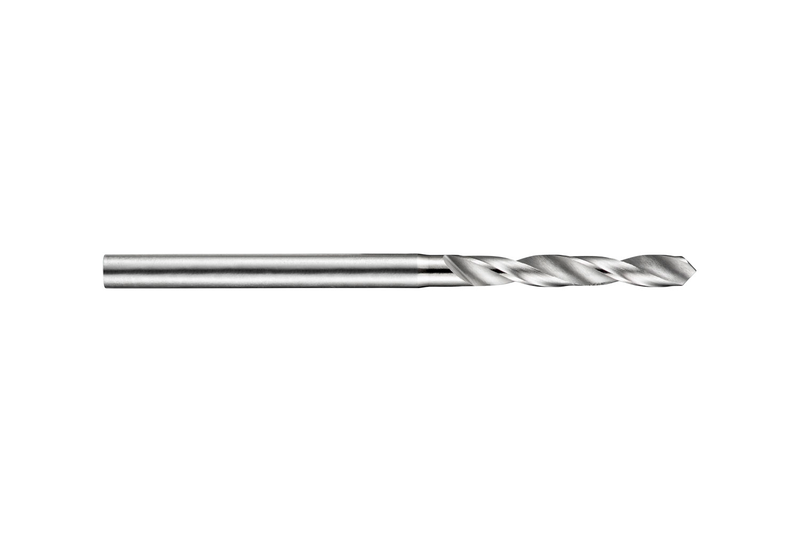

Micro-foret à queue cylindrique, diamètre 0,8 mm, longueur totale 25 mm et longueur de coupe 6,3 mm, selon la norme DIN 1899 avec un angle de pointe de 118°, en HSS-E au cobalt avec finition brillante pour un perçage 2,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A720.8
GradeLumineux
Product Number5971167
Product FamilyA720

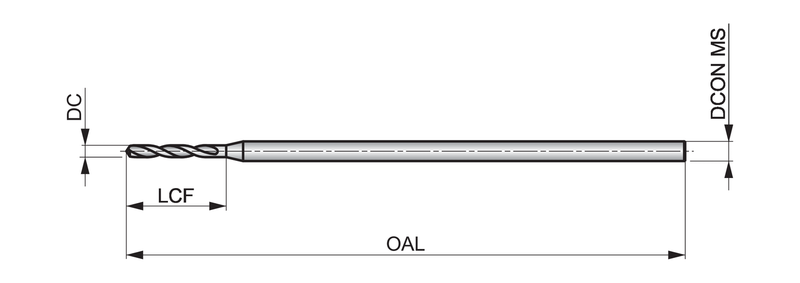

Dimensions
Cutting Diameter — in (DC)0.0315"
Cutting Diameter — mm (DC)0.8 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Flute Length — in (LCF)0.248"
Flute Length — mm (LCF)6.3 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0591"
Connection Dia. — mm (DCON)1.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1899
Reference Numbers
EDP Number615584
EAN7320760615584
File Type Download
A720.8 — 3D Model STP Download
A720.8 — Line Drawing PDF Download
