A90047/64
A90047/64
A90047/64
A90047/64

A90047/64

UGC DOR5971169
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$265.57 CAD - $265.57 CAD
$265.57 CAD
$265.57 CAD - $265.57 CAD
$265.57 CAD

Vendu en lots de : 1

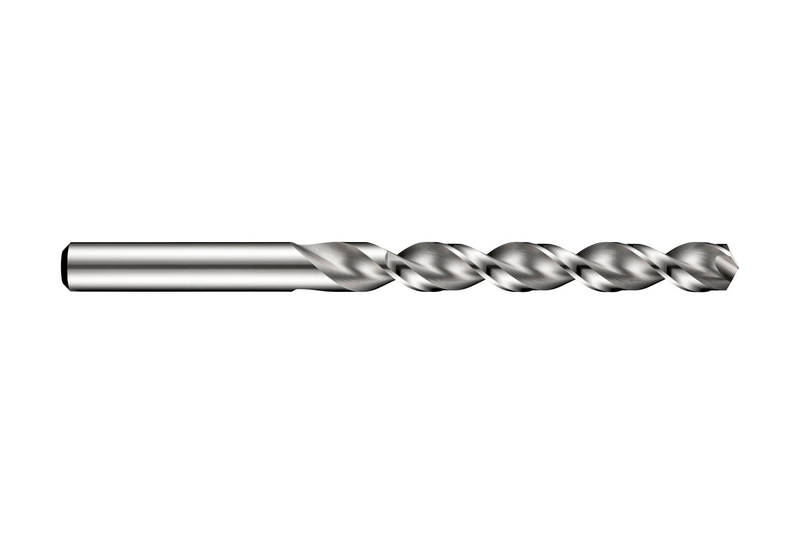

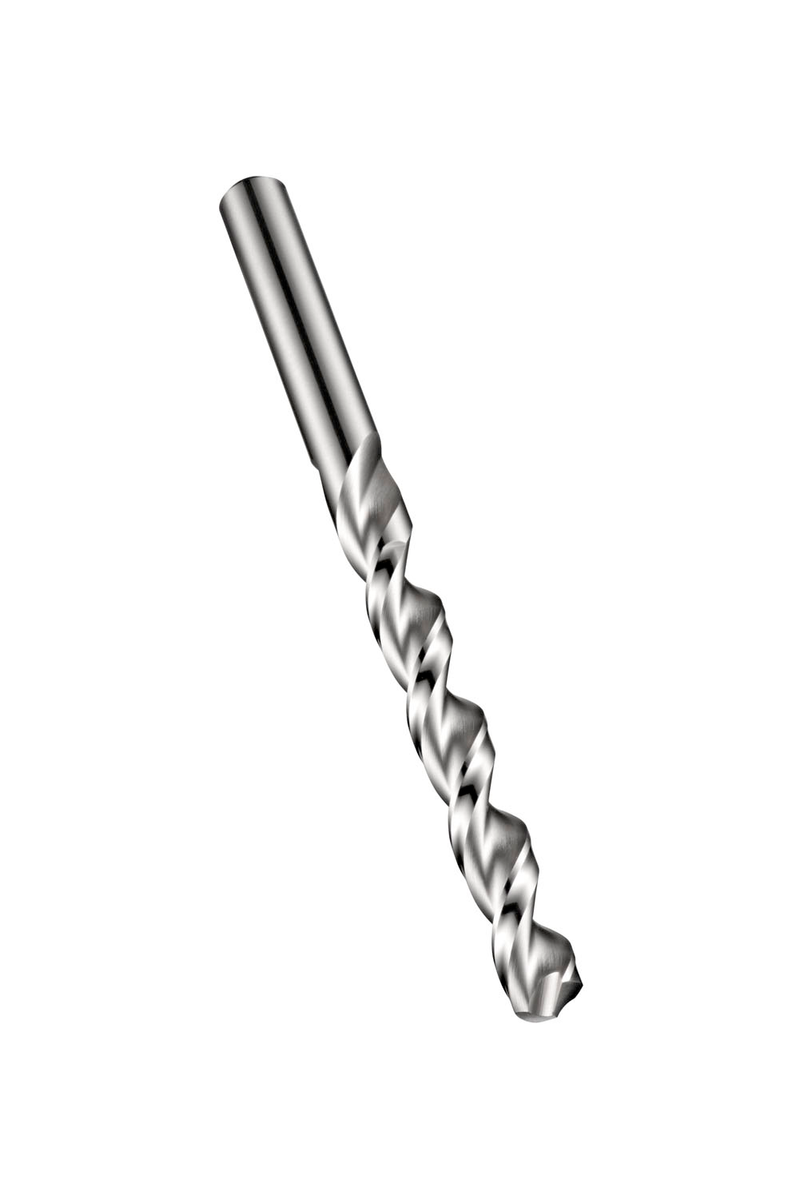

Foret PFX de longueur "jobber" à queue cylindrique, de diamètre 0,7344" (47/64) avec une longueur totale de 198mm et une longueur de goujure de 135mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E au cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage de 6xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A90047/64
GradeLumineux
Product Number5971169
Product FamilyA900
Dimensions
Cutting Diameter — in (DC)0.7344"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)7.7953"
Overall Length — mm (OAL)198.0 mm
Flute Length — in (LCF)5.315"
Flute Length — mm (LCF)135.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.7343"
Connection Dia. — mm (DCON)18.65 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number634486
EAN7320760634486
File Type Download
A90047/64 — 3D Model STP Download
A90047/64 — Line Drawing PDF Download
