A90049/64
A90049/64
A90049/64
A90049/64

A90049/64

UGC DOR5971177
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$314.79 CAD - $314.79 CAD
$314.79 CAD
$314.79 CAD - $314.79 CAD
$314.79 CAD

Vendu en lots de : 1

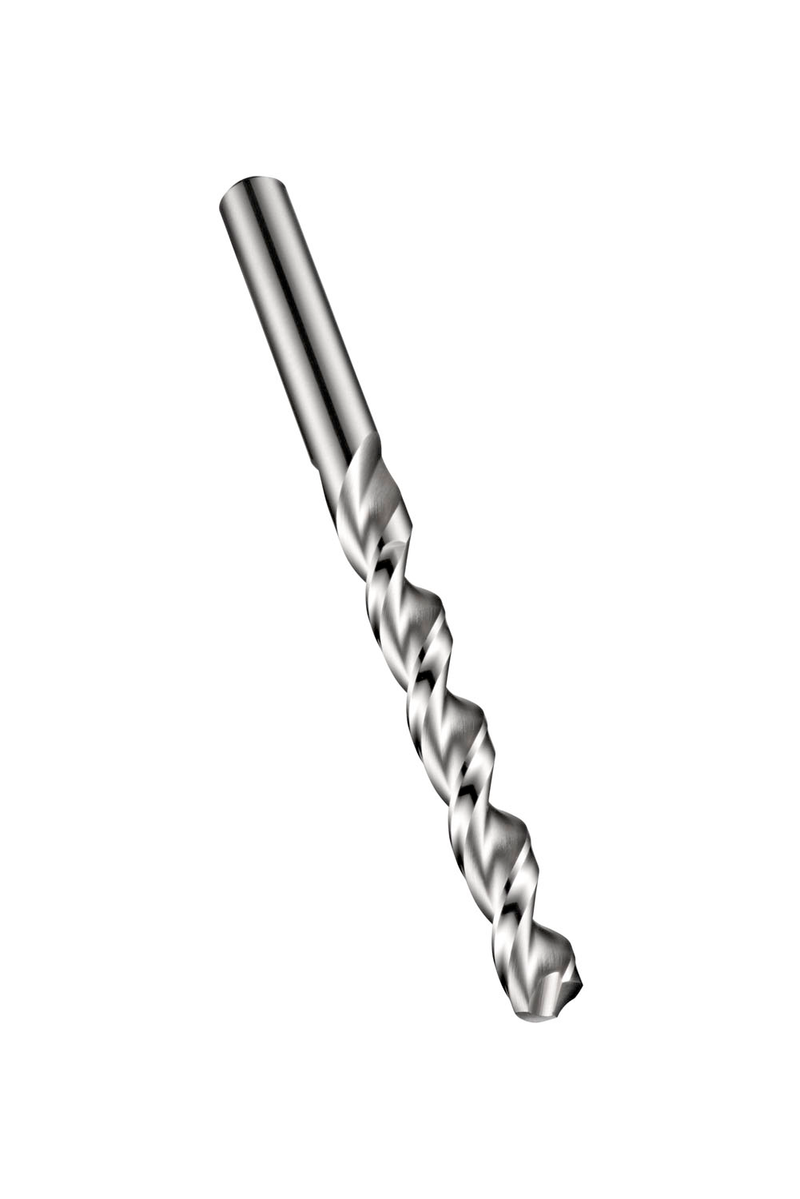

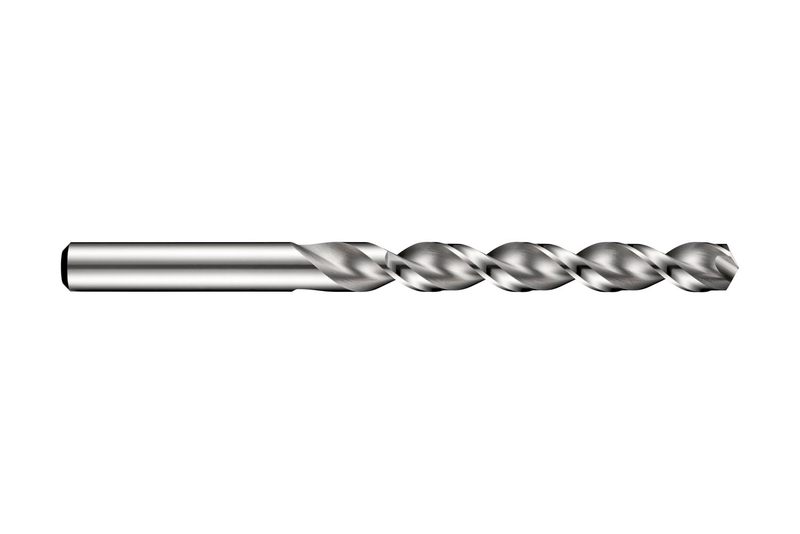

Foret PFX de longueur Jobber à queue cylindrique, diamètre 0,7656" (49/64) avec une longueur totale de 198mm et une longueur de coupe de 135mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E cobalté avec finition brillante, hélice rapide et âme parabolique pour perçage 6xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A90049/64
GradeLumineux
Product Number5971177
Product FamilyA900
Dimensions
Cutting Diameter — in (DC)0.7656"
Cutting Diameter — mm (DC)19.45 mm
Cutting Diameter — Fractional49/64
Overall Length — in (OAL)7.7953"
Overall Length — mm (OAL)198.0 mm
Flute Length — in (LCF)5.315"
Flute Length — mm (LCF)135.0 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.7657"
Connection Dia. — mm (DCON)19.45 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number634509
EAN7320760634509
File Type Download
A90049/64 — 3D Model STP Download
A90049/64 — Line Drawing PDF Download
