UGC DOR5971210
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.47 CAD - $24.47 CAD
$24.47 CAD
$24.47 CAD - $24.47 CAD
$24.47 CAD

Vendu en lots de : 10

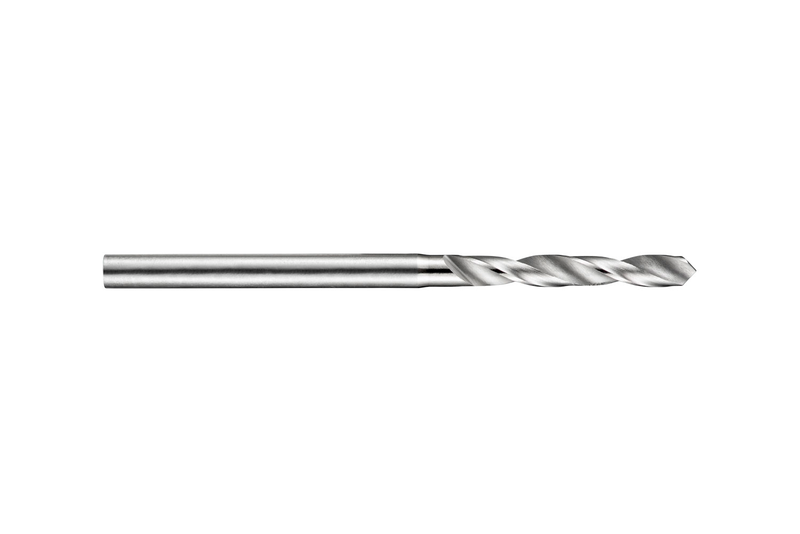

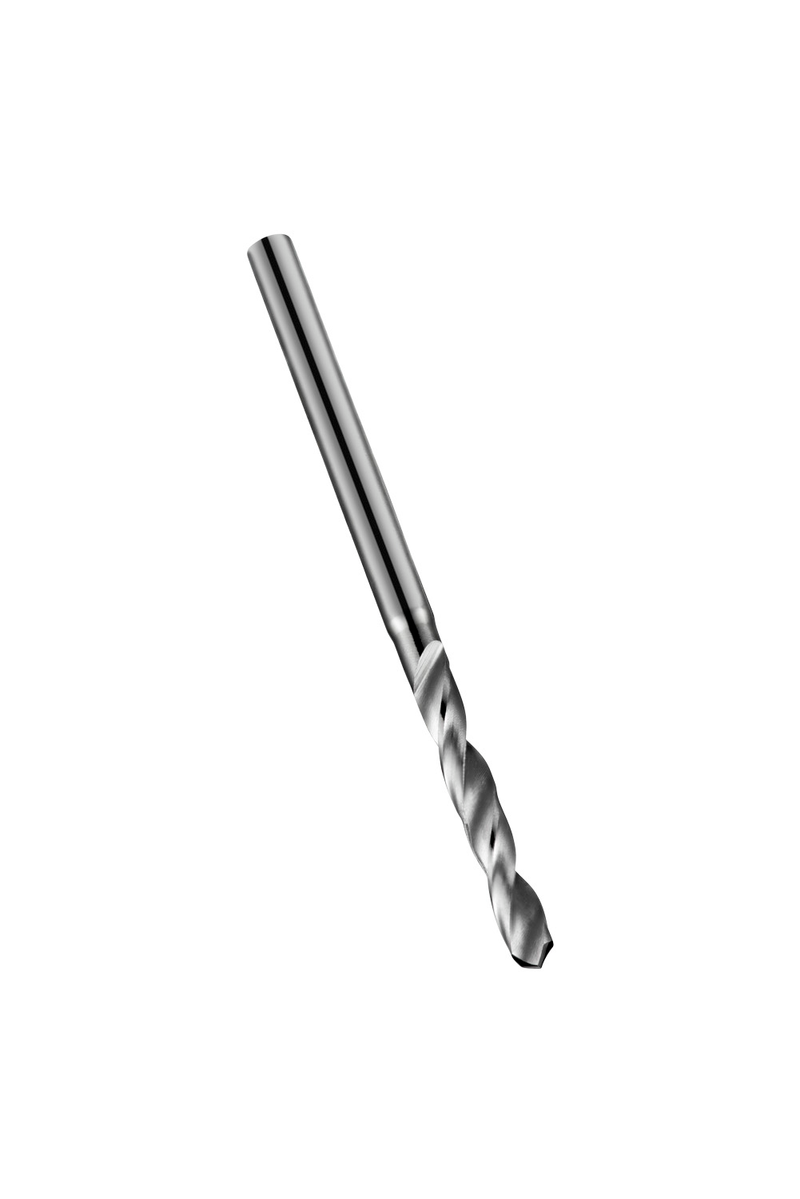

Micro-foret à queue cylindrique, diamètre 1,3 mm, longueur totale 25 mm et longueur de coupe 10 mm, conforme à la norme DIN 1899 avec un angle de pointe de 118°, en HSS-E à base de cobalt avec finition brillante pour le perçage à 2,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A7201.3
GradeLumineux
Product Number5971210
Product FamilyA720

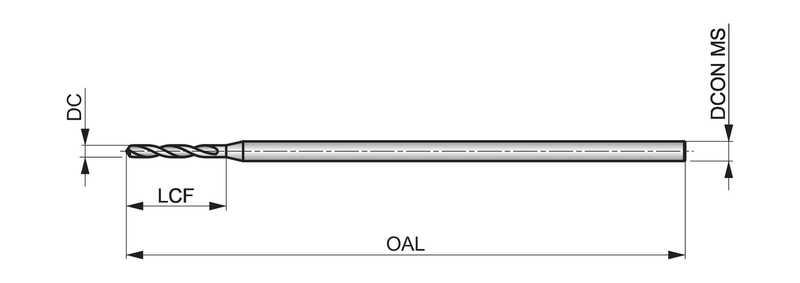

Dimensions
Cutting Diameter — in (DC)0.0512"
Cutting Diameter — mm (DC)1.3 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Flute Length — in (LCF)0.3937"
Flute Length — mm (LCF)10.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0591"
Connection Dia. — mm (DCON)1.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1899
Reference Numbers
EDP Number615638
EAN7320760615638
File Type Download
A7201.3 — 3D Model STP Download
A7201.3 — Line Drawing PDF Download
