A720.25
A720.25
A720.25
A720.25

A720.25

UGC DOR5971298
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.60 CAD - $16.60 CAD
$16.60 CAD
$16.60 CAD - $16.60 CAD
$16.60 CAD

Vendu en lots de : 10

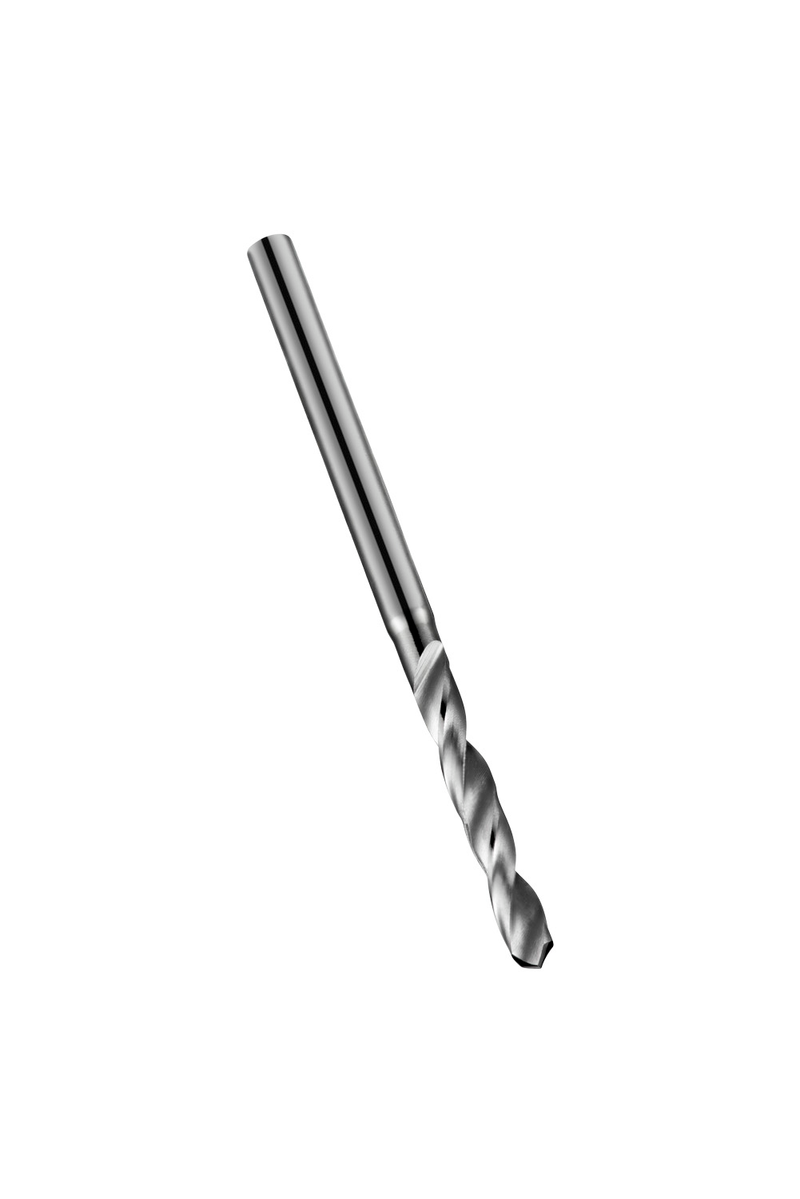

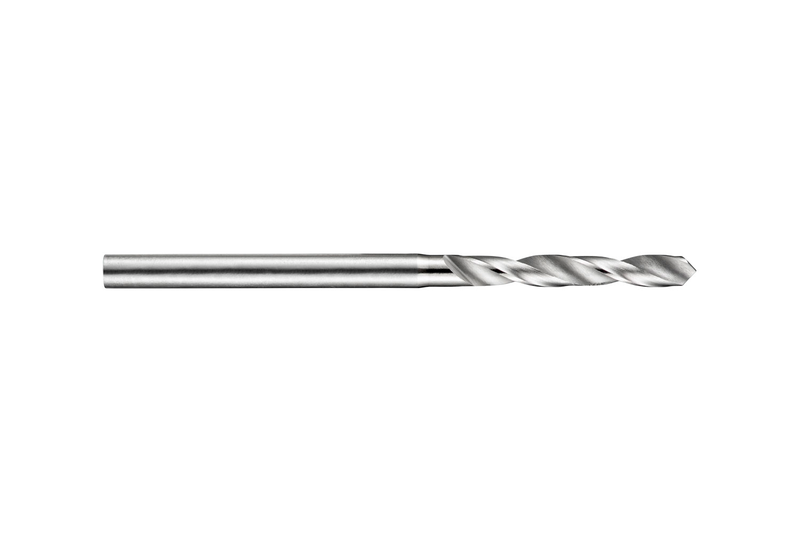

Micro foret à queue cylindrique, diamètre 0,25 mm avec une longueur totale de 25 mm et une longueur de coupe de 2,2 mm selon la norme DIN 1899 avec un angle de pointe de 118°, HSS-E à base de cobalt avec finition brillante pour un perçage de 2,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A720.25
GradeLumineux
Product Number5971298
Product FamilyA720

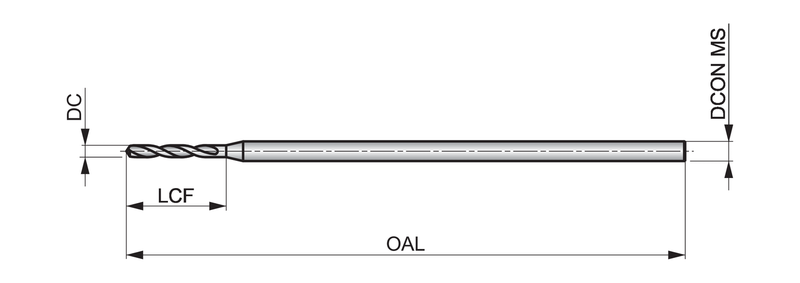

Dimensions
Cutting Diameter — in (DC)0.0098"
Cutting Diameter — mm (DC)0.25 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Flute Length — in (LCF)0.0866"
Flute Length — mm (LCF)2.2 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0394"
Connection Dia. — mm (DCON)1.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1899
Reference Numbers
EDP Number45022
EAN7320760045022
File Type Download
A720.25 — 3D Model STP Download
A720.25 — Line Drawing PDF Download
