A720.28
A720.28
A720.28
A720.28

A720.28

UGC DOR5971303
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.60 CAD - $16.60 CAD
$16.60 CAD
$16.60 CAD - $16.60 CAD
$16.60 CAD

Vendu en lots de : 10

Micro-foret à queue cylindrique, diamètre 0,28mm, longueur totale de 25mm et longueur de coupe de 2,2mm selon la norme DIN 1899 avec un angle de pointe de 118°, en HSS-E à base de cobalt avec finition brillante pour un perçage 2.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A720.28
GradeLumineux
Product Number5971303
Product FamilyA720

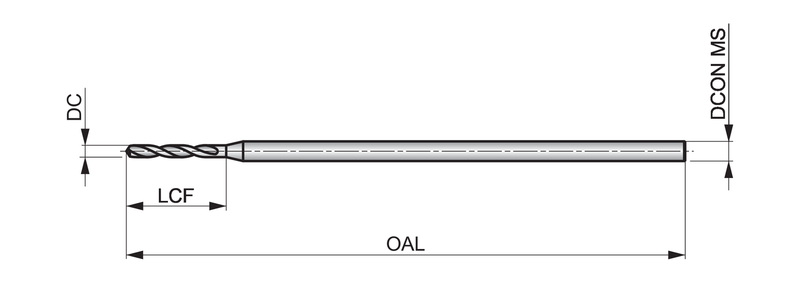

Dimensions
Cutting Diameter — in (DC)0.011"
Cutting Diameter — mm (DC)0.28 mm
Overall Length — in (OAL)0.9843"
Overall Length — mm (OAL)25.0 mm
Flute Length — in (LCF)0.0866"
Flute Length — mm (LCF)2.2 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0394"
Connection Dia. — mm (DCON)1.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1899
Reference Numbers
EDP Number45039
EAN7320760045039
File Type Download
A720.28 — 3D Model STP Download
A720.28 — Line Drawing PDF Download
