A5539.0
A5539.0
A5539.0
A5539.0

A5539.0

UGC DOR5971434
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$167.14 CAD - $167.14 CAD
$167.14 CAD
$167.14 CAD - $167.14 CAD
$167.14 CAD

Vendu en lots de : 1

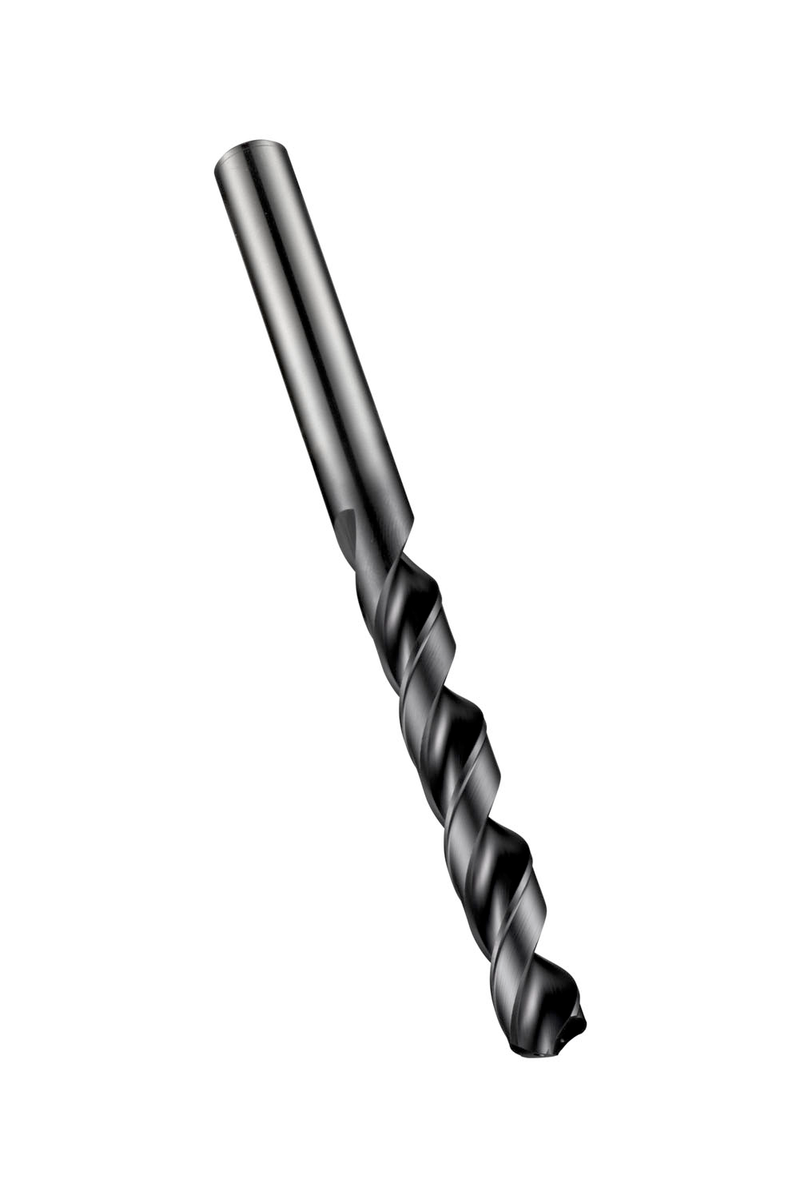

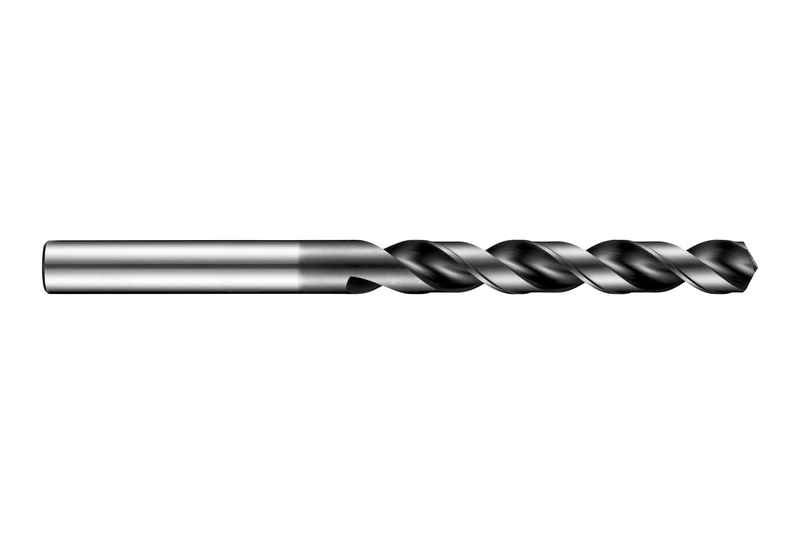

Foret haute performance à queue cylindrique D6535HA NC, diamètre 9mm avec une longueur totale de 130mm et une longueur de coupe de 75mm selon la norme DORMER avec une pointe conique de 130°, HSS-E à base de cobalt avec revêtement supérieur TiAlN par arrosage interne pour un perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A5539.0
GradeTiAlN/Sommet
Product Number5971434
Product FamilyA553

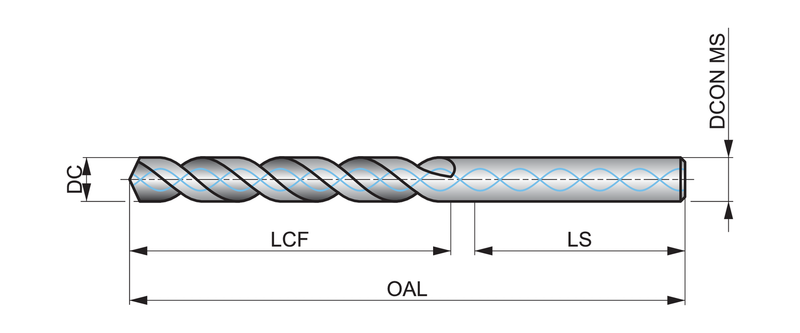

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord

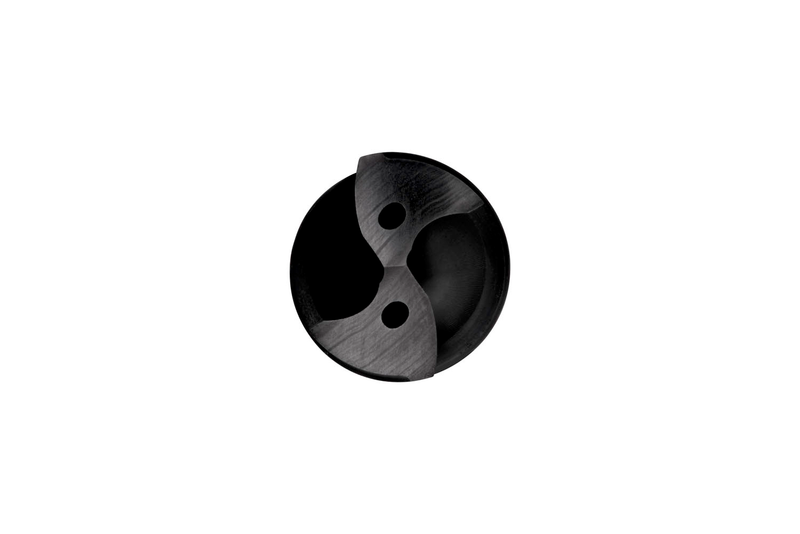

Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number391433
EAN7320760391433
File Type Download
A5539.0 — 3D Model STP Download
A5539.0 — Line Drawing PDF Download
