UGC DOR5971566
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$159.71 CAD - $159.71 CAD
$159.71 CAD
$159.71 CAD - $159.71 CAD
$159.71 CAD

Vendu en lots de : 1

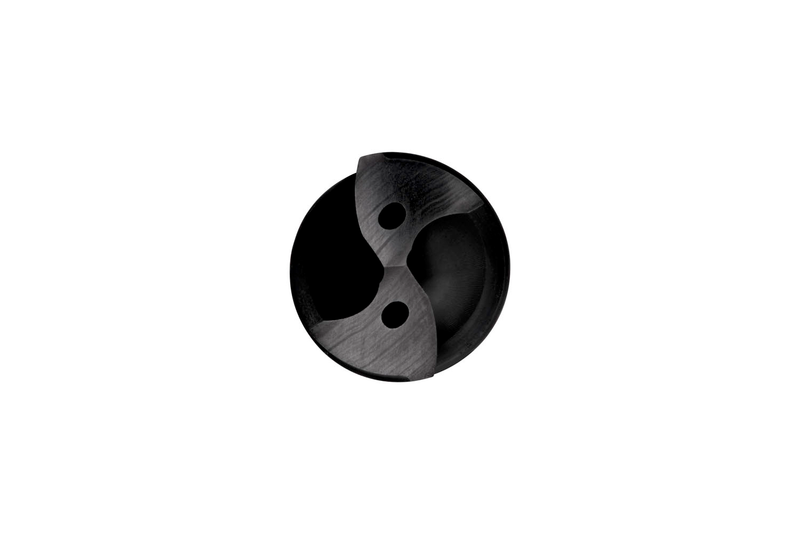

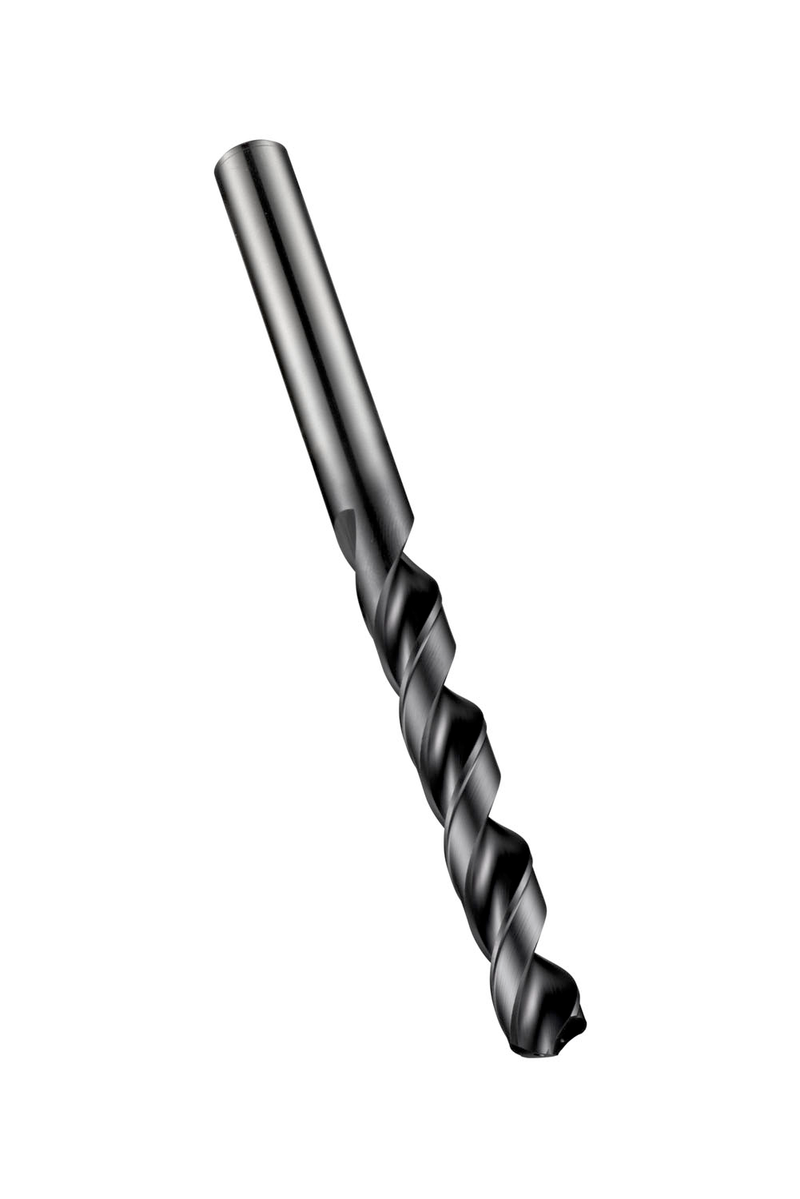

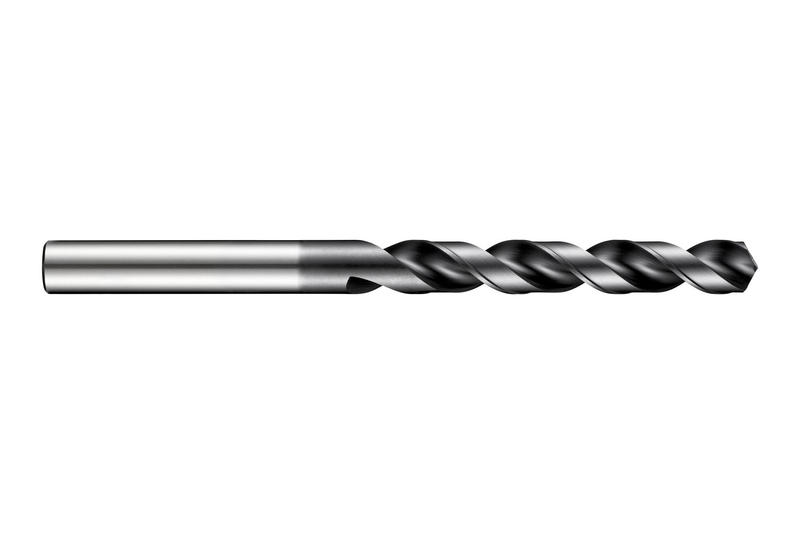

Foret haute performance à queue cylindrique DIN 6535HA NC, diamètre 6mm, longueur totale 79mm, longueur de coupe 43mm, selon la norme DORMER, avec une pointe en volute de 130°, en HSS-E au cobalt avec revêtement TiAlN-top et trous d'arrosage pour un perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A5536.0
GradeTiAlN/Sommet
Product Number5971566
Product FamilyA553

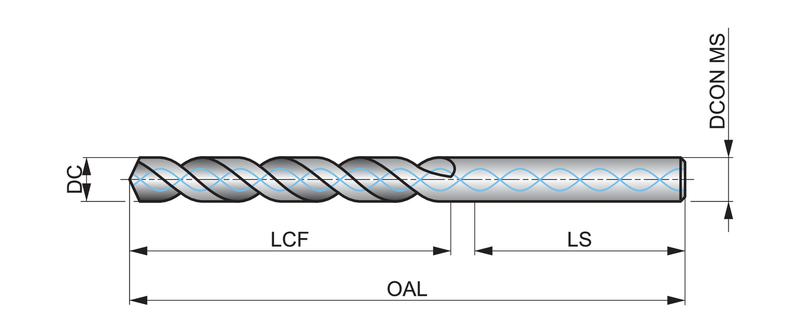

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.6929"
Flute Length — mm (LCF)43.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number391280
EAN7320760391280
File Type Download
A5536.0 — 3D Model STP Download
A5536.0 — Line Drawing PDF Download
