A9209/32
A9209/32
A9209/32
A9209/32

A9209/32

UGC DOR5971666
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.46 CAD - $17.46 CAD
$17.46 CAD
$17.46 CAD - $17.46 CAD
$17.46 CAD

Vendu en lots de : 1

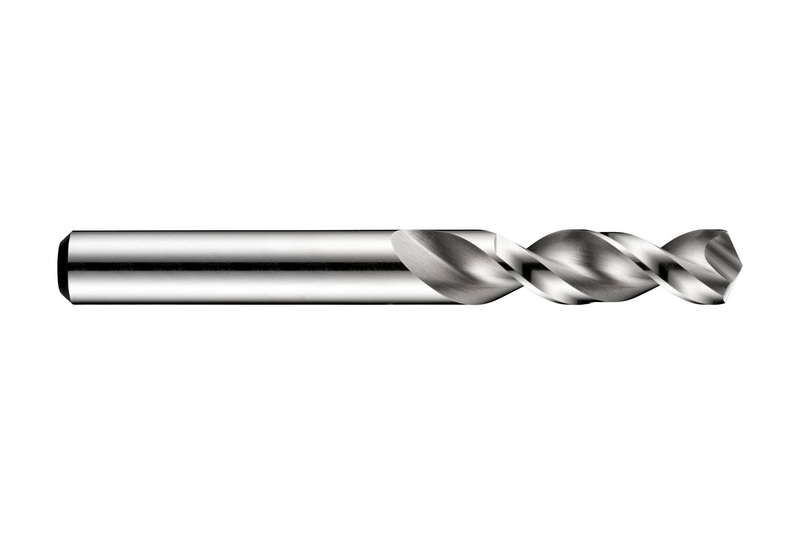

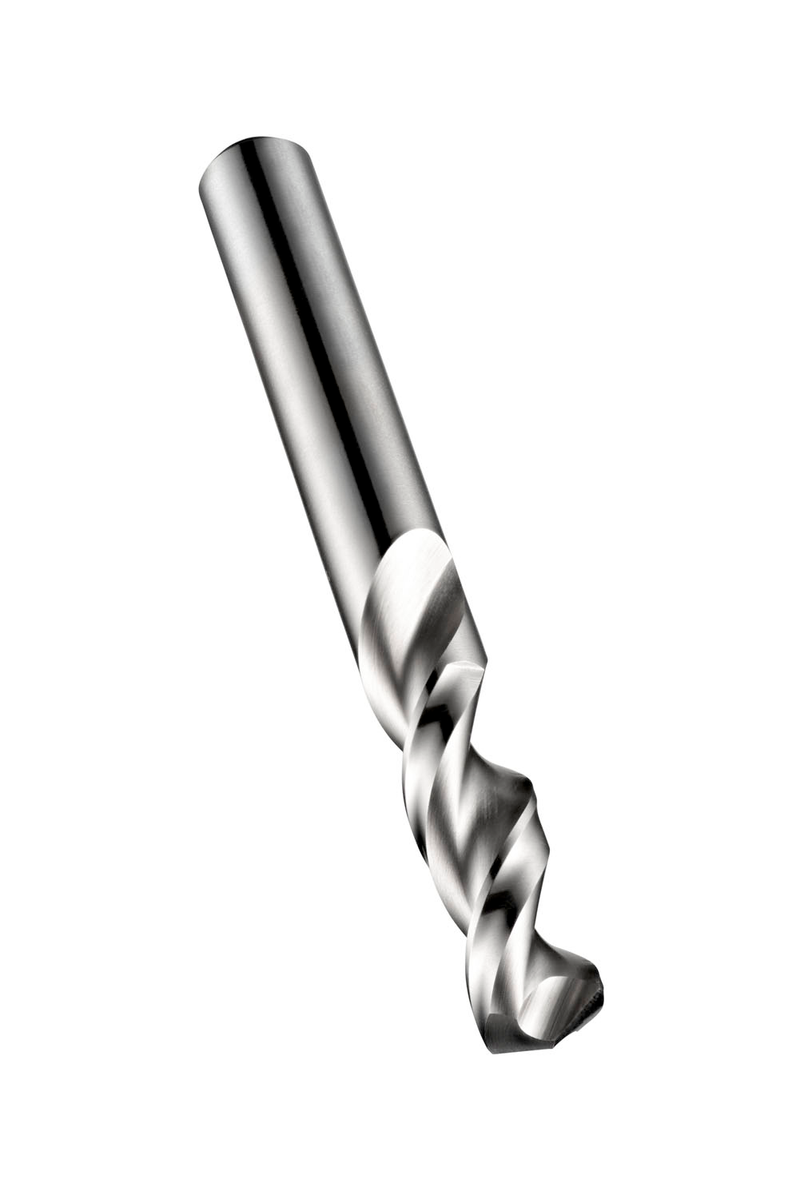

Foret PFX de longueur courte avec queue cylindrique, diamètre 0,2813" (9/32) avec une longueur totale de 68mm et une longueur de goujure de 38mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 3xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9209/32
GradeLumineux
Product Number5971666
Product FamilyA920

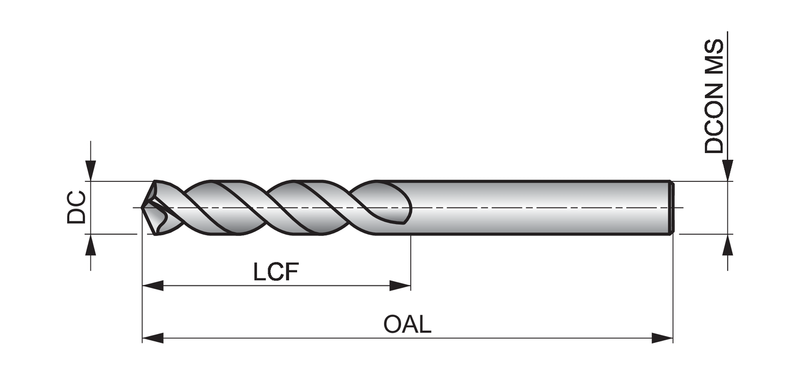

Dimensions
Cutting Diameter — in (DC)0.2813"
Cutting Diameter — mm (DC)7.14 mm
Cutting Diameter — Fractional9/32
Overall Length — in (OAL)2.6772"
Overall Length — mm (OAL)68.0 mm
Flute Length — in (LCF)1.4961"
Flute Length — mm (LCF)38.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.2811"
Connection Dia. — mm (DCON)7.14 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number51443
EAN7320760051443
File Type Download
A9209/32 — 3D Model STP Download
A9209/32 — Line Drawing PDF Download
