A9405.1
A9405.1
A9405.1
A9405.1

A9405.1

UGC DOR5972129
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.30 CAD - $31.30 CAD
$31.30 CAD
$31.30 CAD - $31.30 CAD
$31.30 CAD

Vendu en lots de : 1

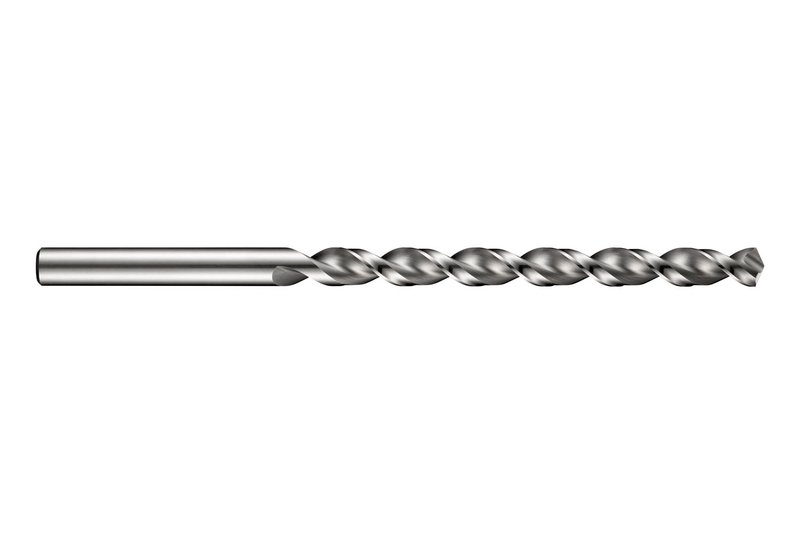

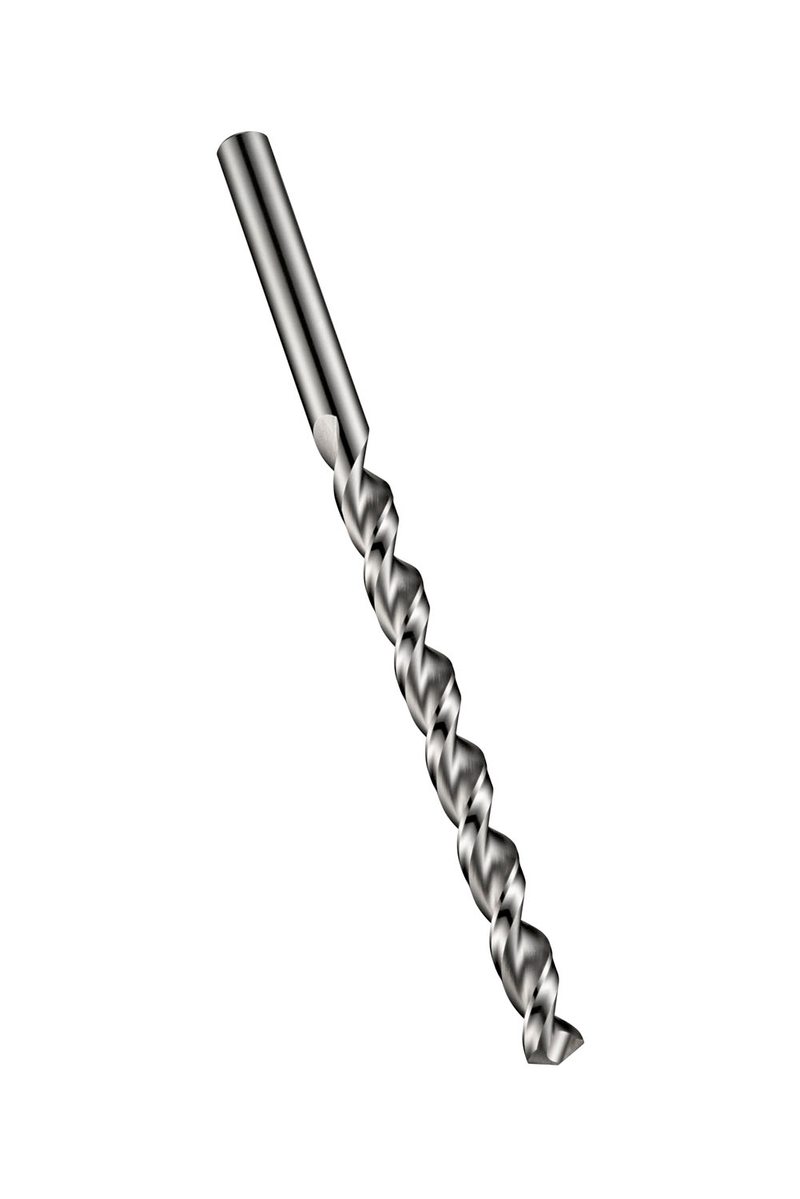

Foret PFX série longue à queue cylindrique, diamètre 5,1 mm avec une longueur totale de 132 mm et une longueur de coupe de 87 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour un perçage de 10xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9405.1
GradeLumineux
Product Number5972129
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.2008"
Cutting Diameter — mm (DC)5.1 mm
Overall Length — in (OAL)5.1969"
Overall Length — mm (OAL)132.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.2008"
Connection Dia. — mm (DCON)5.1 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number56820
EAN7320760056820
File Type Download
A9405.1 — 3D Model STP Download
A9405.1 — Line Drawing PDF Download
