UGC DOR5972133
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.53 CAD - $29.53 CAD
$29.53 CAD
$29.53 CAD - $29.53 CAD
$29.53 CAD

Vendu en lots de : 1

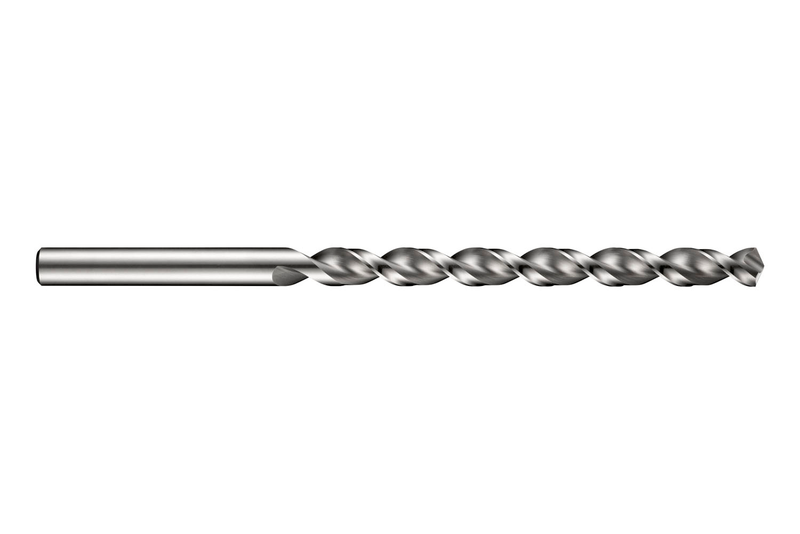

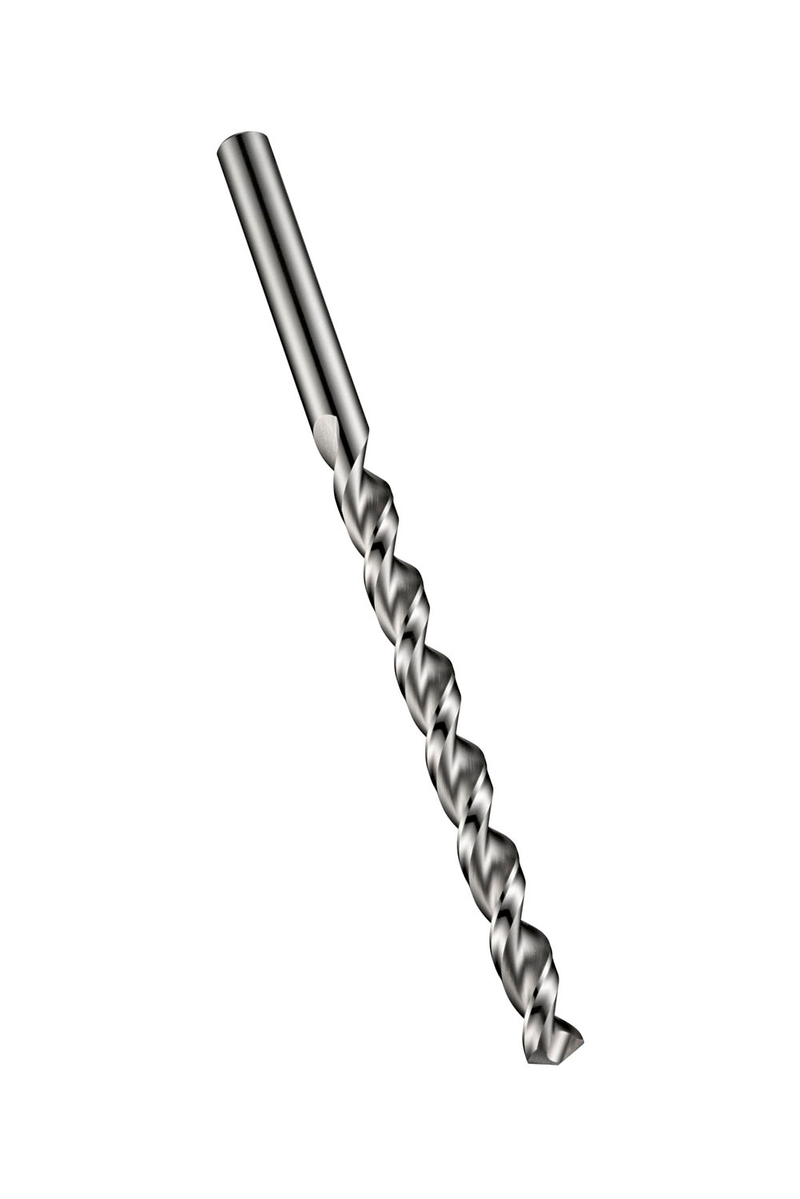

Foret série longue PFX à queue cylindrique, diamètre 5,2 mm, longueur totale 132 mm et longueur utile 87 mm selon les normes DIN/ANSI, avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9405.2
GradeLumineux
Product Number5972133
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.2047"
Cutting Diameter — mm (DC)5.2 mm
Overall Length — in (OAL)5.1969"
Overall Length — mm (OAL)132.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.2047"
Connection Dia. — mm (DCON)5.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number56974
EAN7320760056974
File Type Download
A9405.2 — 3D Model STP Download
A9405.2 — Line Drawing PDF Download
