UGC DOR5972193
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.81 CAD - $36.81 CAD
$36.81 CAD
$36.81 CAD - $36.81 CAD
$36.81 CAD

Vendu en lots de : 1

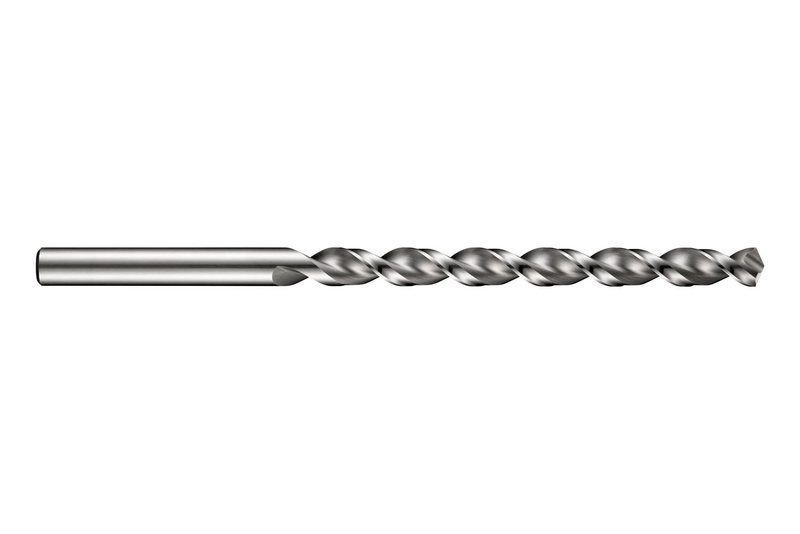

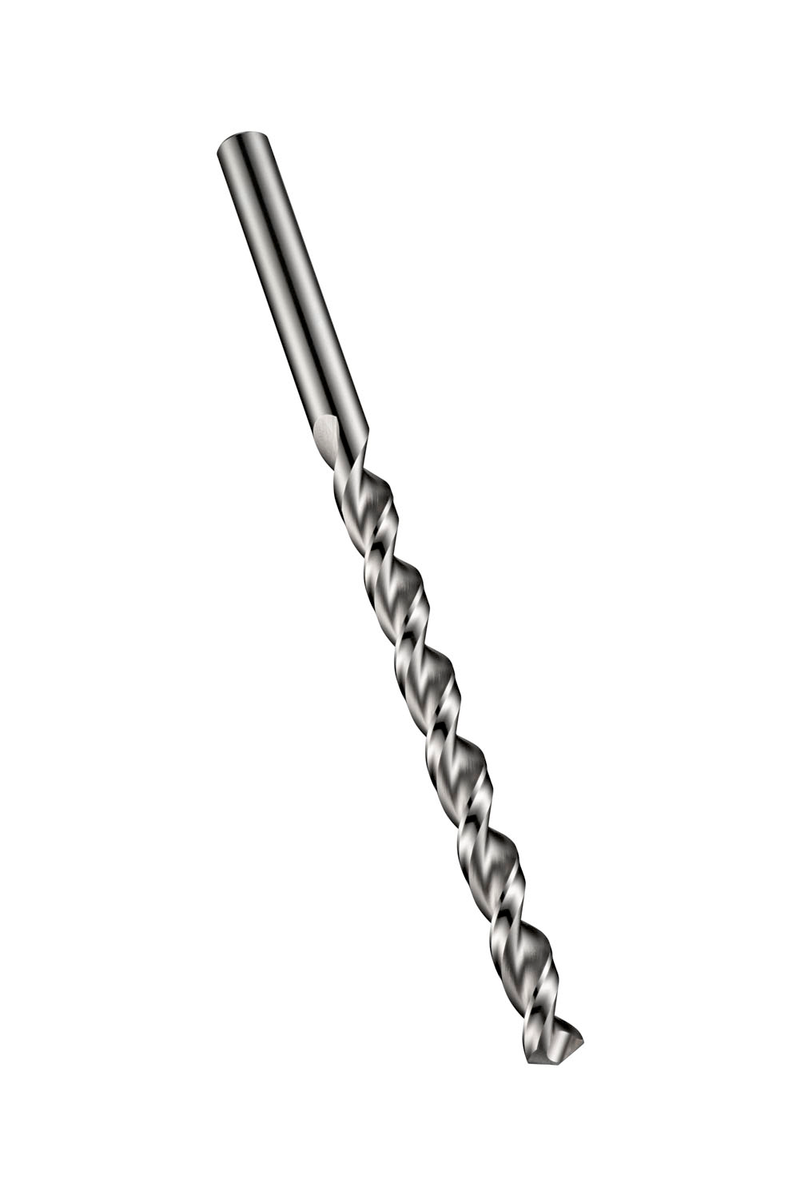

Foret PFX série longue à queue cylindrique, diamètre 6,2 mm avec une longueur totale de 148 mm et une longueur de coupe de 97 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9406.2
GradeLumineux
Product Number5972193
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.2441"
Cutting Diameter — mm (DC)6.2 mm
Overall Length — in (OAL)5.8268"
Overall Length — mm (OAL)148.0 mm
Flute Length — in (LCF)3.8189"
Flute Length — mm (LCF)97.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.2441"
Connection Dia. — mm (DCON)6.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number58145
EAN7320760058145
File Type Download
A9406.2 — 3D Model STP Download
A9406.2 — Line Drawing PDF Download
