UGC DOR5972208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.00 CAD - $17.00 CAD
$17.00 CAD
$17.00 CAD - $17.00 CAD
$17.00 CAD

Vendu en lots de : 1

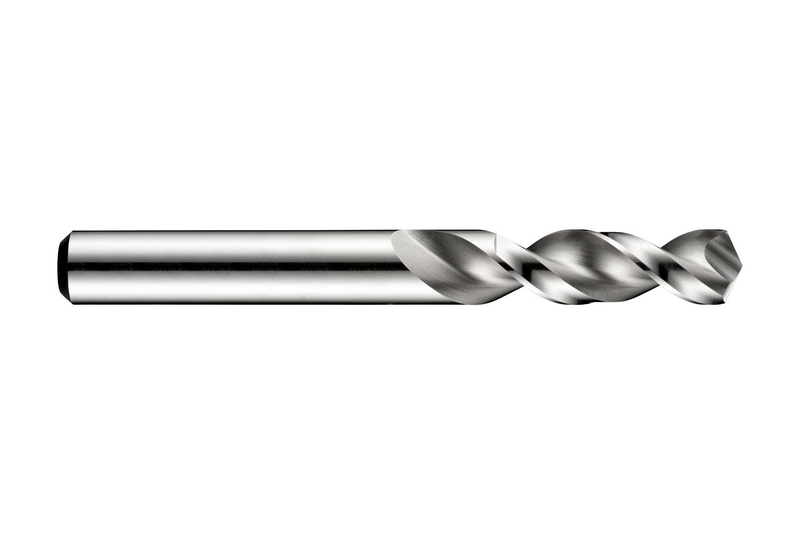

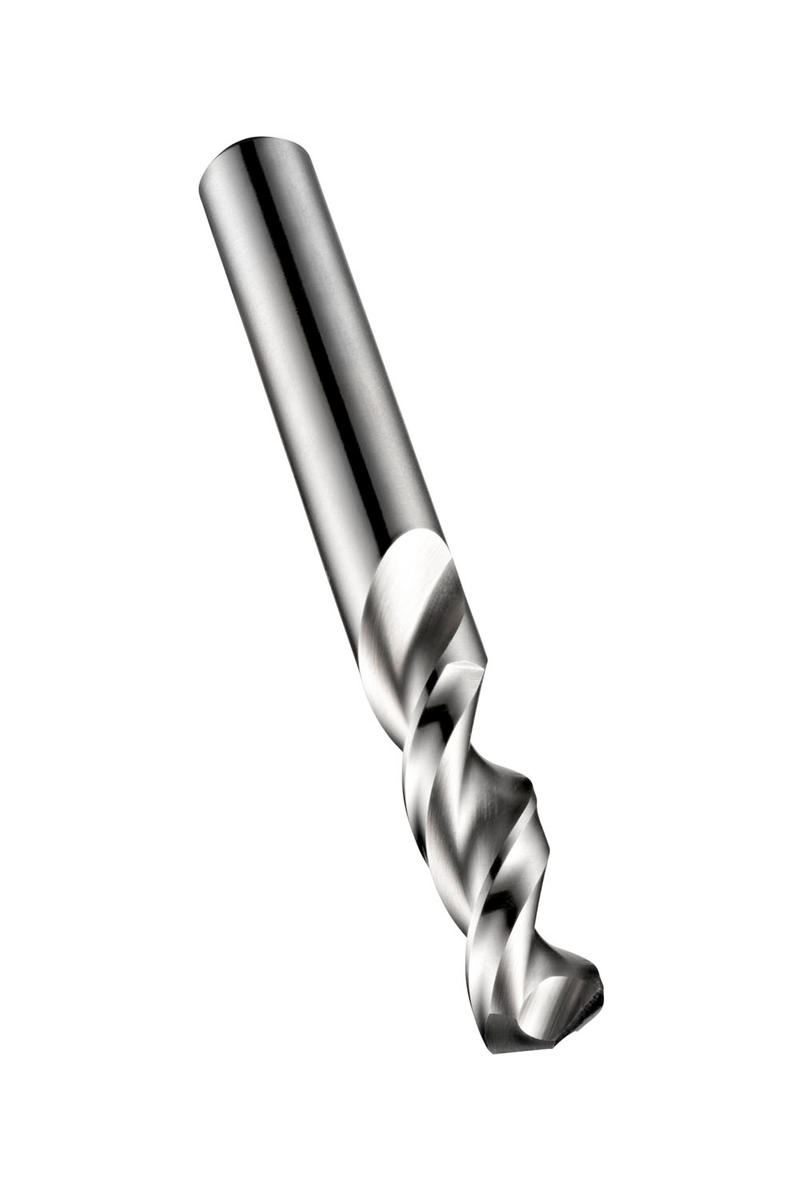

Foret PFX de longueur courte avec queue cylindrique, diamètre 2,35 mm avec une longueur totale de 43 mm et une longueur de goujure de 14 mm selon les normes DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 3xD sans débourrage dans l'acier, l'acier inoxydable et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9202.35
GradeLumineux
Product Number5972208
Product FamilyA920

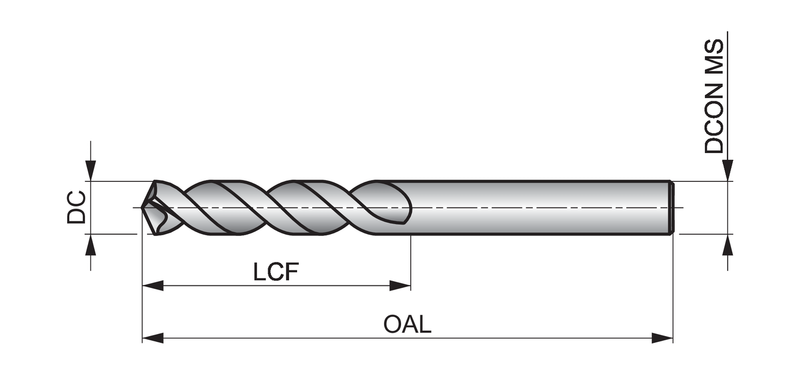

Dimensions
Cutting Diameter — in (DC)0.0925"
Cutting Diameter — mm (DC)2.35 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.5512"
Flute Length — mm (LCF)14.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.0925"
Connection Dia. — mm (DCON)2.35 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number211601
EAN7320760211601
File Type Download
A9202.35 — 3D Model STP Download
A9202.35 — Line Drawing PDF Download
