UGC DOR5972301
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 1

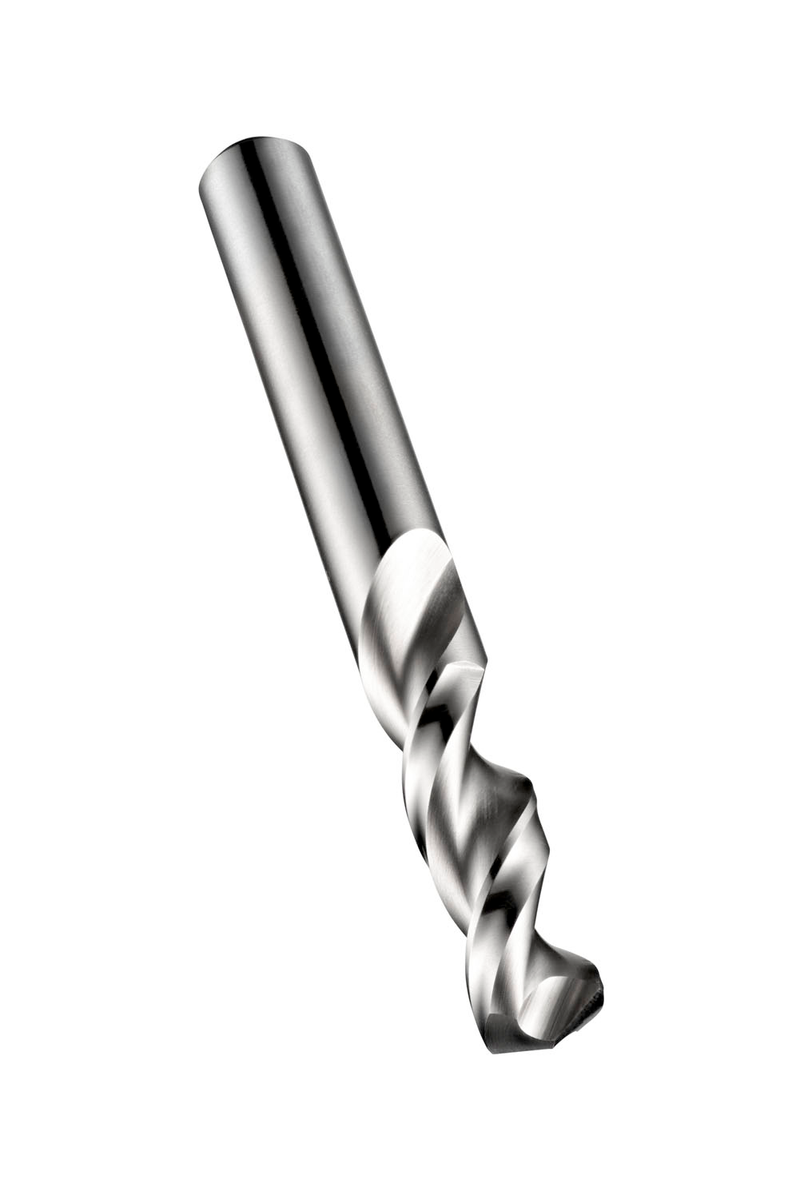

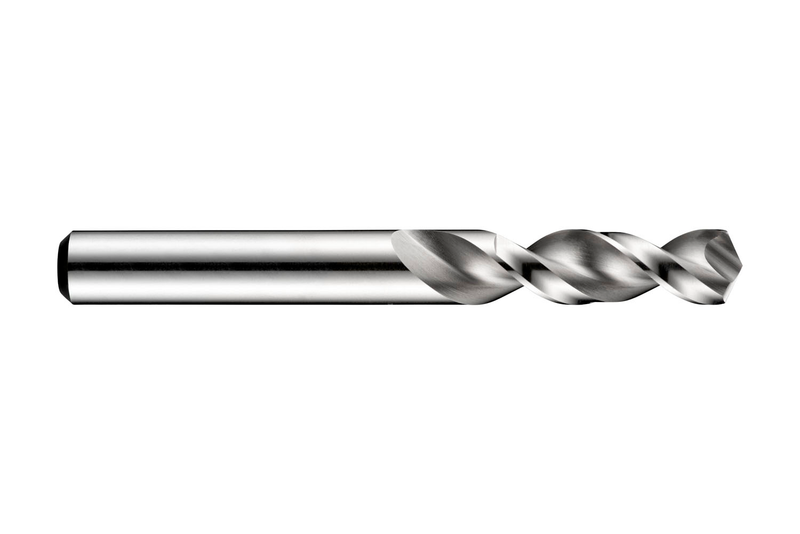

Foret PFX court à queue cylindrique, diamètre 3,5mm avec une longueur totale de 52mm et une longueur de coupe de 20mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour le perçage de 3xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9203.5
GradeLumineux
Product Number5972301
Product FamilyA920

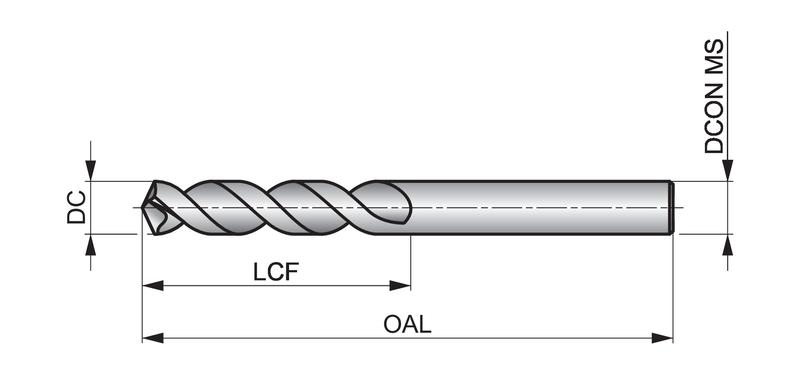

Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number50927
EAN7320760050927
File Type Download
A9203.5 — 3D Model STP Download
A9203.5 — Line Drawing PDF Download
