A95210.0
A95210.0
A95210.0
A95210.0

A95210.0

UGC DOR5972462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$207.09 CAD - $207.09 CAD
$207.09 CAD
$207.09 CAD - $207.09 CAD
$207.09 CAD

Vendu en lots de : 1

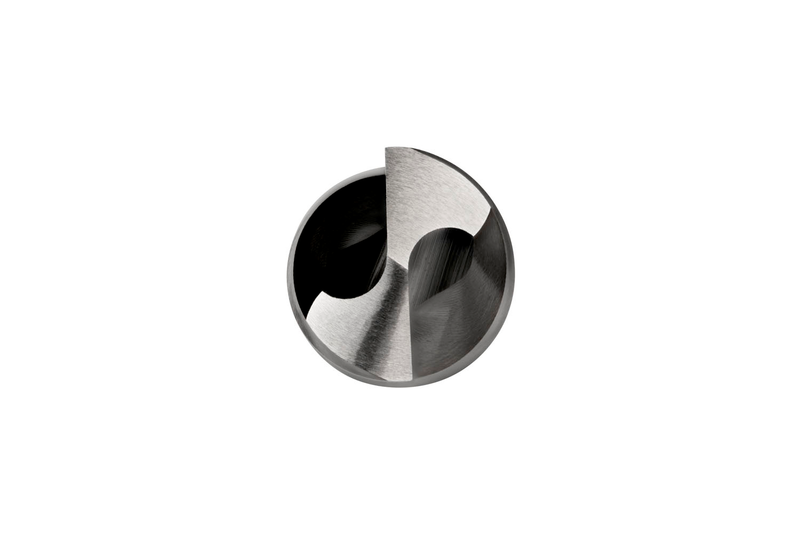

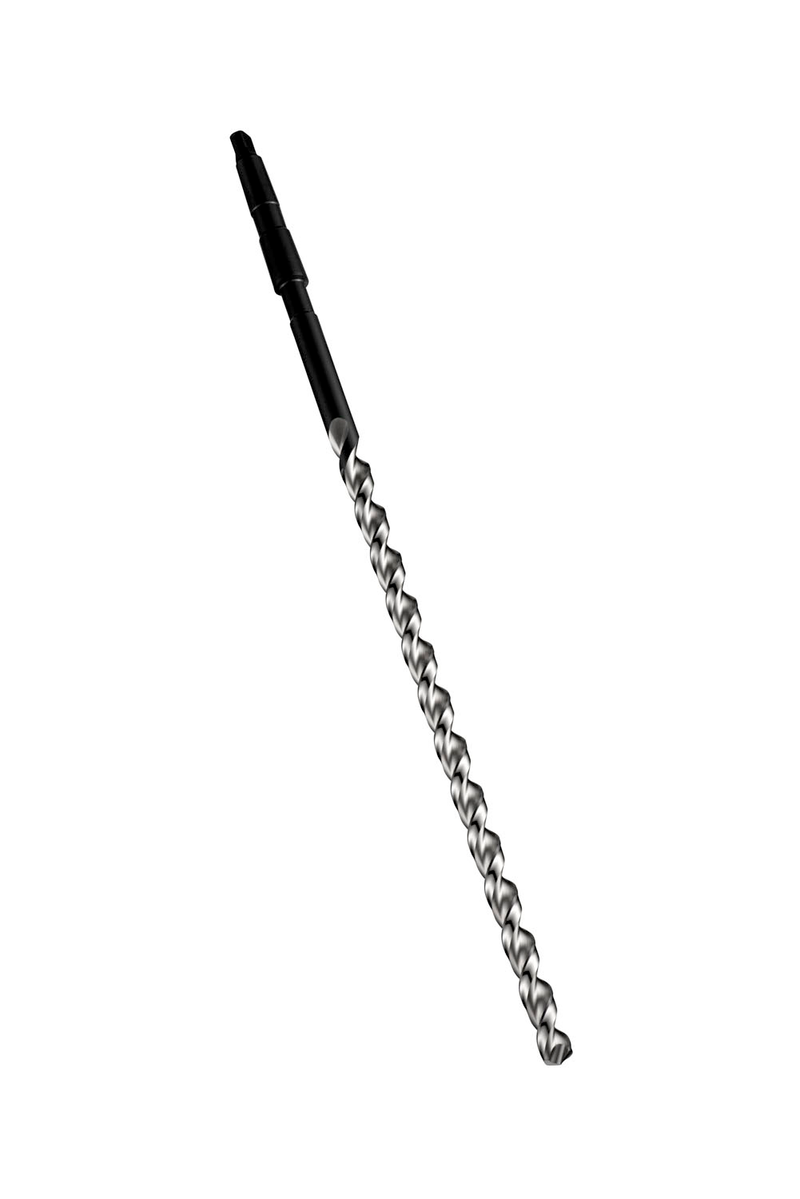

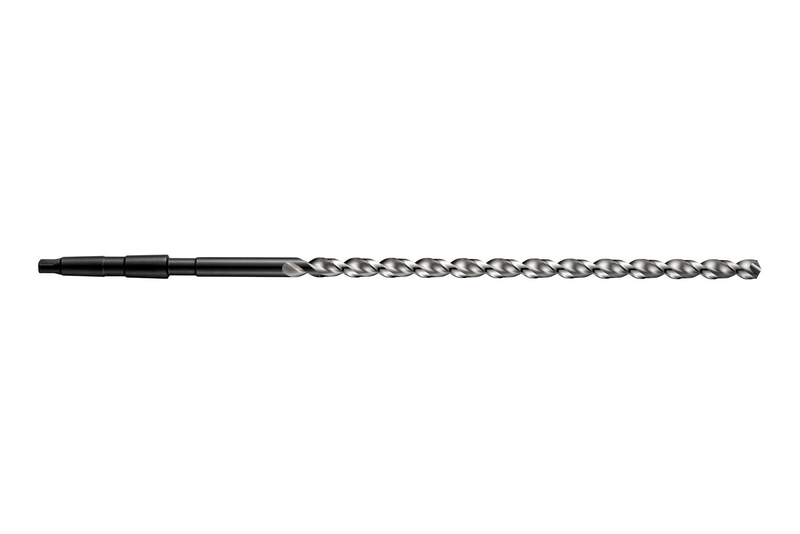

Foret extra long à queue conique, diamètre 10 mm avec une longueur totale de 360 mm et une longueur de coupe de 235 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, HSS avec finition brillante + revenu à la vapeur, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95210.0
GradeLumineux/ST
Product Number5972462
Product FamilyA952

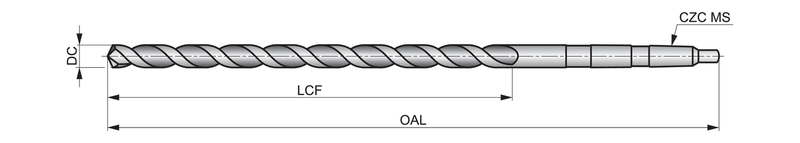

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)14.1732"
Overall Length — mm (OAL)360.0 mm
Flute Length — in (LCF)9.252"
Flute Length — mm (LCF)235.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number419885
EAN7320760419885
File Type Download
A95210.0 — 3D Model STP Download
A95210.0 — Line Drawing PDF Download
