UGC DOR5972470
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$233.80 CAD - $233.80 CAD
$233.80 CAD
$233.80 CAD - $233.80 CAD
$233.80 CAD

Vendu en lots de : 1

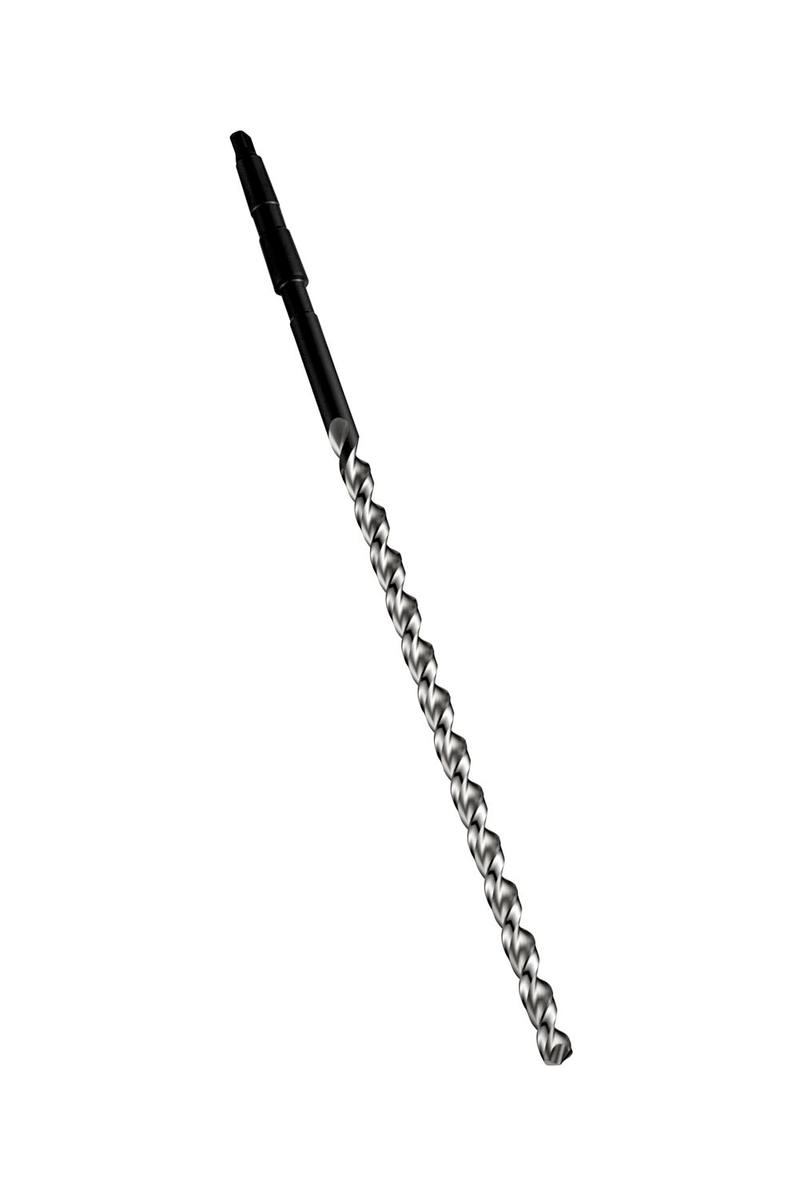

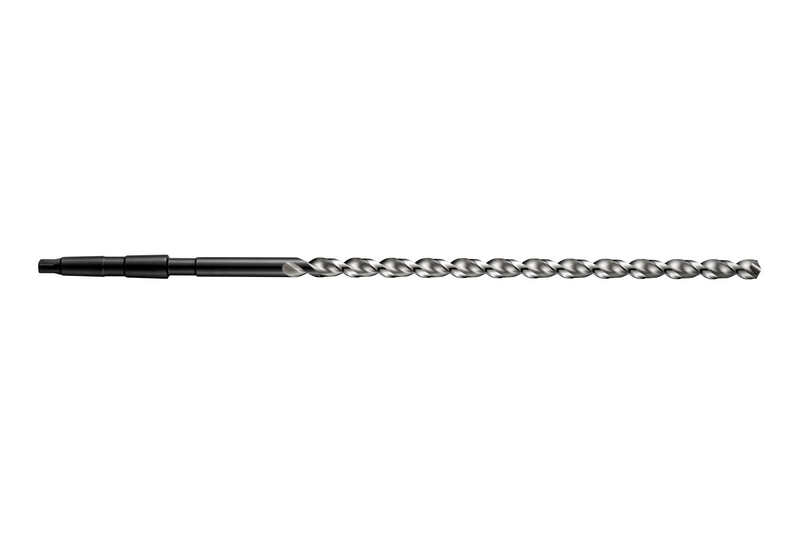

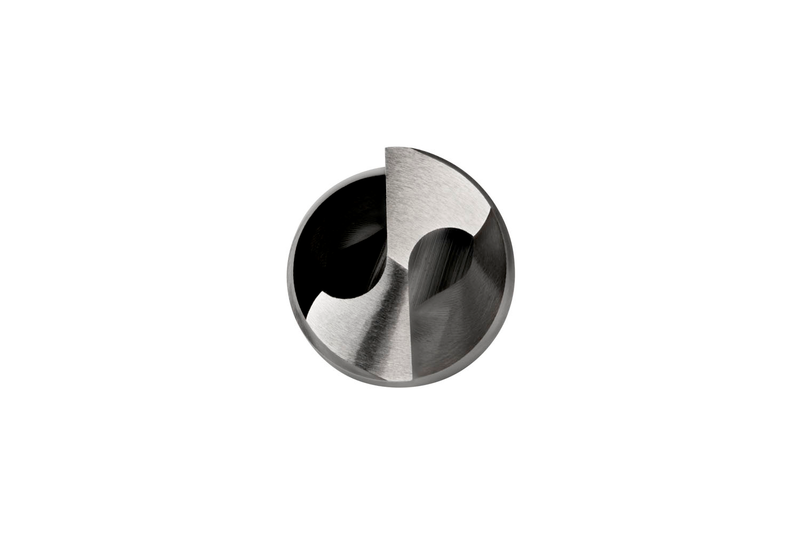

Foret extra long à queue conique, diamètre 11 mm, longueur totale 375 mm et longueur de coupe 250 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, en HSS avec finition brillante + revenu vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95211.0
GradeLumineux/T° de couleur
Product Number5972470
Product FamilyA952

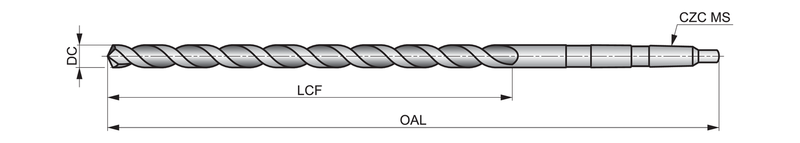

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)14.7638"
Overall Length — mm (OAL)375.0 mm
Flute Length — in (LCF)9.8425"
Flute Length — mm (LCF)250.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number419908
EAN7320760419908
File Type Download
A95211.0 — 3D Model STP Download
A95211.0 — Line Drawing PDF Download
