A95214.0
A95214.0
A95214.0
A95214.0

A95214.0

UGC DOR5972495
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$254.31 CAD - $254.31 CAD
$254.31 CAD
$254.31 CAD - $254.31 CAD
$254.31 CAD

Vendu en lots de : 1

Foret extra-long à queue conique, diamètre 14 mm avec une longueur totale de 410 mm et une longueur utile de 275 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, HSS avec finition brillante + revenu vapeur, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95214.0
GradeClair/ST
Product Number5972495
Product FamilyA952
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)16.1417"
Overall Length — mm (OAL)410.0 mm
Flute Length — in (LCF)10.8268"
Flute Length — mm (LCF)275.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number419953
EAN7320760419953
File Type Download
A95214.0 — 3D Model STP Download

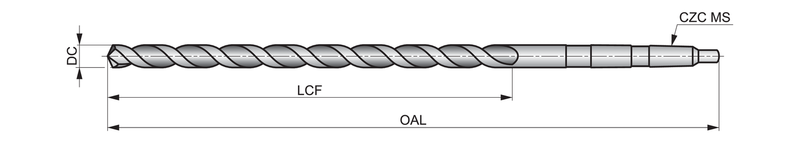

A95214.0 — Line Drawing PDF Download
