A95215.0
A95215.0
A95215.0
A95215.0

A95215.0

UGC DOR5972507
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$277.21 CAD - $277.21 CAD
$277.21 CAD
$277.21 CAD - $277.21 CAD
$277.21 CAD

Vendu en lots de : 1

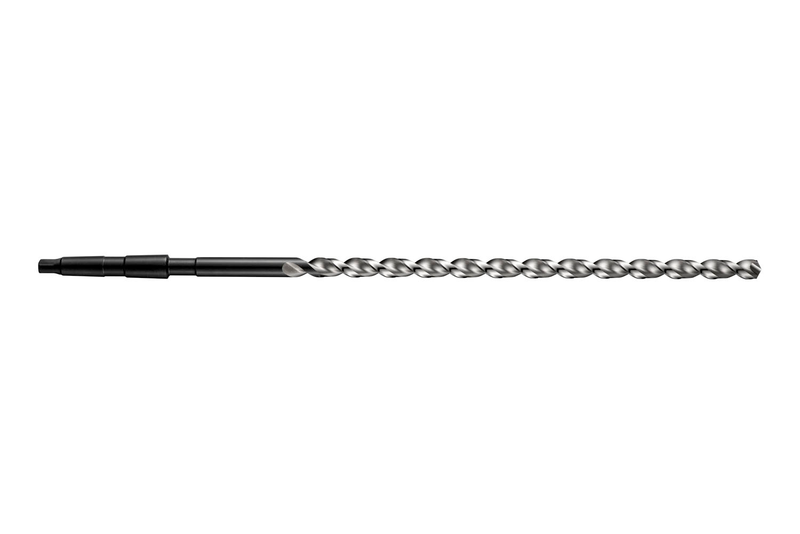

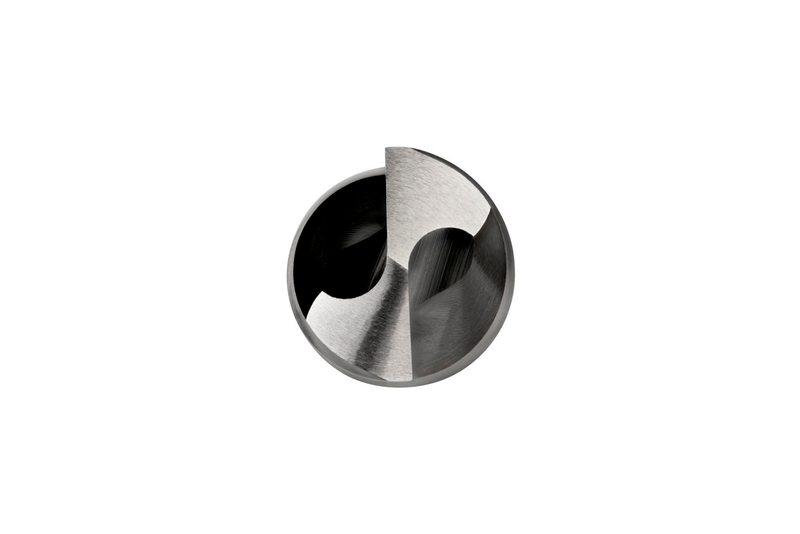

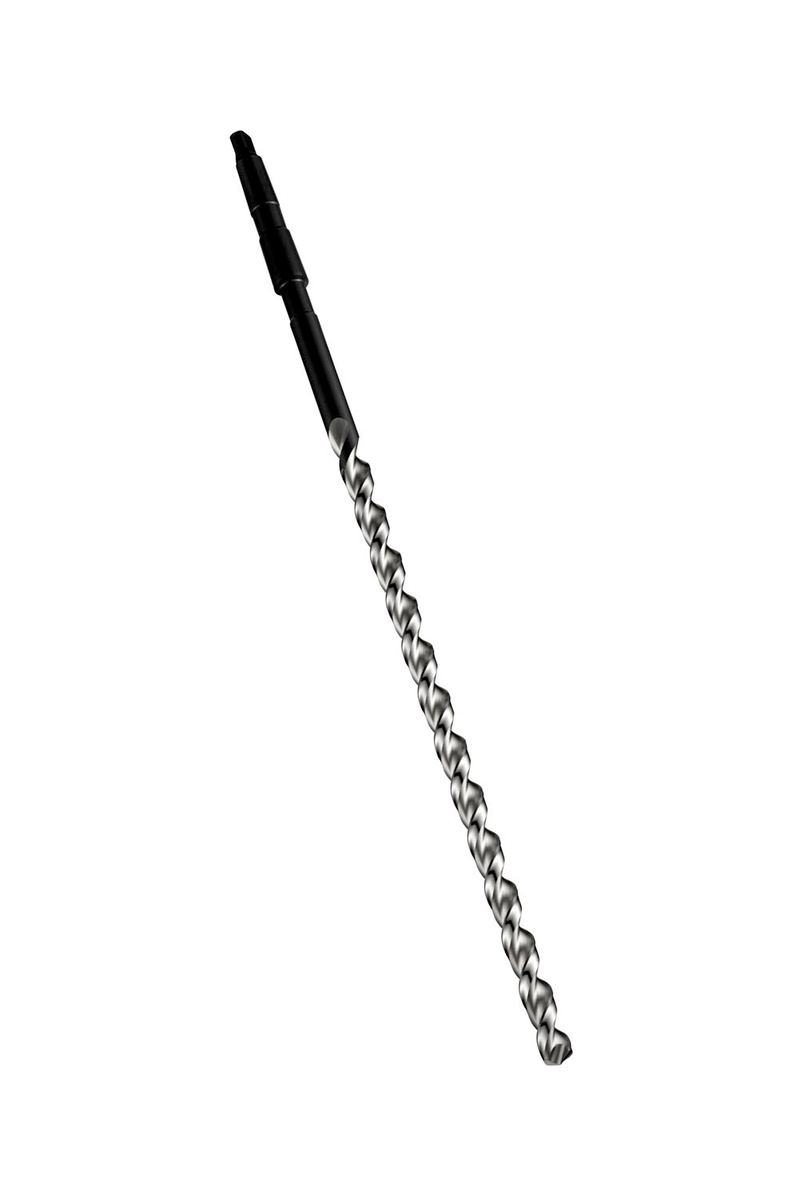

Foret extra-long à queue conique, diamètre 15mm avec une longueur totale de 425mm et une longueur de coupe de 275mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, HSS avec finition brillante + revenu vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95215.0
GradeLumineux/ST
Product Number5972507
Product FamilyA952

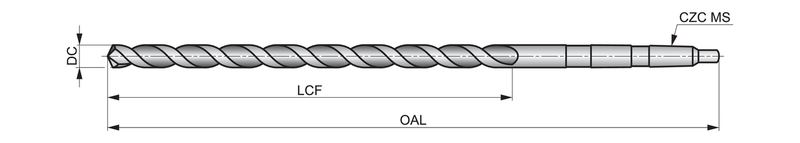

Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)16.7323"
Overall Length — mm (OAL)425.0 mm
Flute Length — in (LCF)10.8268"
Flute Length — mm (LCF)275.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number419977
EAN7320760419977
File Type Download
A95215.0 — 3D Model STP Download
A95215.0 — Line Drawing PDF Download
