UGC DOR5972515
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$242.39 CAD - $242.39 CAD
$242.39 CAD
$242.39 CAD - $242.39 CAD
$242.39 CAD

Vendu en lots de : 1

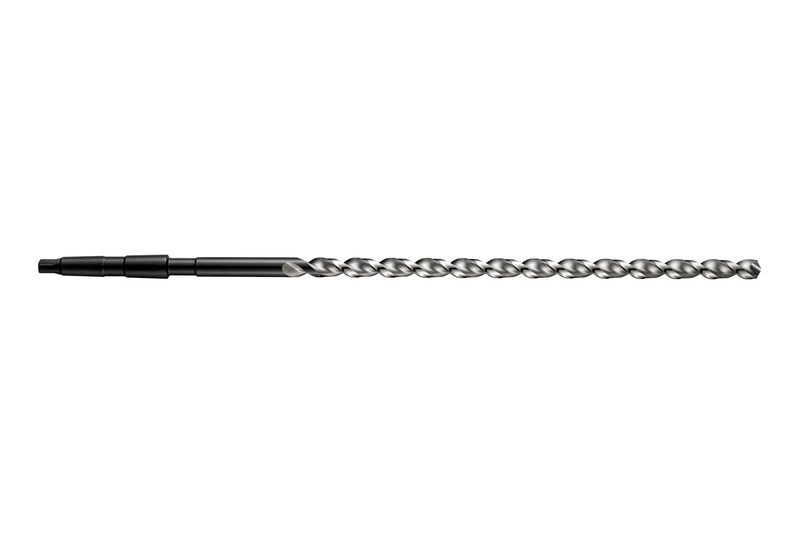

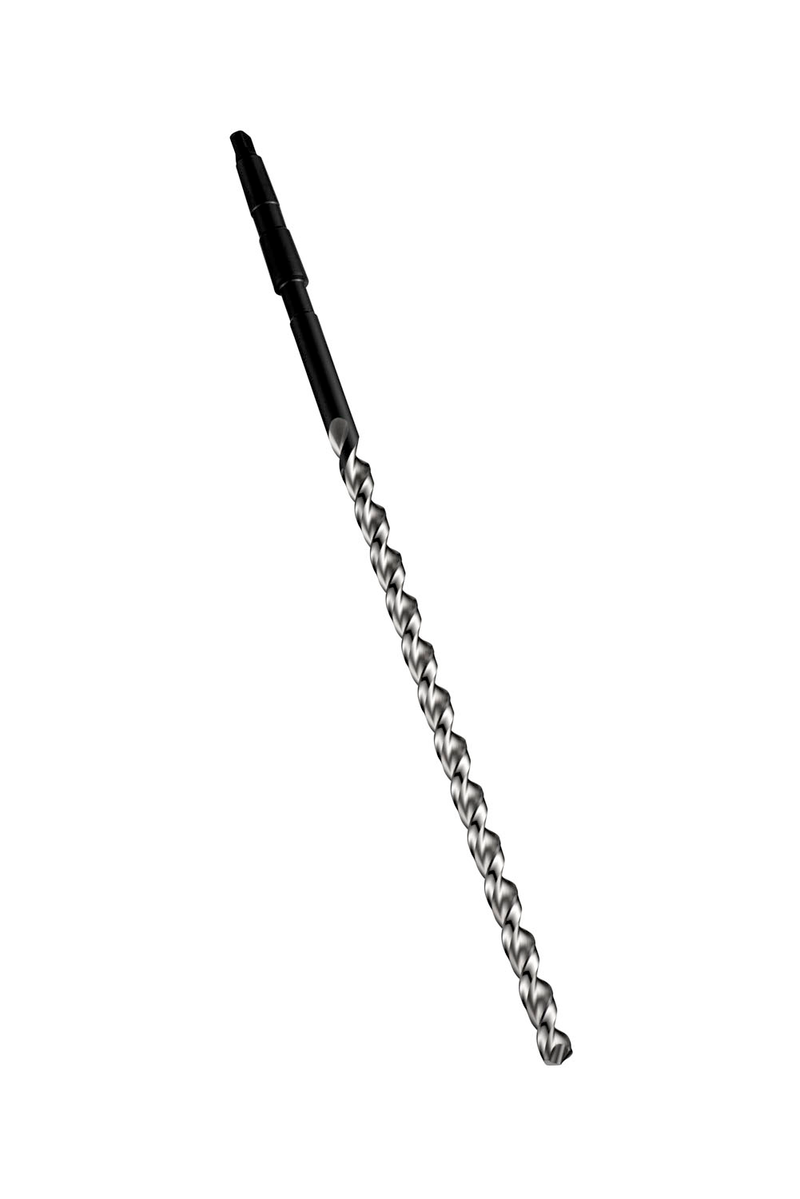

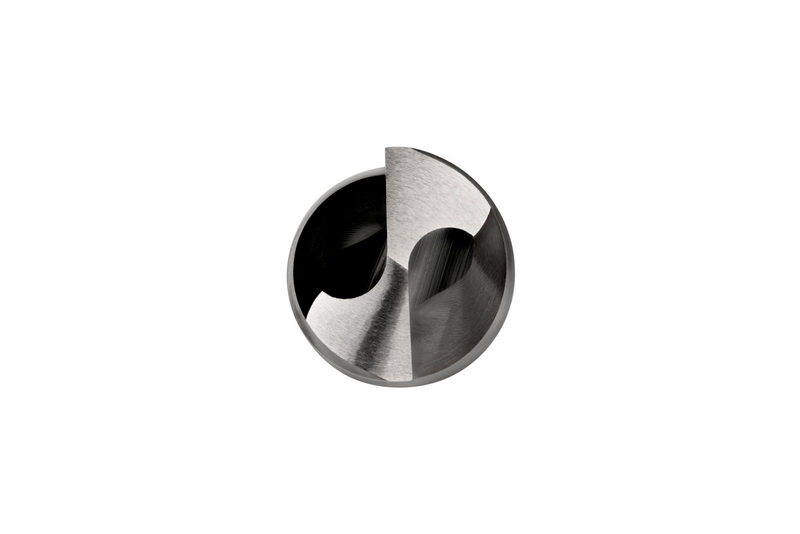

Foret extra-long à queue conique, diamètre 16 mm, longueur totale 445 mm et longueur utile 295 mm selon la norme DIN 1870 (2) avec angle de pointe 130°, HSS avec finition brillante + revenue vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95216.0
GradeLumineux/ST
Product Number5972515
Product FamilyA952

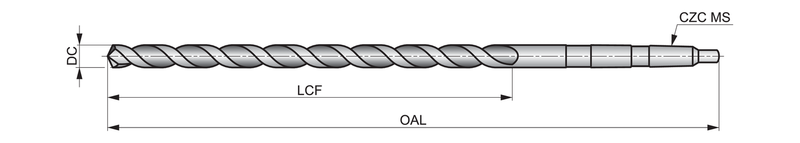

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)17.5197"
Overall Length — mm (OAL)445.0 mm
Flute Length — in (LCF)11.6142"
Flute Length — mm (LCF)295.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420195
EAN7320760420195
File Type Download
A95216.0 — 3D Model STP Download
A95216.0 — Line Drawing PDF Download
