A9201/16
A9201/16
A9201/16
A9201/16

A9201/16

UGC DOR5972536
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.50 CAD - $10.50 CAD
$10.50 CAD
$10.50 CAD - $10.50 CAD
$10.50 CAD

Vendu en lots de : 1

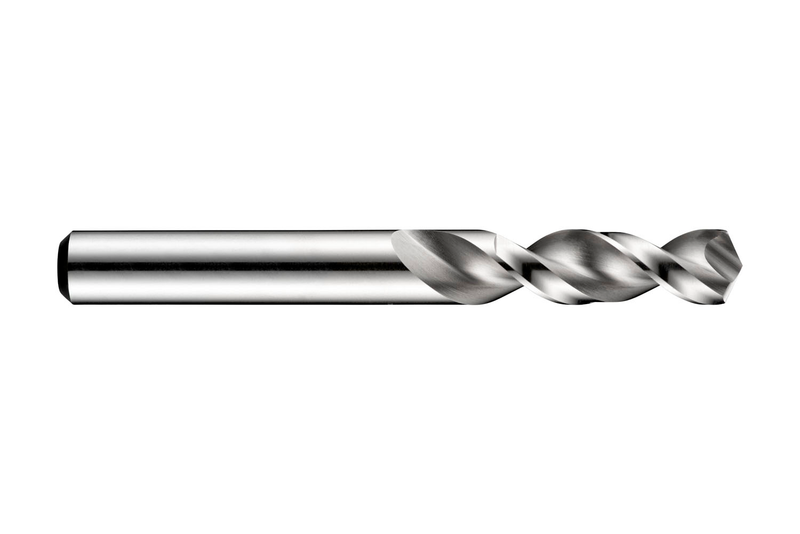

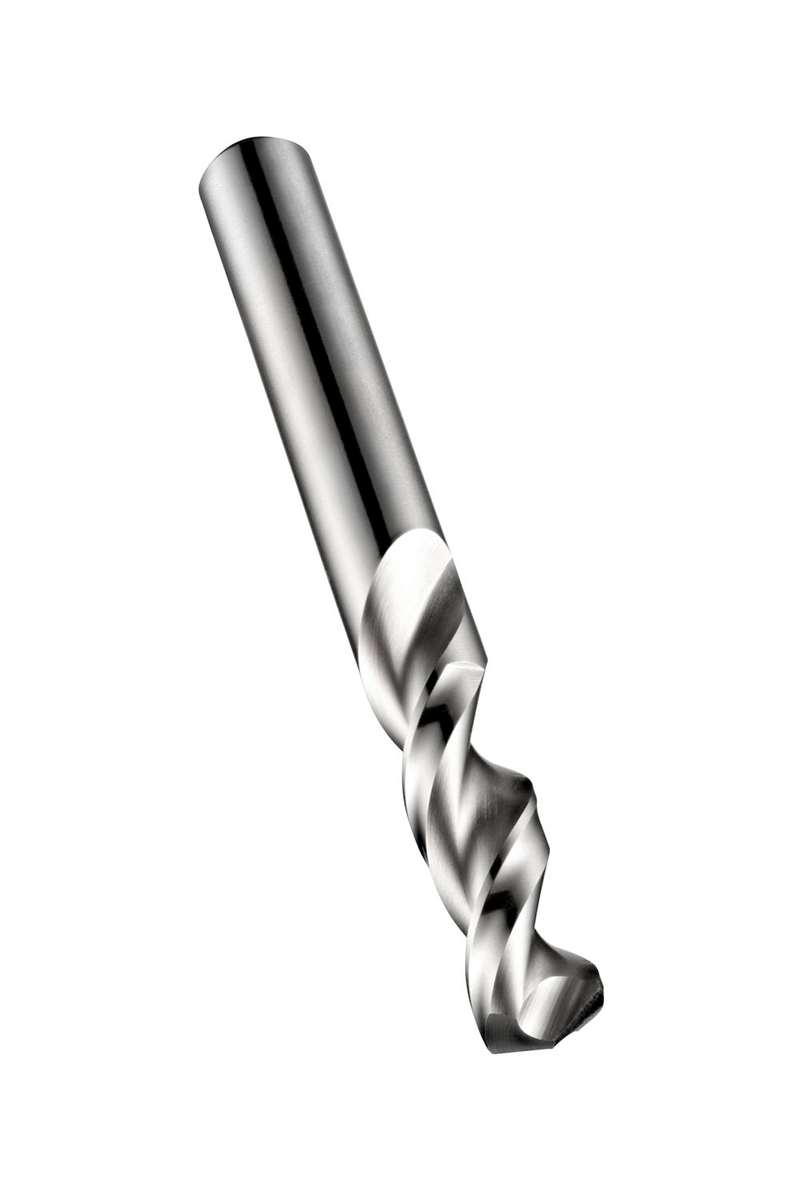

Foret PFX longueur courte avec queue cylindrique, diamètre 0,0625" (1/16) avec une longueur totale de 41 mm et une longueur de coupe de 16 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 3xD sans débourrage dans l'acier, l'acier inoxydable et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9201/16
GradeLumineux
Product Number5972536
Product FamilyA920

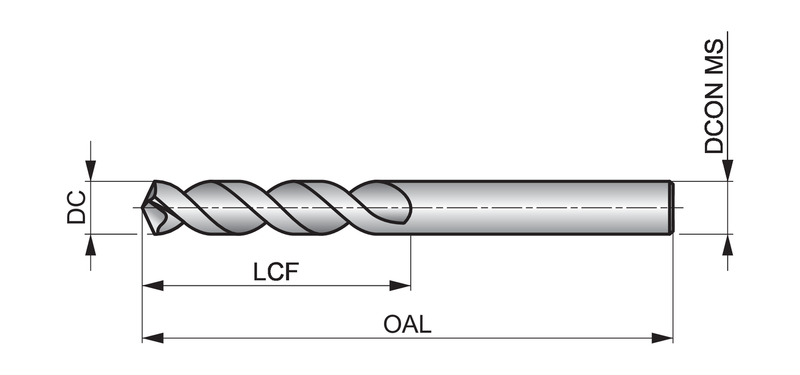

Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.0626"
Connection Dia. — mm (DCON)1.59 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number50644
EAN7320760050644
File Type Download
A9201/16 — 3D Model STP Download
A9201/16 — Line Drawing PDF Download
