UGC DOR5972538
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$406.53 CAD - $406.53 CAD
$406.53 CAD
$406.53 CAD - $406.53 CAD
$406.53 CAD

Vendu en lots de : 1

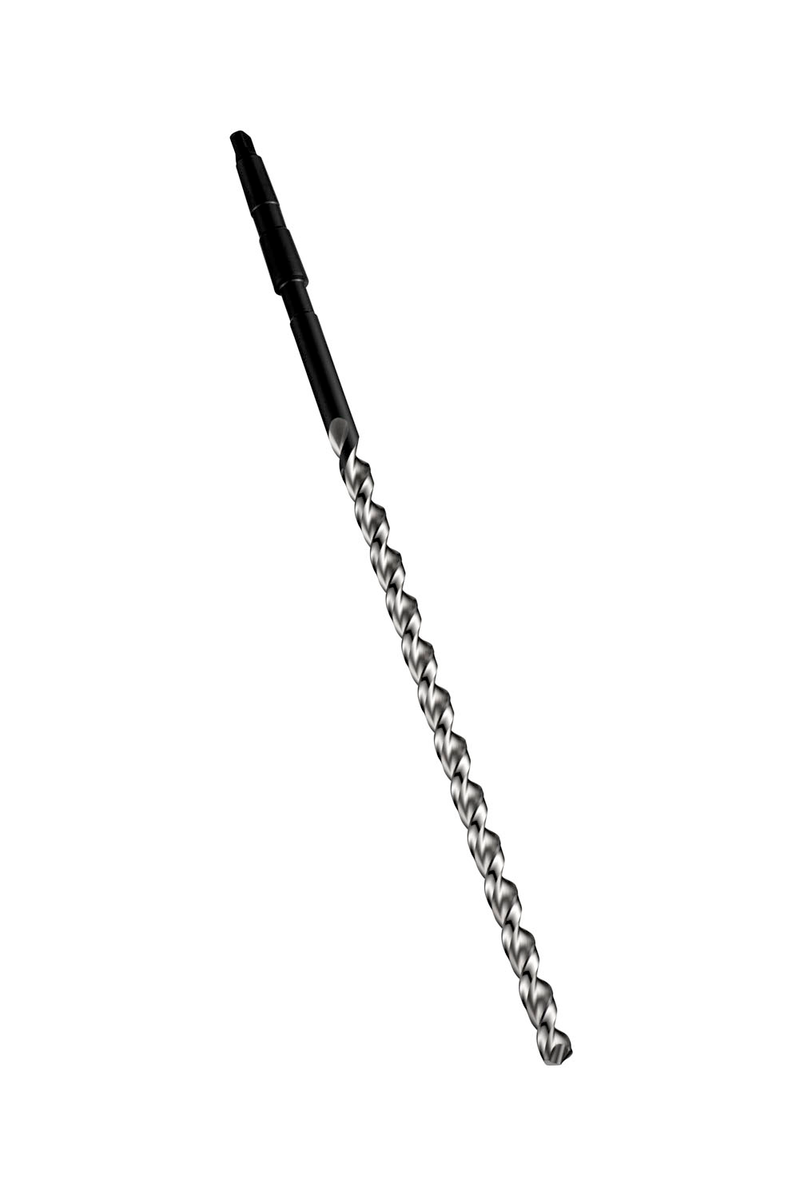

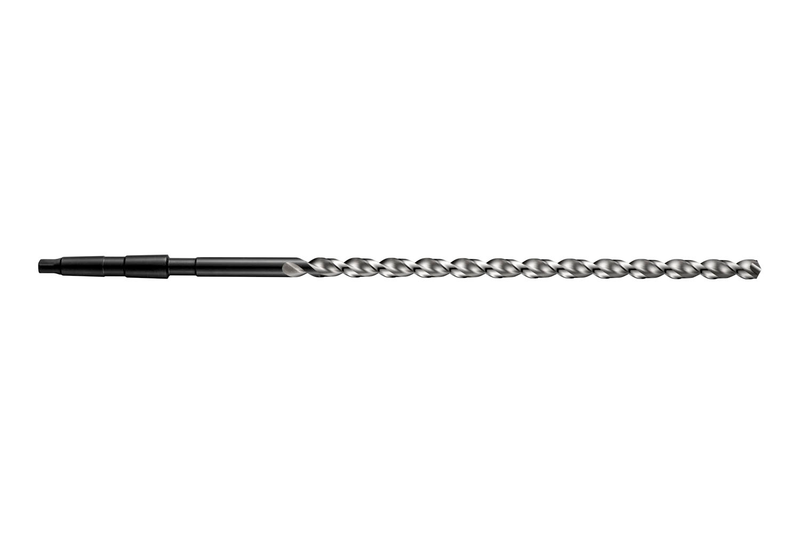

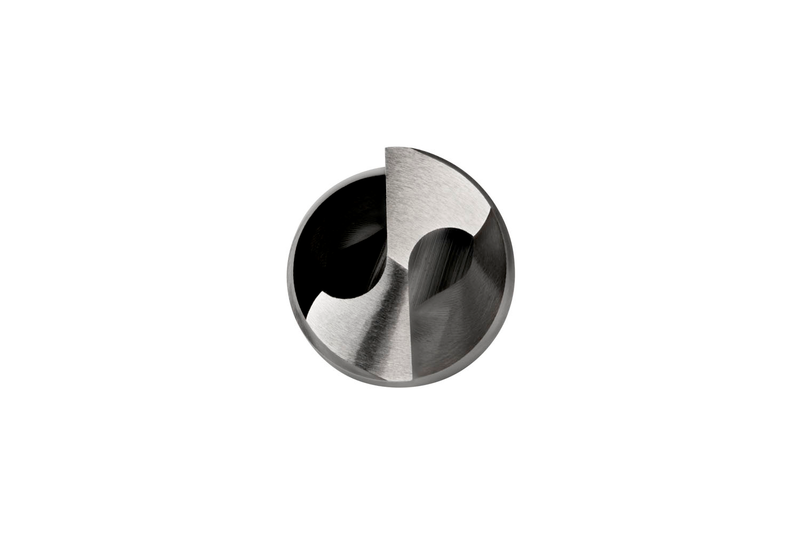

Foret extra-long à queue conique, diamètre 19 mm, longueur totale 465 mm et longueur de goujure 310 mm selon la norme DIN 1870 (2) avec angle de pointe 130°, HSS avec finition brillante + revenu à la vapeur, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95219.0
GradeLumineux/ST
Product Number5972538
Product FamilyA952

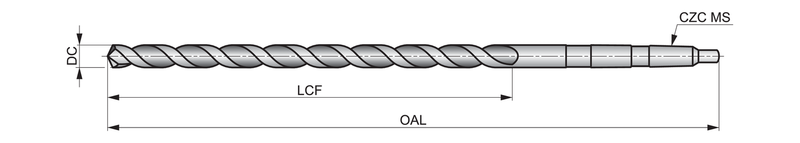

Dimensions
Cutting Diameter — in (DC)0.748"
Cutting Diameter — mm (DC)19.0 mm
Overall Length — in (OAL)18.3071"
Overall Length — mm (OAL)465.0 mm
Flute Length — in (LCF)12.2047"
Flute Length — mm (LCF)310.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420041
EAN7320760420041
File Type Download
A95219.0 — 3D Model STP Download
A95219.0 — Line Drawing PDF Download
