A95220.0
A95220.0
A95220.0
A95220.0

A95220.0

UGC DOR5972560
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$402.71 CAD - $402.71 CAD
$402.71 CAD
$402.71 CAD - $402.71 CAD
$402.71 CAD

Vendu en lots de : 1

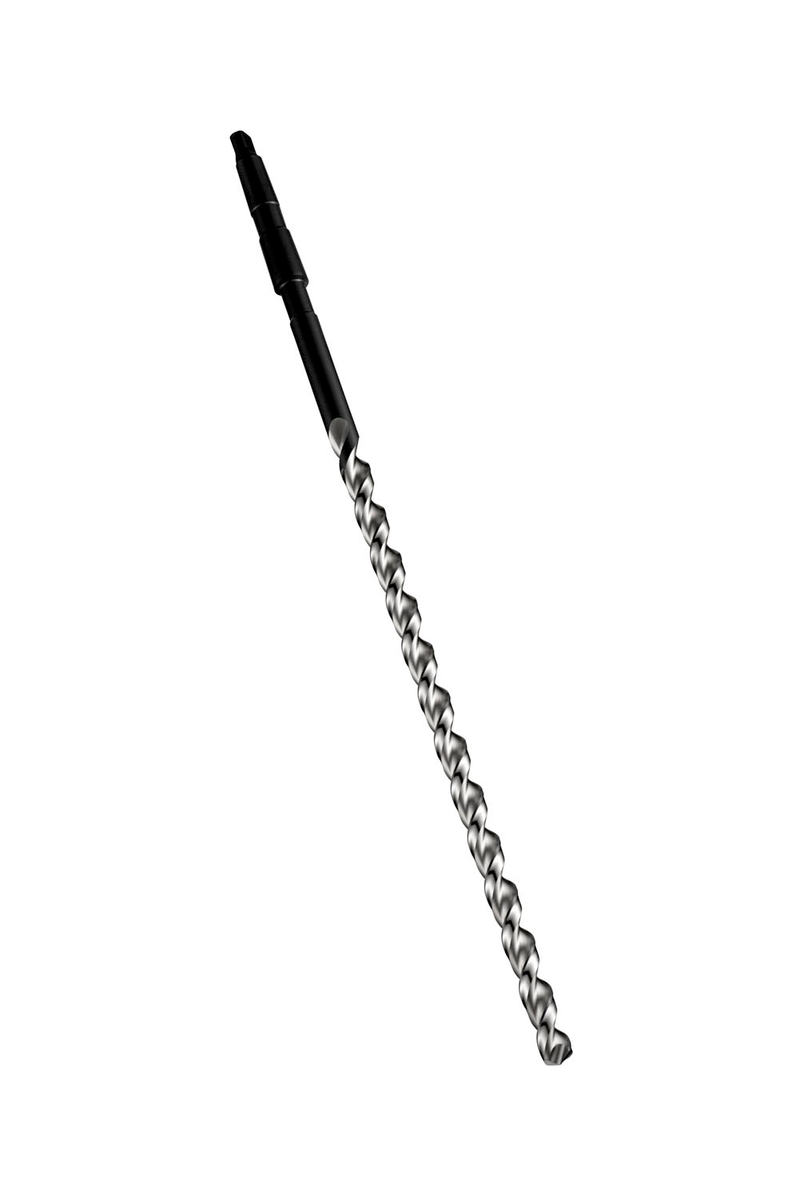

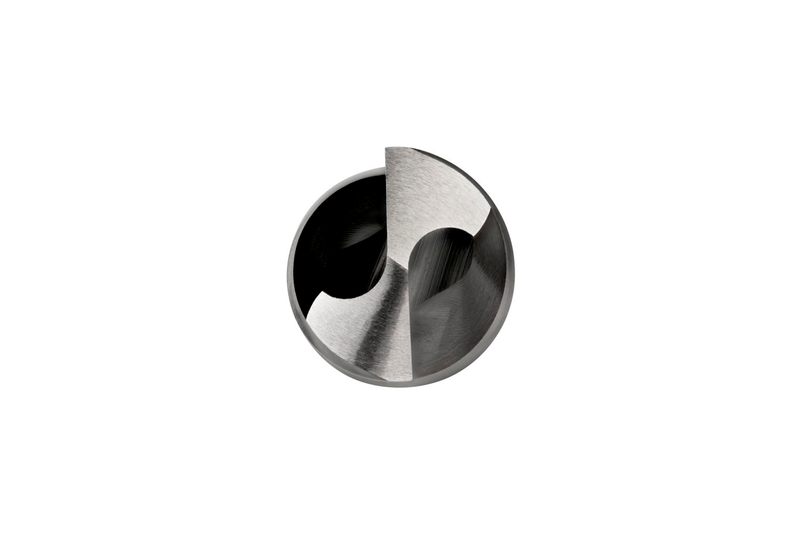

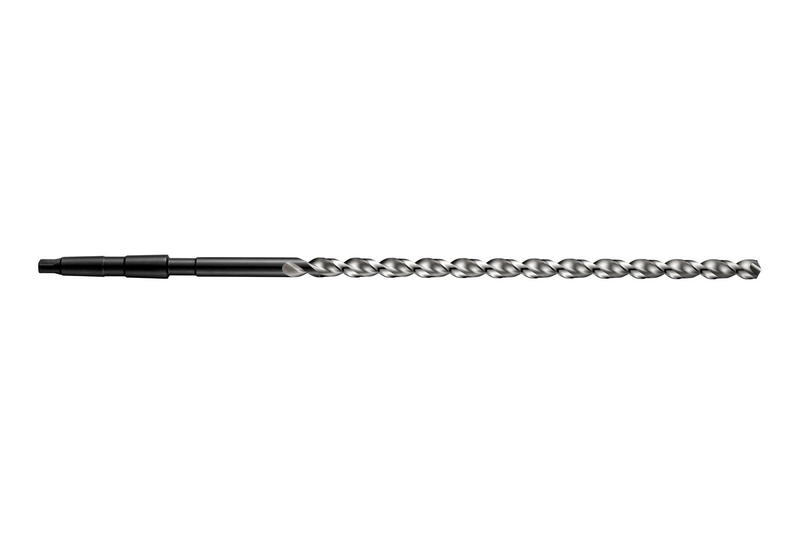

Foret extra-long à queue conique, diamètre 20mm, longueur totale 490mm et longueur utile 325mm selon la norme DIN 1870 (2) avec angle de pointe de 130°, HSS finition brillante + revenu vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95220.0
GradeLumineux/CT
Product Number5972560
Product FamilyA952

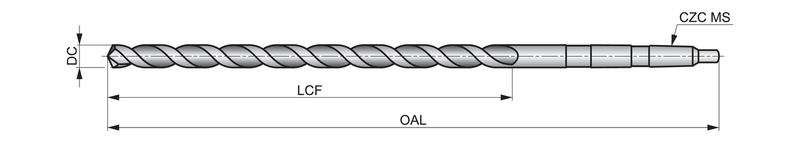

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)19.2913"
Overall Length — mm (OAL)490.0 mm
Flute Length — in (LCF)12.7953"
Flute Length — mm (LCF)325.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420065
EAN7320760420065
File Type Download
A95220.0 — 3D Model STP Download
A95220.0 — Line Drawing PDF Download
