UGC DOR5972563
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$744.81 CAD - $744.81 CAD
$744.81 CAD
$744.81 CAD - $744.81 CAD
$744.81 CAD

Vendu en lots de : 1

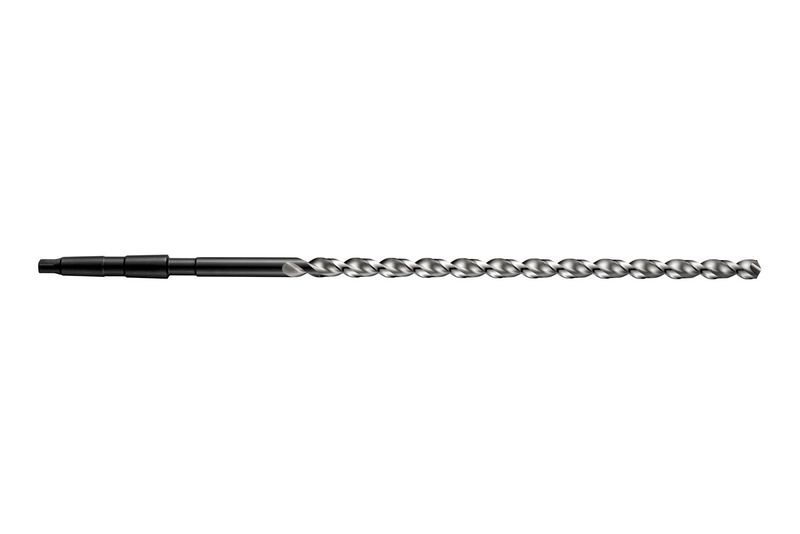

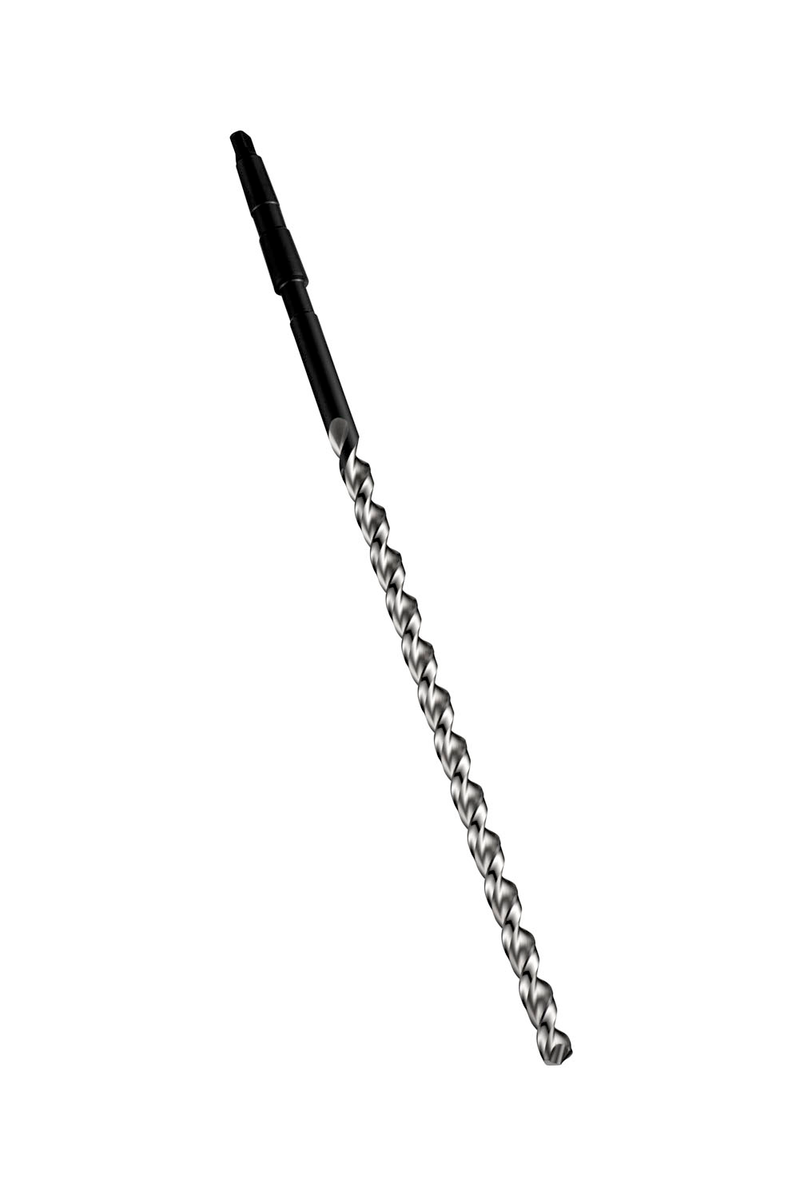

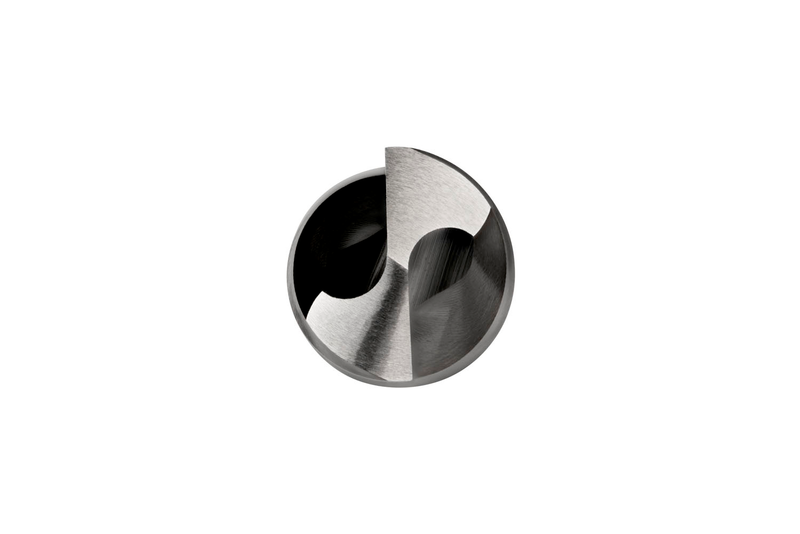

Foret extra-long à queue conique, diamètre 29mm, longueur totale 580mm et longueur utile 385mm selon la norme DIN 1870 (2) avec angle de pointe 130°, HSS brillant + revenu vapeur, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95229.0
GradeLumineux/ST
Product Number5972563
Product FamilyA952

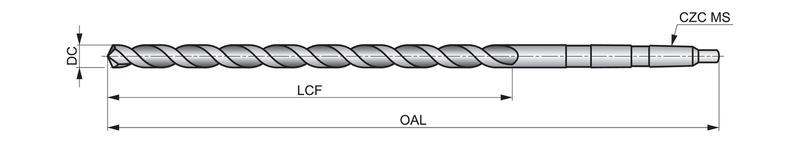

Dimensions
Cutting Diameter — in (DC)1.1417"
Cutting Diameter — mm (DC)29.0 mm
Overall Length — in (OAL)22.8346"
Overall Length — mm (OAL)580.0 mm
Flute Length — in (LCF)15.1575"
Flute Length — mm (LCF)385.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420157
EAN7320760420157
File Type Download
A95229.0 — 3D Model STP Download
A95229.0 — Line Drawing PDF Download
