UGC DOR5972581
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.93 CAD - $157.93 CAD
$157.93 CAD
$157.93 CAD - $157.93 CAD
$157.93 CAD

Vendu en lots de : 1

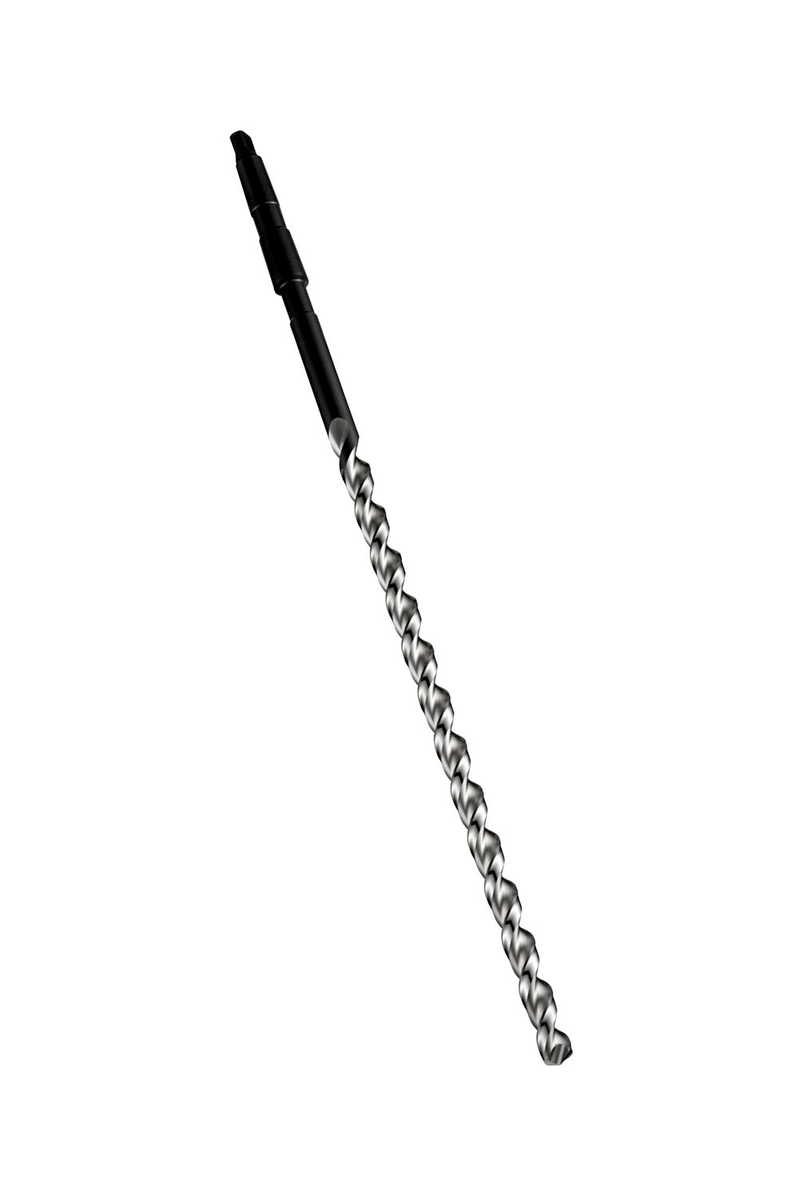

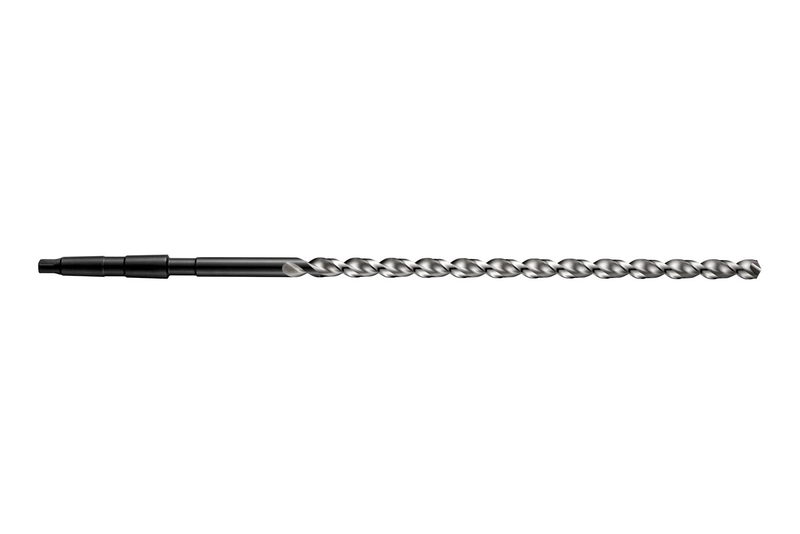

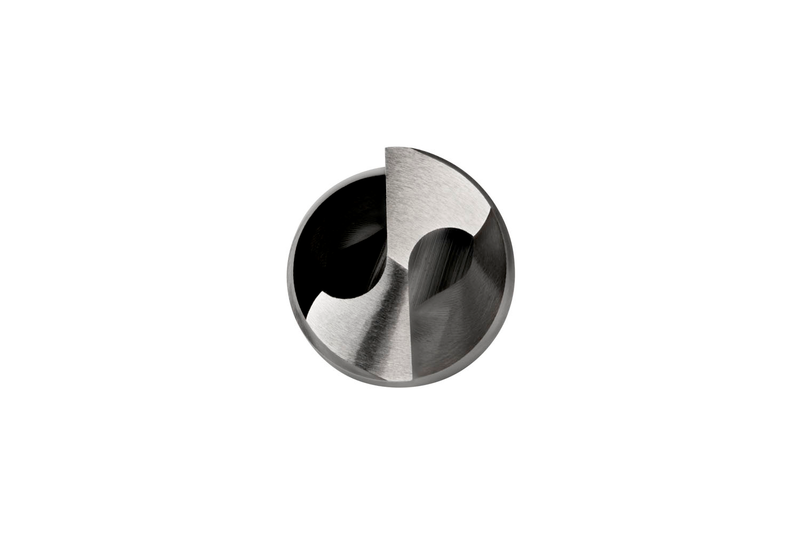

Foret extra-long à queue conique, diamètre 8mm, longueur totale 330mm et longueur utile 210mm selon la norme DIN 1870 (2), angle de pointe 130°, HSS avec finition brillante + trempe à la vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9528.0
GradeClair/CS
Product Number5972581
Product FamilyA952

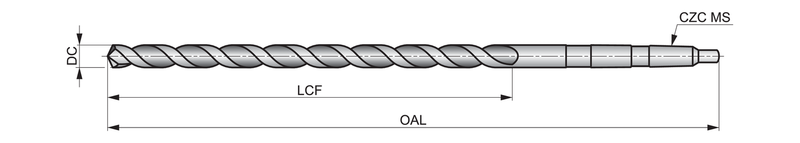

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)12.9921"
Overall Length — mm (OAL)330.0 mm
Flute Length — in (LCF)8.2677"
Flute Length — mm (LCF)210.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number423639
EAN7320760423639
File Type Download
A9528.0 — 3D Model STP Download
A9528.0 — Line Drawing PDF Download
