UGC DOR5972587
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$166.53 CAD - $166.53 CAD
$166.53 CAD
$166.53 CAD - $166.53 CAD
$166.53 CAD

Vendu en lots de : 1

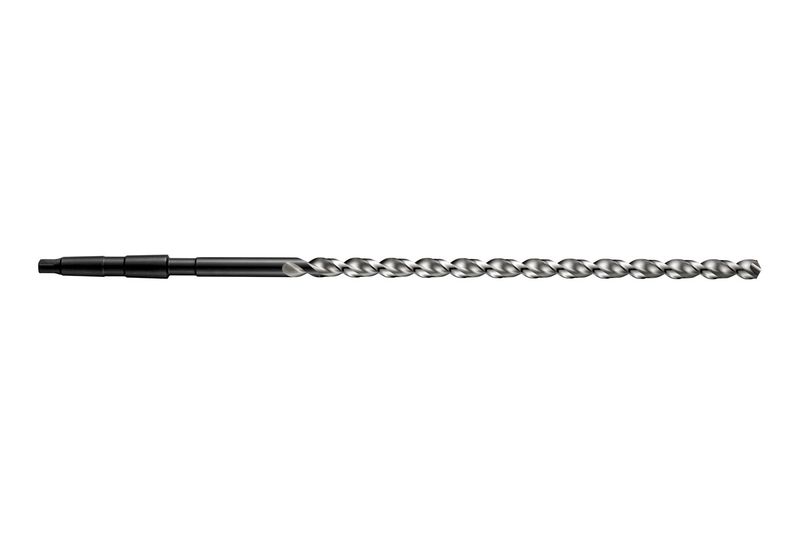

Foret extra-long à queue conique, diamètre 9 mm, longueur totale 345 mm et longueur de coupe 220 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, en acier rapide avec finition brillante + trempée à la vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9529.0
GradeLumineux/ST
Product Number5972587
Product FamilyA952

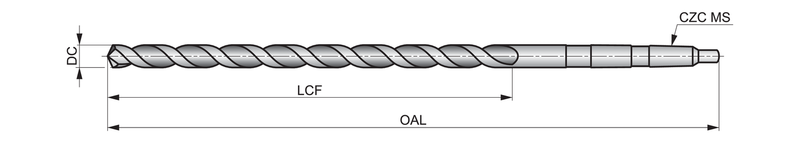

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)13.5827"
Overall Length — mm (OAL)345.0 mm
Flute Length — in (LCF)8.6614"
Flute Length — mm (LCF)220.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number423653
EAN7320760423653
File Type Download
A9529.0 — 3D Model STP Download
A9529.0 — Line Drawing PDF Download
