A97612.0
A97612.0
A97612.0
A97612.0

A97612.0

UGC DOR5972608
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$409.50 CAD - $409.50 CAD
$409.50 CAD
$409.50 CAD - $409.50 CAD
$409.50 CAD

Vendu en lots de : 1

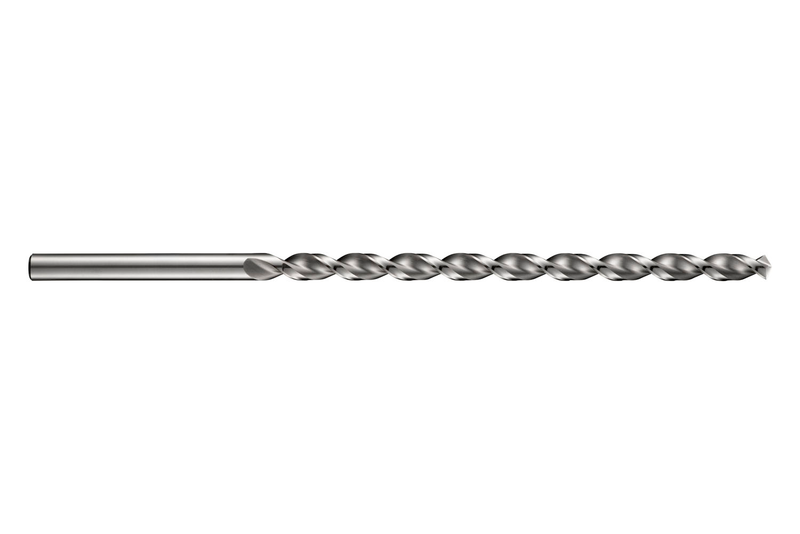

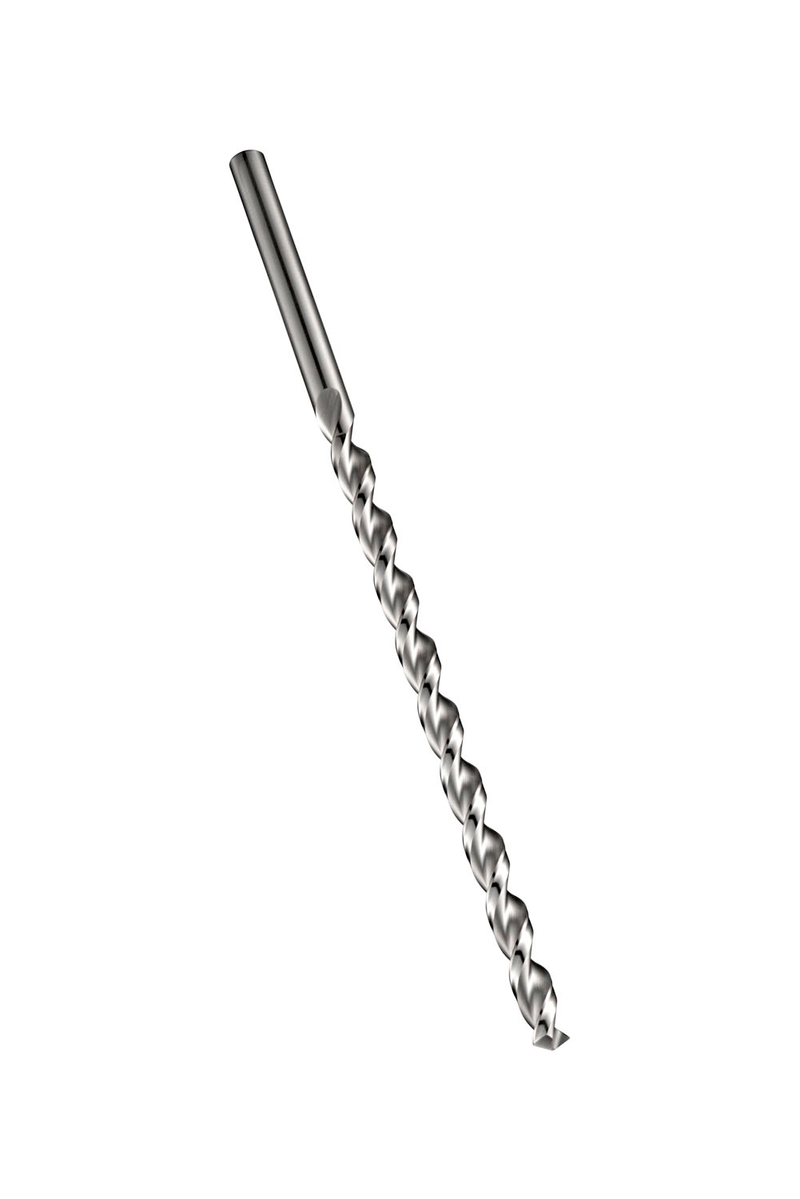

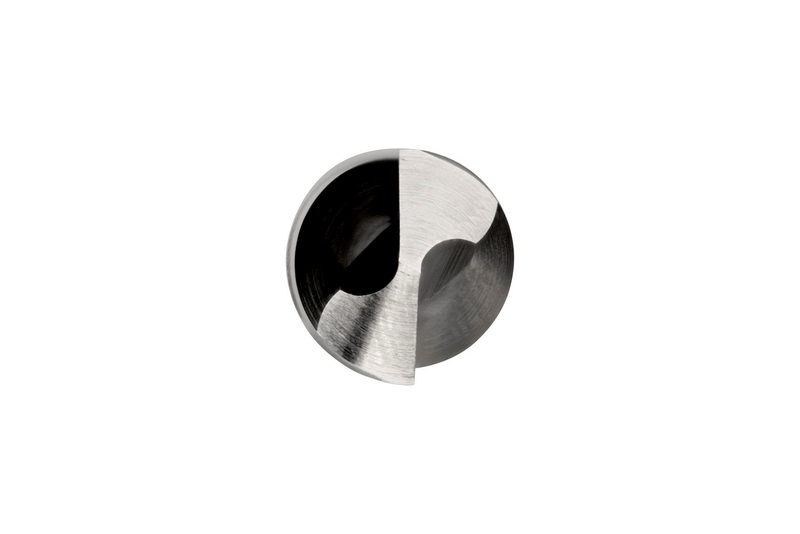

Foret PFX extra-long à queue cylindrique, diamètre 12mm avec une longueur totale de 295mm et une longueur de coupe de 205mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, HSS-E au cobalt avec finition brillante, hélice rapide et hélice parabolique pour un perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97612.0
GradeLumineux
Product Number5972608
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)11.6142"
Overall Length — mm (OAL)295.0 mm
Flute Length — in (LCF)8.0709"
Flute Length — mm (LCF)205.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number347164
EAN7320760347164
File Type Download
A97612.0 — 3D Model STP Download
A97612.0 — Line Drawing PDF Download
