A97612.5
A97612.5
A97612.5
A97612.5

A97612.5

UGC DOR5972610
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$420.64 CAD - $420.64 CAD
$420.64 CAD
$420.64 CAD - $420.64 CAD
$420.64 CAD

Vendu en lots de : 1

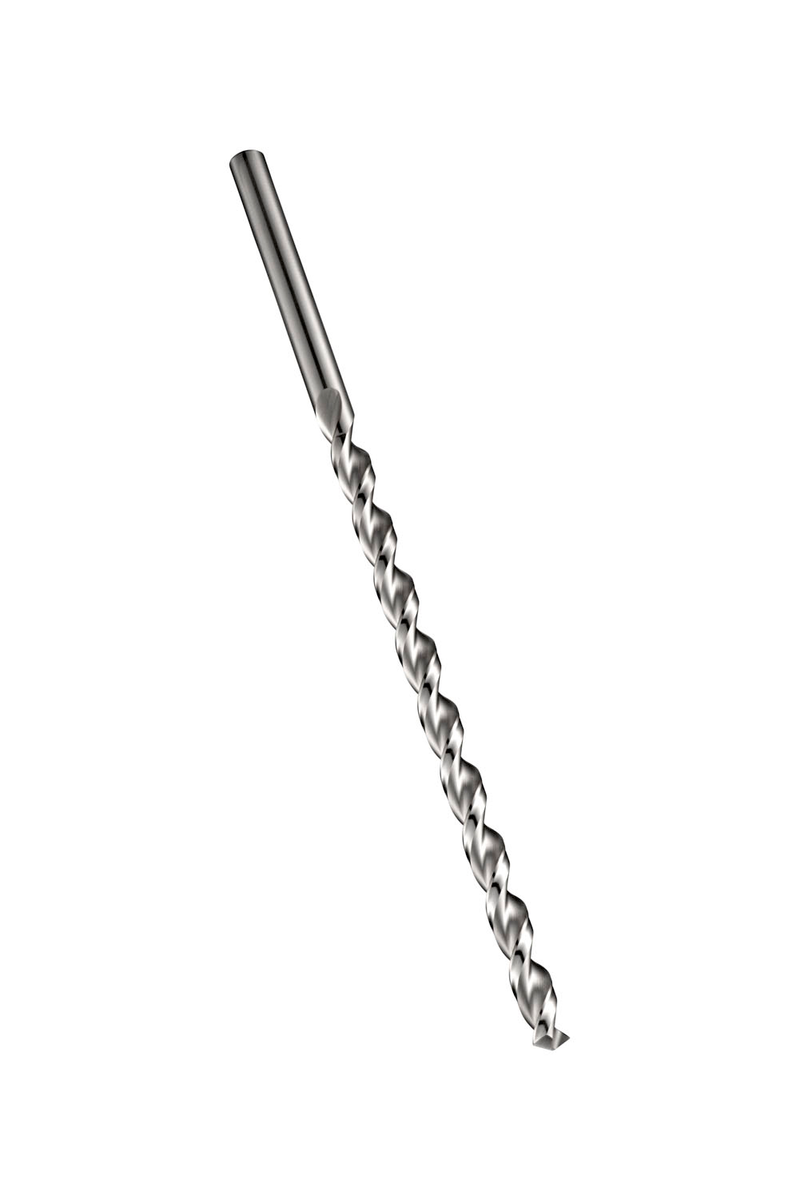

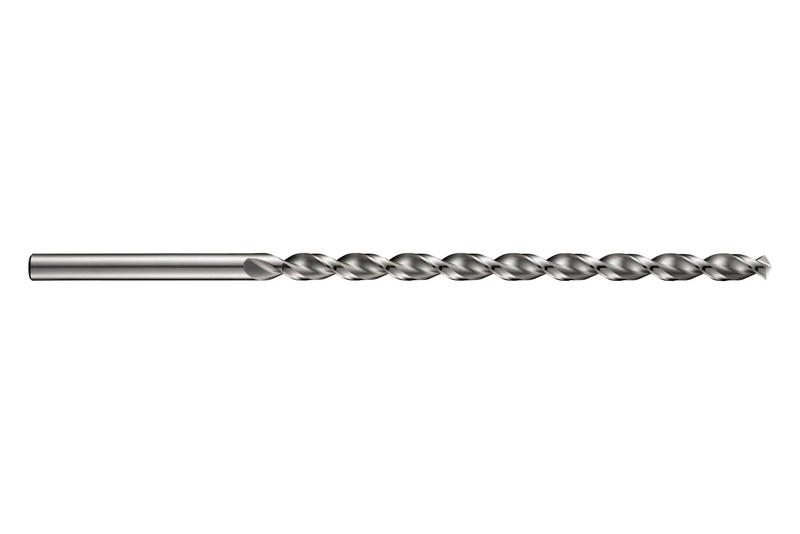

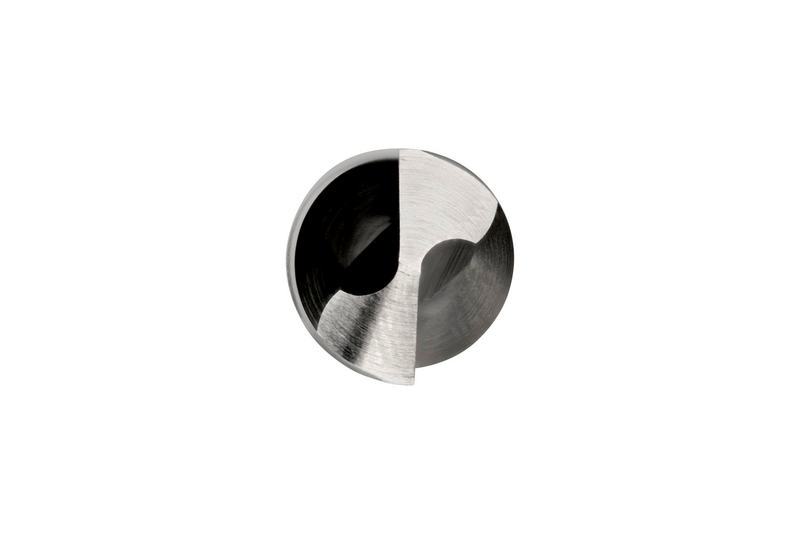

Foret PFX extra-long à queue cylindrique, diamètre 12,5 mm, longueur totale 295 mm et longueur utile 205 mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97612.5
GradeLumineux
Product Number5972610
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)11.6142"
Overall Length — mm (OAL)295.0 mm
Flute Length — in (LCF)8.0709"
Flute Length — mm (LCF)205.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number347171
EAN7320760347171
File Type Download
A97612.5 — 3D Model STP Download
A97612.5 — Line Drawing PDF Download
