UGC DOR5972617
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.91 CAD - $27.91 CAD
$27.91 CAD
$27.91 CAD - $27.91 CAD
$27.91 CAD

Vendu en lots de : 1

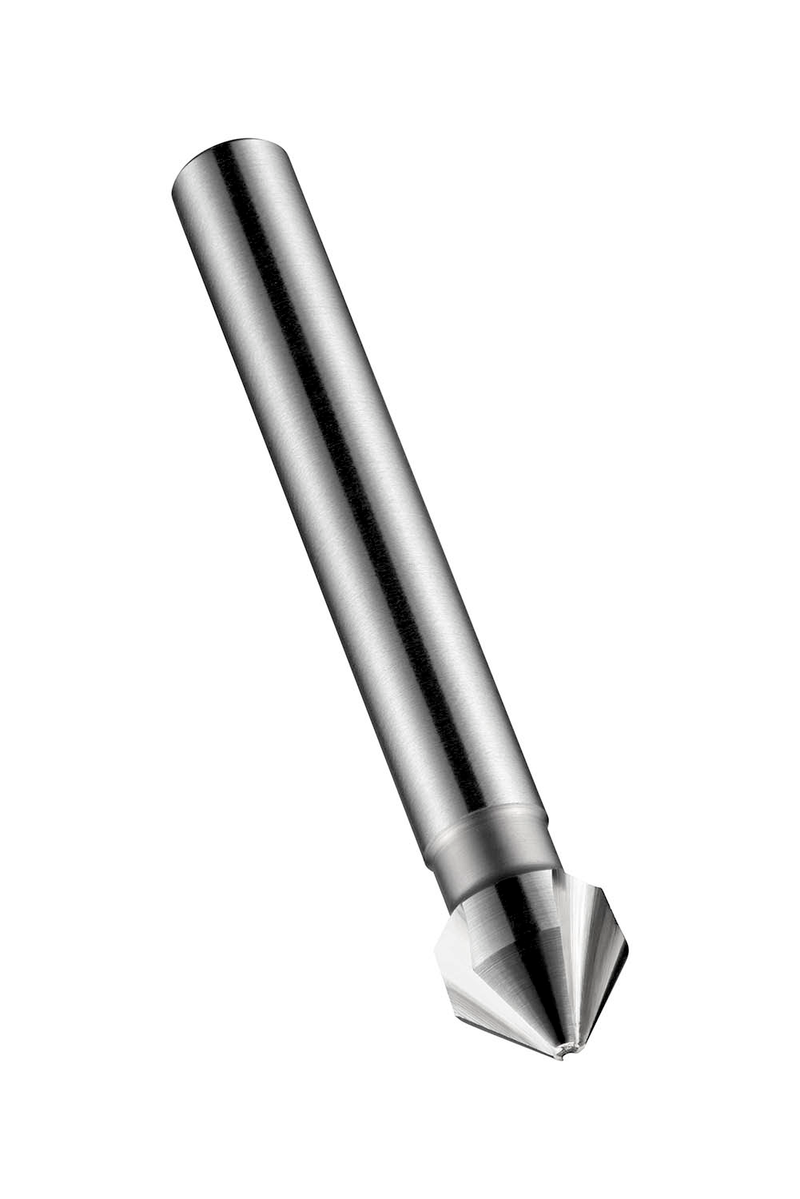

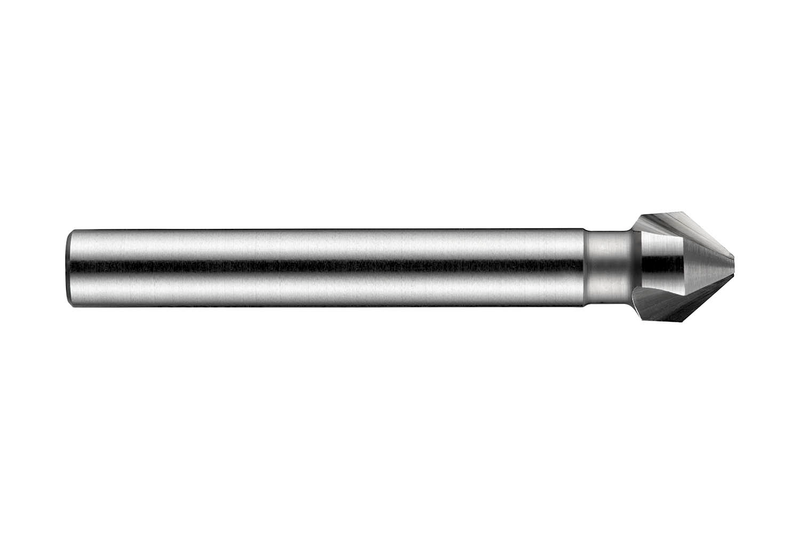

Fraise à chanfreiner 3 coupes, angle de chambrage 82°, diamètre maximum 6,30 mm, longueur totale 45 mm, longueur de tête 5,5 mm et queue cylindrique 5 mm, selon la norme DIN 335 C, pour réaliser un logement conique pour vis à tête fraisée de norme US avec un diamètre de trou minimum de 1,50 mm, HSS avec finition brillante standard pour l'usinage des aciers de décolletage, des aciers au carbone non alliés et alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1546.3
GradeLumineux
Product Number5972617
Product FamilyG154

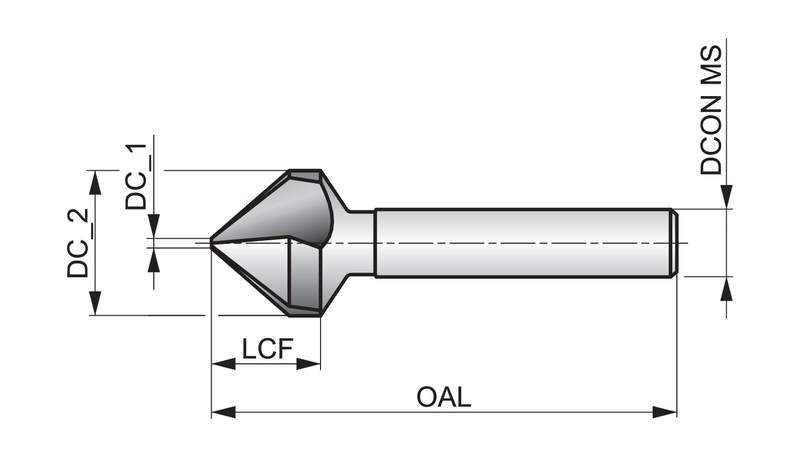

Dimensions
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Flute Length — mm (LCF)5.5 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm

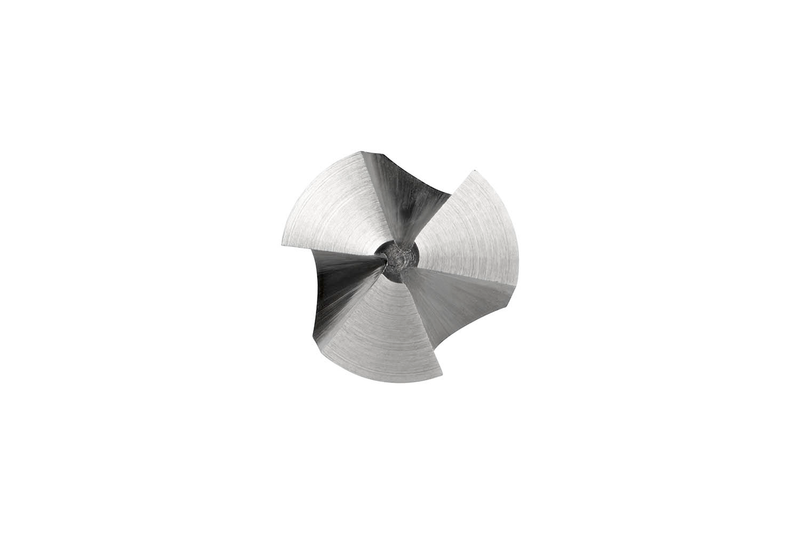

Number of Flutes (NOF)3
Drill Point Angle (SIG)82°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number149348
EAN7320760149348
File Type Download
G1546.3 — Line Drawing PDF Download
