A9762.0X125
A9762.0X125
A9762.0X125
A9762.0X125

A9762.0X125

UGC DOR5972618
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.99 CAD - $50.99 CAD
$50.99 CAD
$50.99 CAD - $50.99 CAD
$50.99 CAD

Vendu en lots de : 1

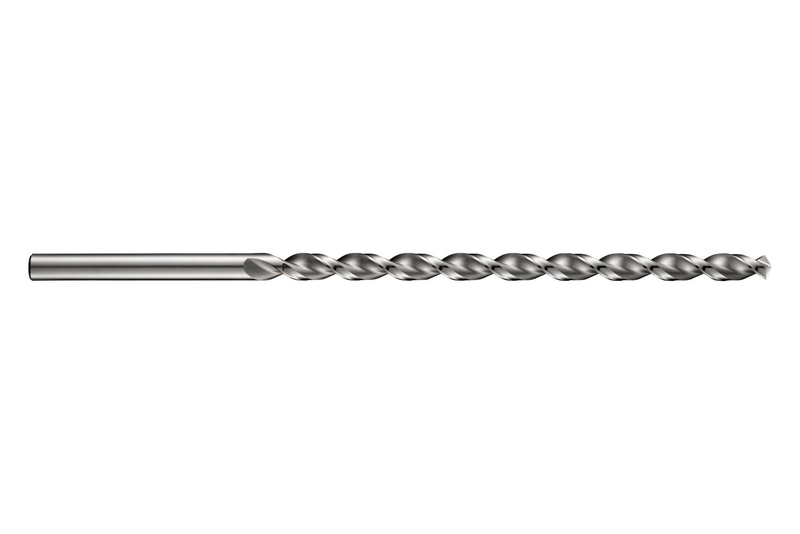

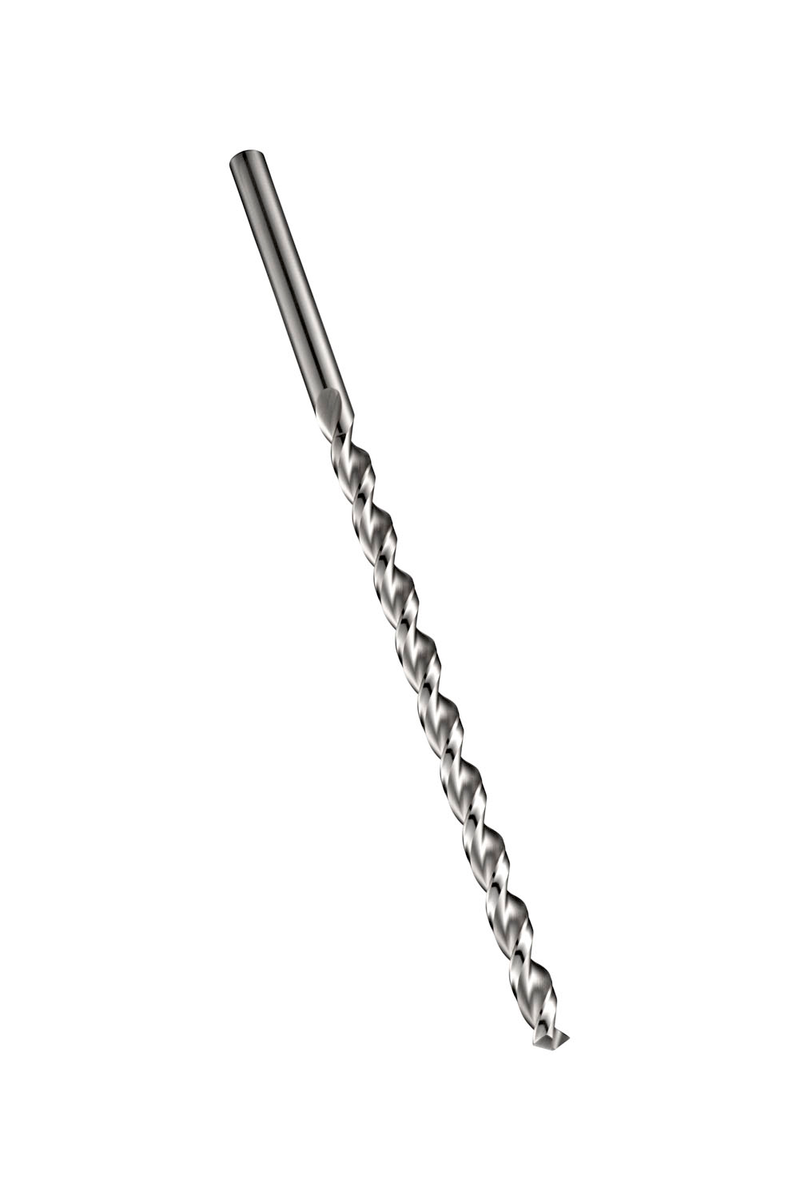

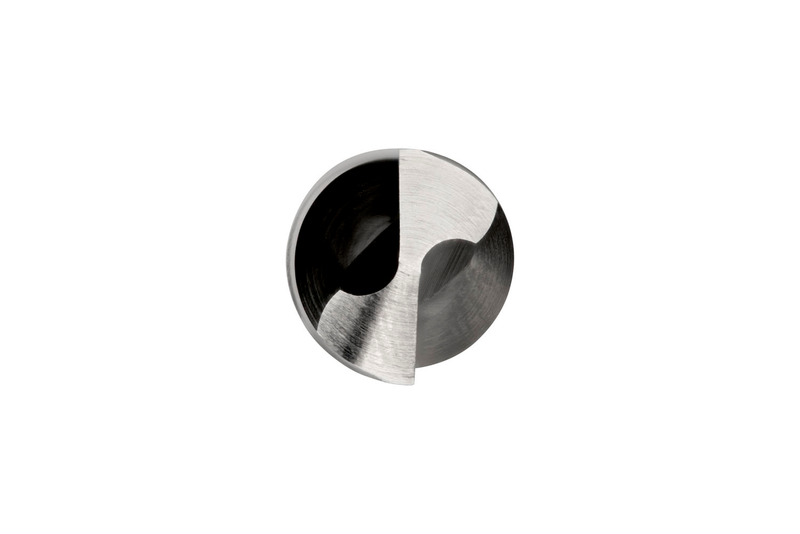

Foret PFX extra-long à queue cylindrique, diamètre 2 mm, longueur totale 125 mm, longueur utile 85 mm, conforme à la norme DIN 1869 / 1, angle de pointe 130°, en HSS-E cobalté, finition brillante, hélice rapide et âme parabolique pour perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9762.0X125
GradeLumineux
Product Number5972618
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.3465"
Flute Length — mm (LCF)85.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number148501
EAN7320760148501
File Type Download
A9762.0X125 — 3D Model STP Download
A9762.0X125 — Line Drawing PDF Download
