A9762.8X150
A9762.8X150
A9762.8X150
A9762.8X150

A9762.8X150

UGC DOR5972654
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.34 CAD - $72.34 CAD
$72.34 CAD
$72.34 CAD - $72.34 CAD
$72.34 CAD

Vendu en lots de : 1

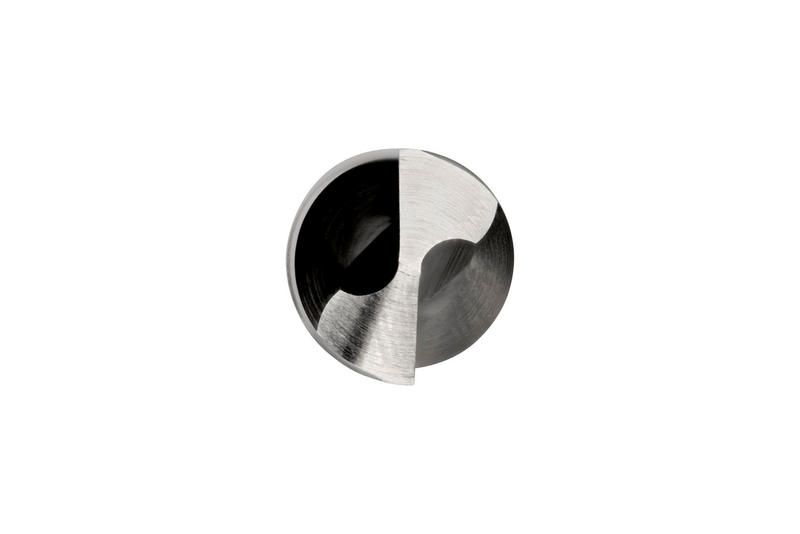

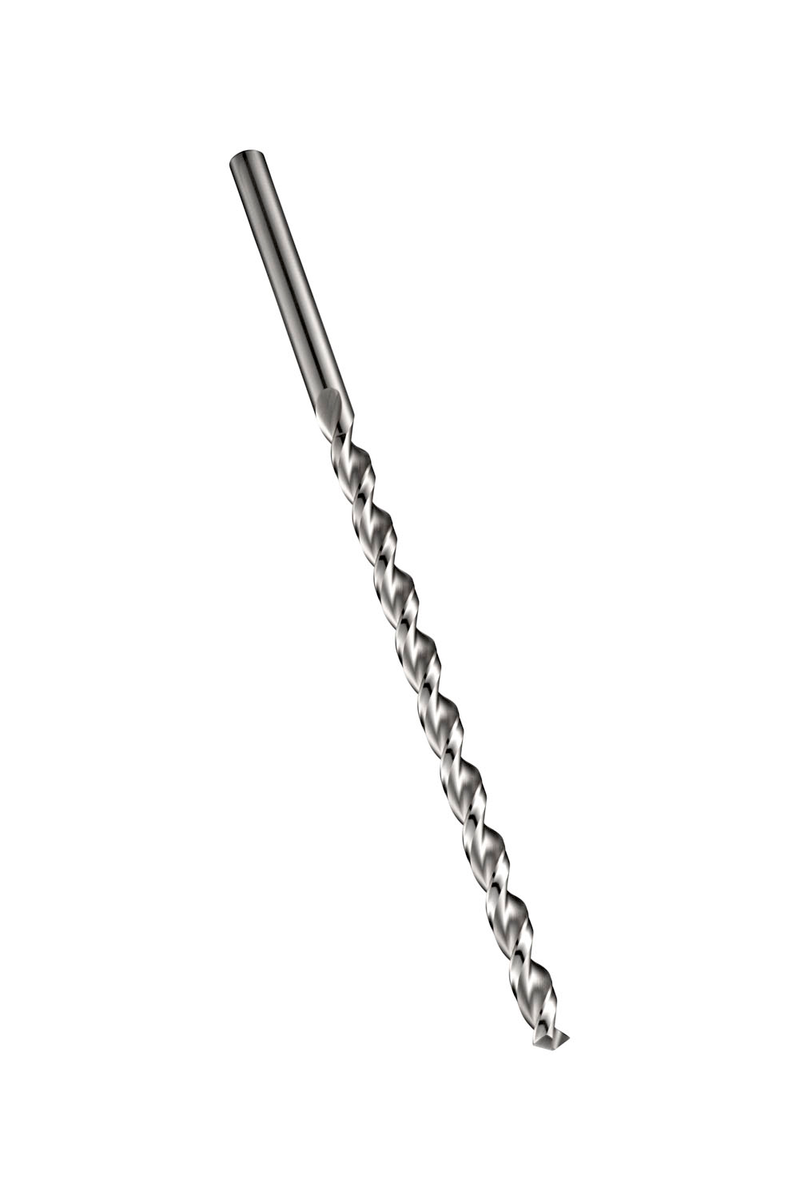

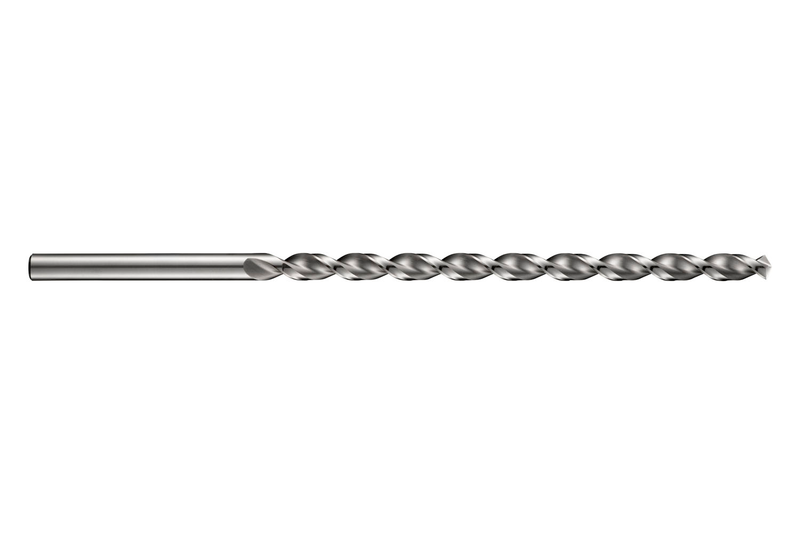

Foret PFX extra-long avec queue cylindrique, diamètre 2,8 mm avec une longueur totale de 150 mm et une longueur de coupe de 100 mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, HSS-E au cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9762.8X150
GradeLumineux
Product Number5972654
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.1102"
Cutting Diameter — mm (DC)2.8 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Flute Length — in (LCF)3.937"
Flute Length — mm (LCF)100.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number279762
EAN7320760279762
File Type Download
A9762.8X150 — 3D Model STP Download
A9762.8X150 — Line Drawing PDF Download
