A9763.1X155
A9763.1X155
A9763.1X155
A9763.1X155

A9763.1X155

UGC DOR5972666
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.09 CAD - $73.09 CAD
$73.09 CAD
$73.09 CAD - $73.09 CAD
$73.09 CAD

Vendu en lots de : 1

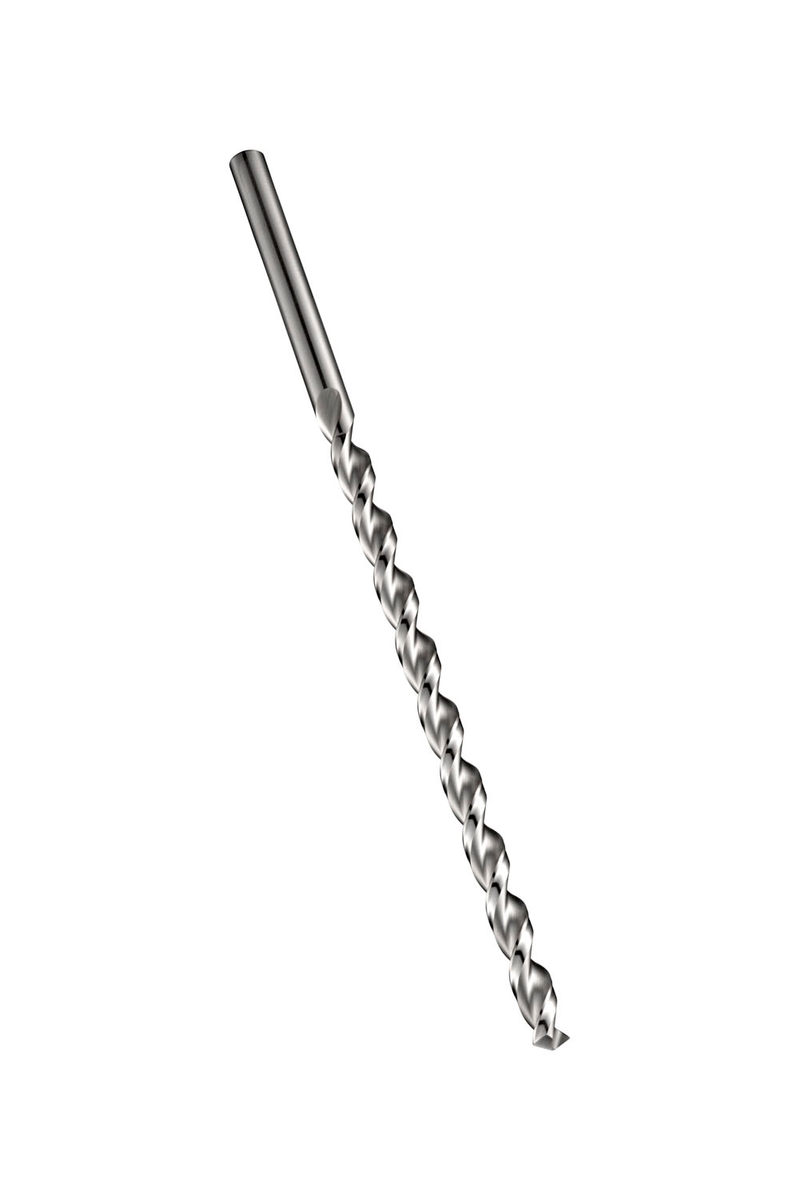

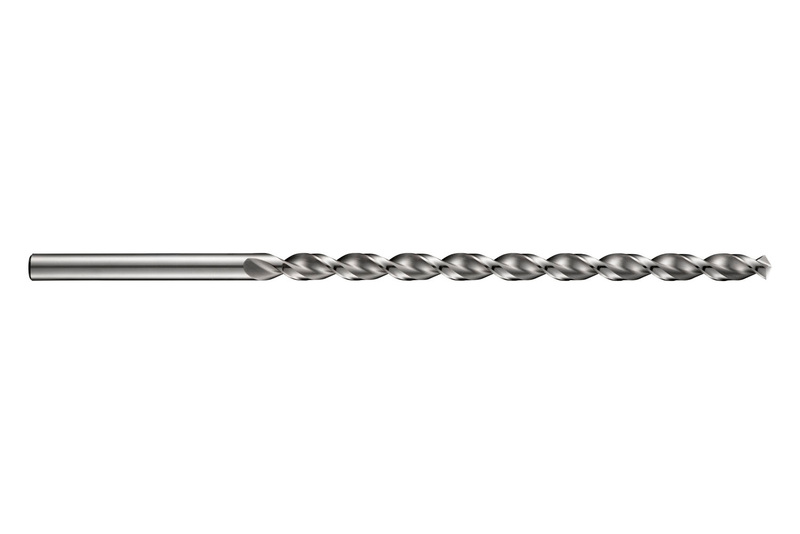

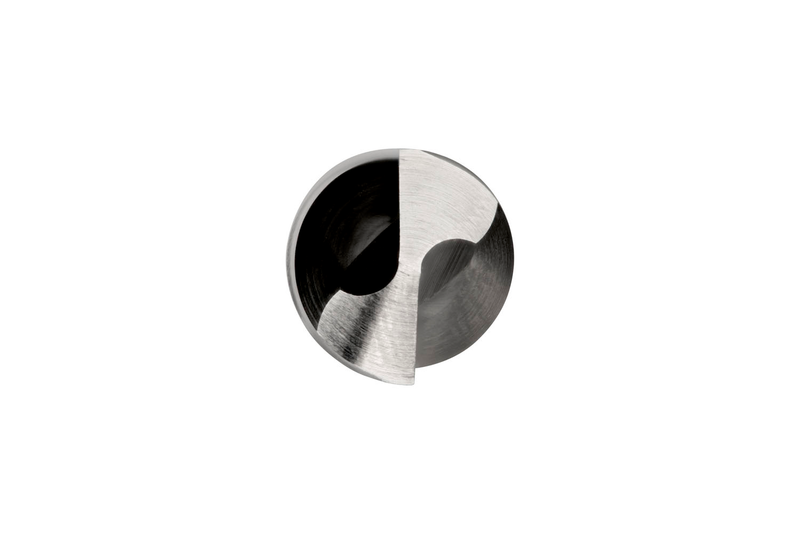

Foret PFX de très longue longueur avec queue cylindrique, diamètre de 3,1 mm avec une longueur totale de 155 mm et une longueur de coupe de 105 mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9763.1X155
GradeLumineux
Product Number5972666
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.122"
Cutting Diameter — mm (DC)3.1 mm
Overall Length — in (OAL)6.1024"
Overall Length — mm (OAL)155.0 mm
Flute Length — in (LCF)4.1339"
Flute Length — mm (LCF)105.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.122"
Connection Dia. — mm (DCON)3.1 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number279786
EAN7320760279786
File Type Download
A9763.1X155 — 3D Model STP Download
A9763.1X155 — Line Drawing PDF Download
