A95225.0
A95225.0
A95225.0
A95225.0

A95225.0

UGC DOR5972690
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$574.49 CAD - $574.49 CAD
$574.49 CAD
$574.49 CAD - $574.49 CAD
$574.49 CAD

Vendu en lots de : 1

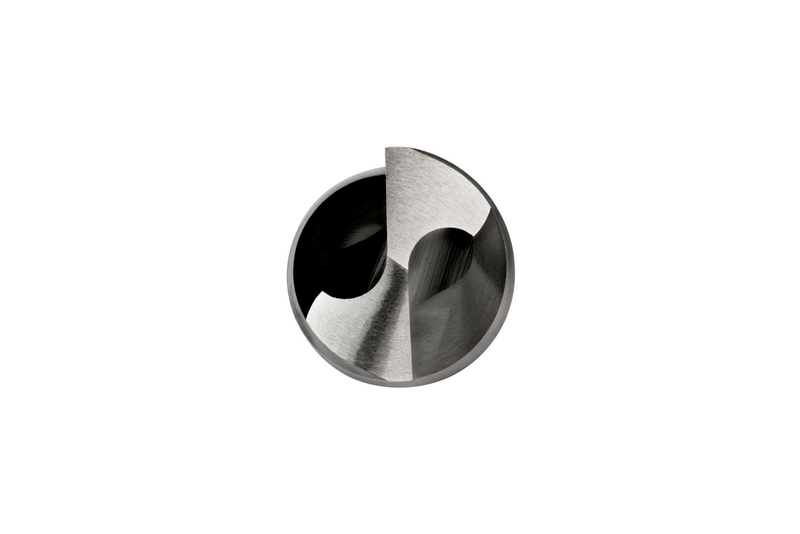

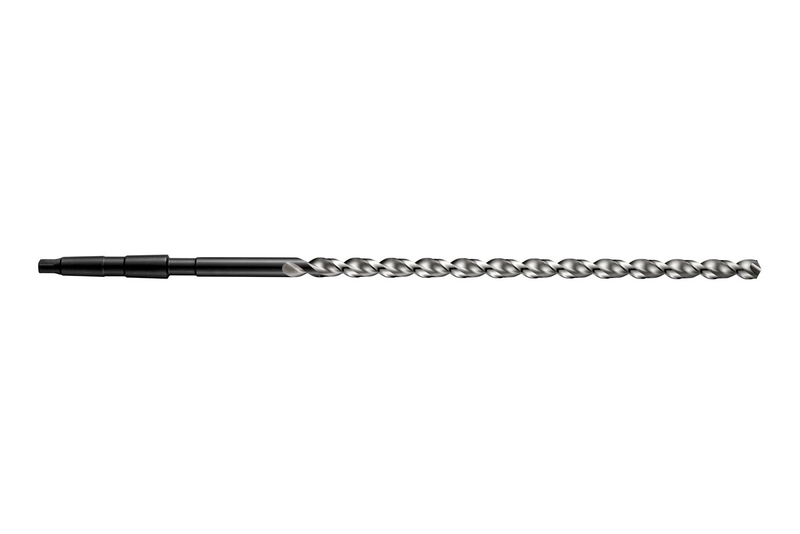

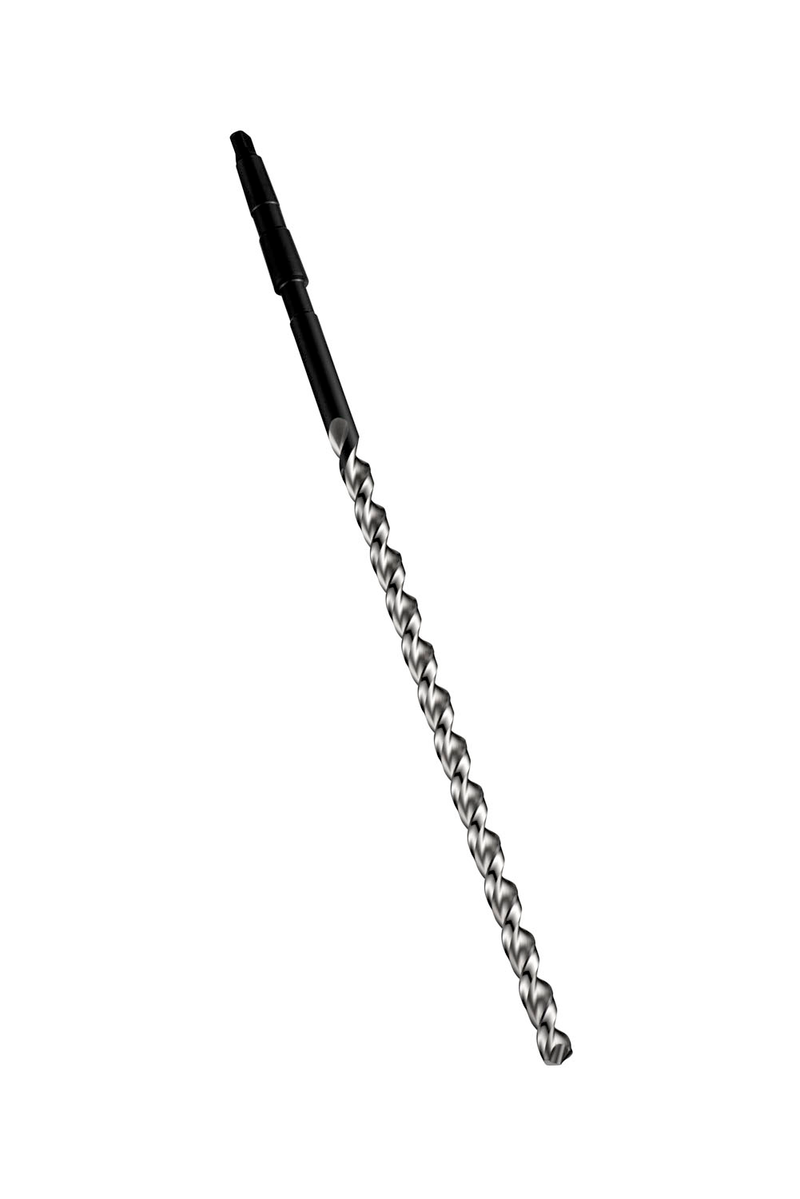

Foret extra-long à queue conique, diamètre 25 mm, longueur totale 555 mm et longueur utile 365 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, en HSS avec finition brillante + revenu vapeur, spirale rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95225.0
GradeLumineux/CT
Product Number5972690
Product FamilyA952

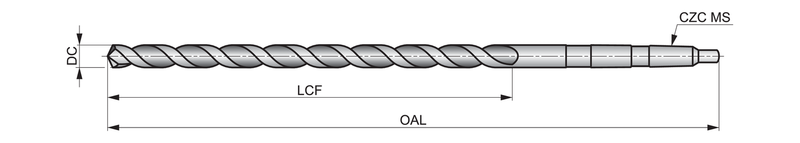

Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)21.8504"
Overall Length — mm (OAL)555.0 mm
Flute Length — in (LCF)14.3701"
Flute Length — mm (LCF)365.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420119
EAN7320760420119
File Type Download
A95225.0 — 3D Model STP Download
A95225.0 — Line Drawing PDF Download
